1693829 - Simplicity 38" Zero-Turn Mower, 14hp Electrical Group - 14HP & 16HP Models Parts Diagram

38" Zero-Turn Mower, 14hp

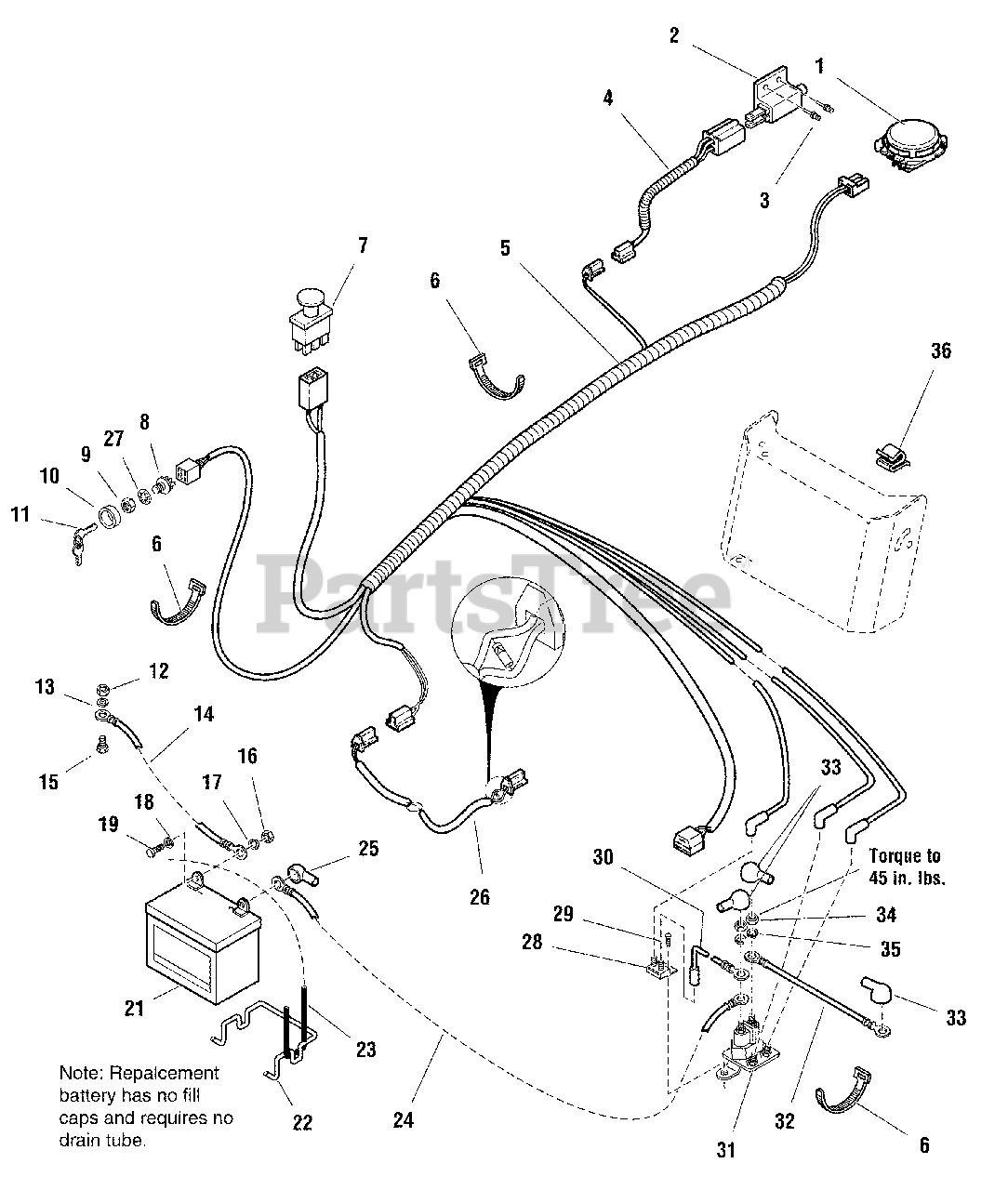

Electrical Group - 14HP & 16HP Models Parts Diagram

  • Title

1

Simplicity 1718981SM

SWITCH, Seat

$21.99

$

In Stock, only 1 left!

0

2

Simplicity 1717050SM

SWITCH, Neutral Start

$17.99

$

In Stock, Qty 20+

0

3

Simplicity 1675043SM

POP, RIVET

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1718952SM

WIRE ASSEMBLY, Ground

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1718946SM

HARNESS, Wiring

$

$

Not available

6

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

7

Simplicity 1722887SM

SWITCH, PTO, Electric Clutch

$33.99

$

In Stock, Qty 20+

0

8

Simplicity 1686734SM

SWITCH, Ignition (6 pole), (Includes Ref. Nos. 9, 10, 11 & 27)

$32.99

$

In Stock, Qty 20+

0

9

Simplicity 1717549SM

NUT, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1717550SM

COVER, Keyswitch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

11

Simplicity 1717163SM

KEYS (Set of 2 Keys)

$8.99

$

In Stock, Qty 20+

0

12

Simplicity 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1707056SM

CABLE, Battery Ground

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1922586SM

CAPSCREW, Hex Head, 3/8-16 x 5/8

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

21

Simplicity 1685215SM

BATTERY

$

$

Not available

22

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

23

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

24

Simplicity 1703851SM

CABLE, Battery to Solenoid

$39.99

$

Usually ships in 2-12 days

0

25

Simplicity 1709086SM

BOOT, Insulator
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 10

0

26

Simplicity 1724874SM

WIRE ASSEMBLY, Clutch

$20.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

31

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

32

Simplicity 1709088SM

CABLE, Solenoid to Starter

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

34

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1715956SM

CLIP

$4.99

$

Usually ships in 2-12 days

0
