1693829 - Simplicity 38" Zero-Turn Mower, 14hp 38" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

38" Zero-Turn Mower, 14hp

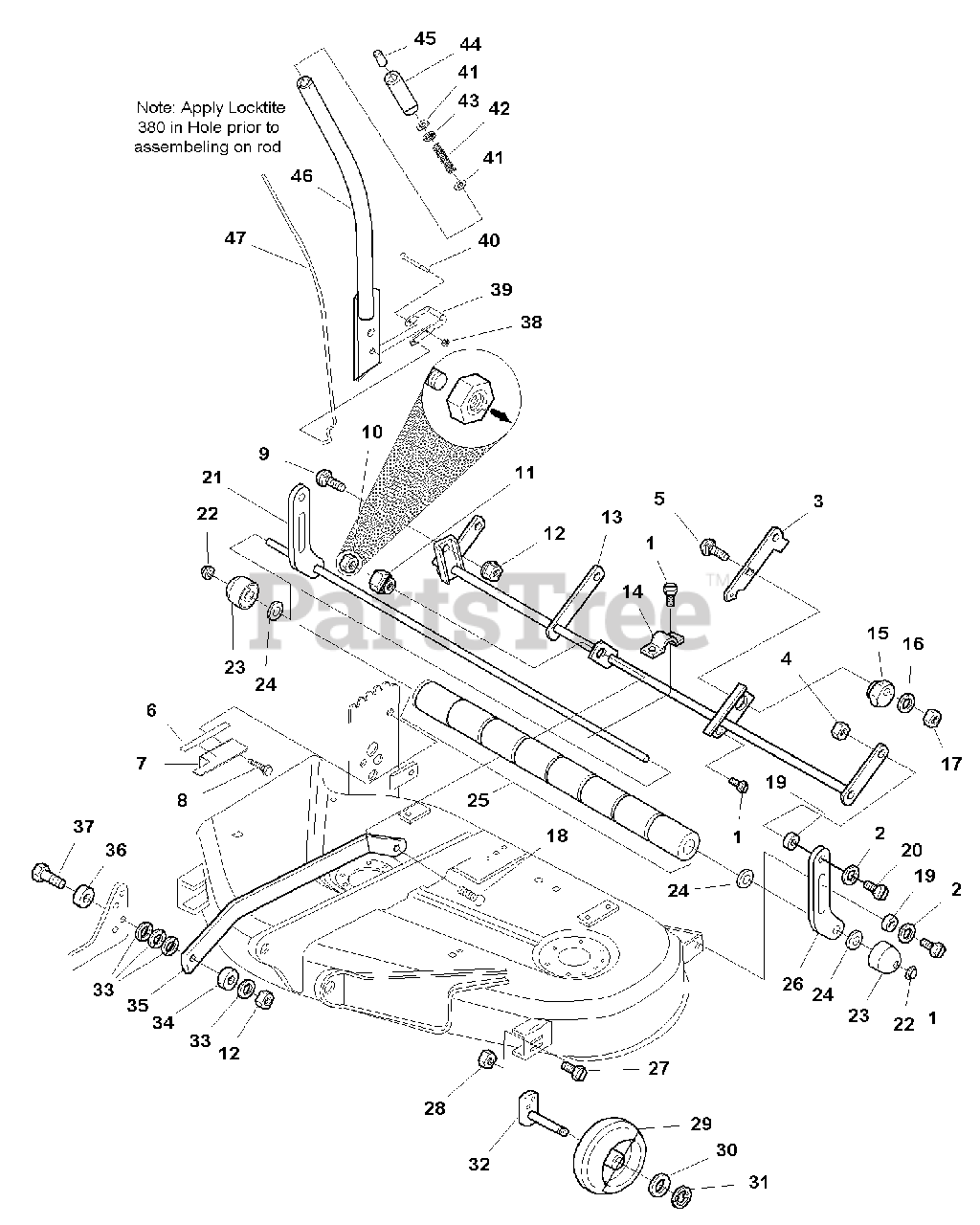

38" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 1664847SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

3

Simplicity 1717670SM

ARM ASSEMBLY
(Superseded to 1717670ASM)

$27.99

$

Usually ships in 2-12 days

0

4

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

6

Simplicity 1720919SM

DECAL, Height of Cut

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721635A

BRACKET, Decal
(Superseded to 1721635ASM)

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 2860681SM

* NUT, Hex Lock, Alum Insert, 3/8

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 17

0

12

Simplicity 1919439SM

NUT, Hex Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1716030SM

ARM ASSEMBLY, Rocker

$

$

Not available

14

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1714879SM

ECCENTRIC

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 2860643SM

NUT, Hex, Flange Collar Lock, 5/16-18

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 3 left!

0

20

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

21

Simplicity 1719905ASM

SHAFT ASSEMBLY

$

$

Not available

22

Simplicity 1960520SM

PUSHNUT, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1717675SM

ROLLER, End

$6.99

$

In Stock, Qty 20+

0

24

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

26

Simplicity 1719846ASM

BAR, Roller, Support

$20.99

$

Usually ships in 2-12 days

0

27

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

28

Simplicity 1930642SM

NUT, Flange Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

29

Simplicity 1714760SM

WHEEL, Gauge

$6.49

$

In Stock, Qty 20+

0

30

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2158399SM

E-RING, 1/2
(Superseded to 703976)

$4.49

$

In Stock, Qty 11

0

32

Simplicity 1716020ASM

ARM ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

33

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1716023SM

ARM, Pitch

$11.99

$

Usually ships in 2-12 days

0

36

Simplicity 1715024SM

SPACER

$8.49

$

In Stock, only 1 left!

0

37

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

38

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1720599SM

LATCH

$22.99

$

Usually ships in 2-12 days

0

40

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

41

Simplicity 1918265SM

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

42

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, Qty 5

0

43

Simplicity 1960674SM

PUSH NUT, 1/4" Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1713995SM

GRIP, Lift Lever

$12.99

$

In Stock, only 1 left!

0

45

Simplicity 1723124SM

BUTTON

$5.99

$

In Stock, Qty 20+

0

46

Simplicity 1721620ASM

HANDLE ASSEMBLY

$254.99

$

Usually ships in 2-12 days

0

47

Simplicity 1721634SM

ROD, Latch

$15.99

$

Usually ships in 2-12 days

0
