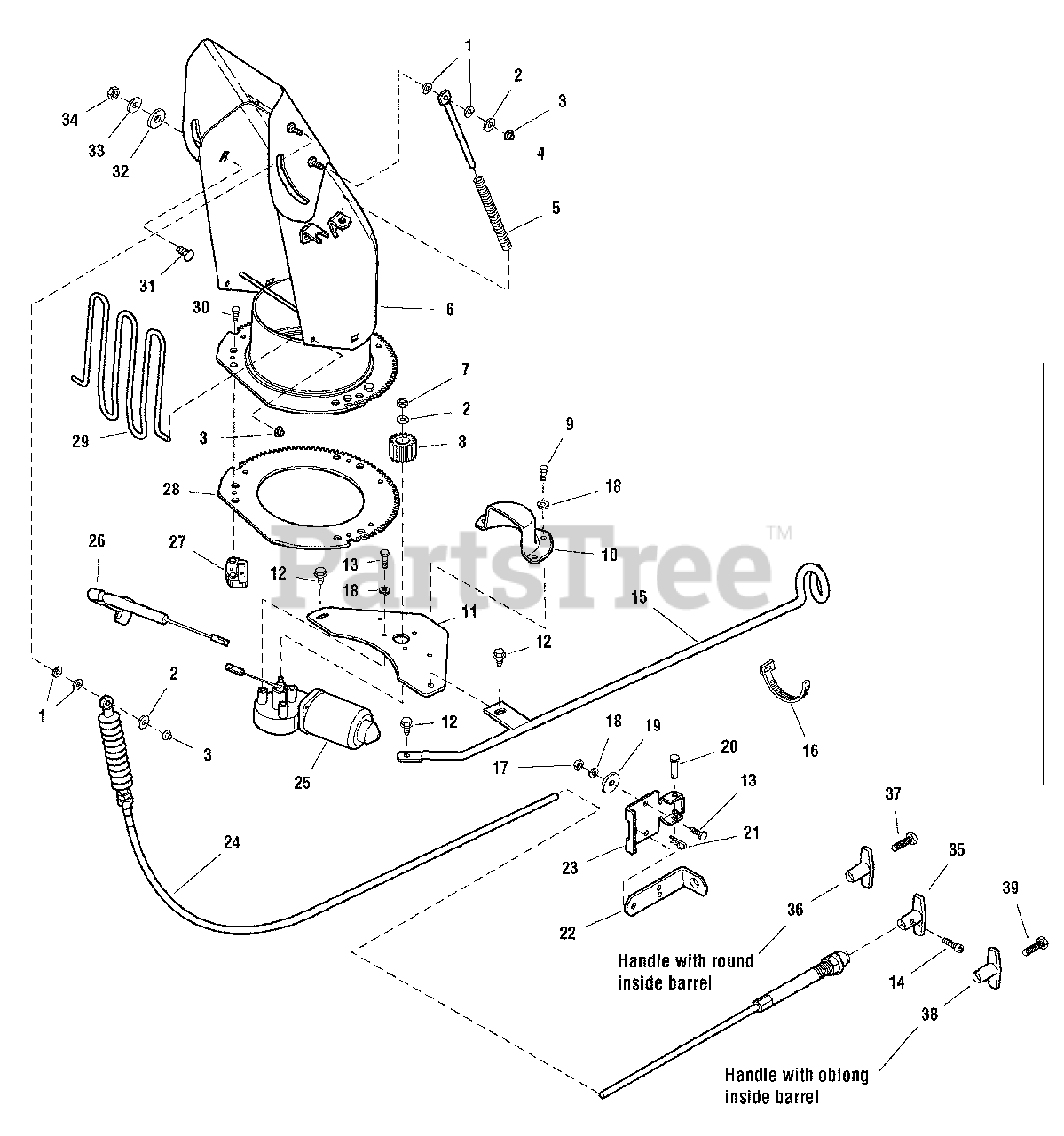

1693762 - Simplicity 47" Snow Thrower Attachment Spout Group Parts Diagram

47" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

1

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

2

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1960126SM

NUT PUSH, Capped, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

4

Simplicity 1611945SM

ROD

$13.99

$

In Stock, only 1 left!

0

5

Simplicity 1611939SM

SPRING, Compression

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 1733907ASM

CHUTE & DEFLECTOR ASSEMBLY
(Superseded to 1736485AYP)

$438.99

$

Usually ships in 2-12 days

0

7

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 1724604SM

PINION, 15 Theeth

$101.99

$

Usually ships in 2-12 days

0

9

Simplicity 1925003SM

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 1717481SM

COVER

$47.99

$

Usually ships in 2-12 days

0

11

Simplicity 1721615A

PLATE, Motor Mounting

$

$

Not available

12

Simplicity 1930601SM

SCREW, Hex Head, Taptite, 1/4-20 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

13

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1930547SM

SCREW, Set Hex, #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1721617ASM

ROD & TAB ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

16

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

17

Simplicity 1920397SM

NUT, Hex, 1/4 x 20 ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1960151SM

WASHER
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 1668344SM

PIN, Flat Head, Drilled, SS
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

22

Simplicity 1726411ASM

BRACKET

$

$

Not available

23

Simplicity 1721590ASM

BRACKET

$27.99

$

In Stock, Qty 5

0

24

Simplicity 1717482SM

CABLE & KNOB ASSEMBLY

$162.99

$

Usually ships in 2-12 days

0

25

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$439.99

$

In Stock, Qty 9

0

26

Simplicity 1717483SM

HARNESS ASSEMBLY

$50.99

$

Usually ships in 2-12 days

0

27

Simplicity 1666613SM

HOLD DOWN

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

29

Simplicity 1704446SM

GUARD & SUPPORT ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960001SM

SCREW, Hex Head,# 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

32

Simplicity 2860210SM

WASHER

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 5

0

34

Simplicity 1919438SM

LOCKNUT, Hex, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

36

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

37

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1719138SM

HANDLE "T"

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960600SM

SCREW, #8c x 3/4

$4.99

$

Usually ships in 2-12 days

0
