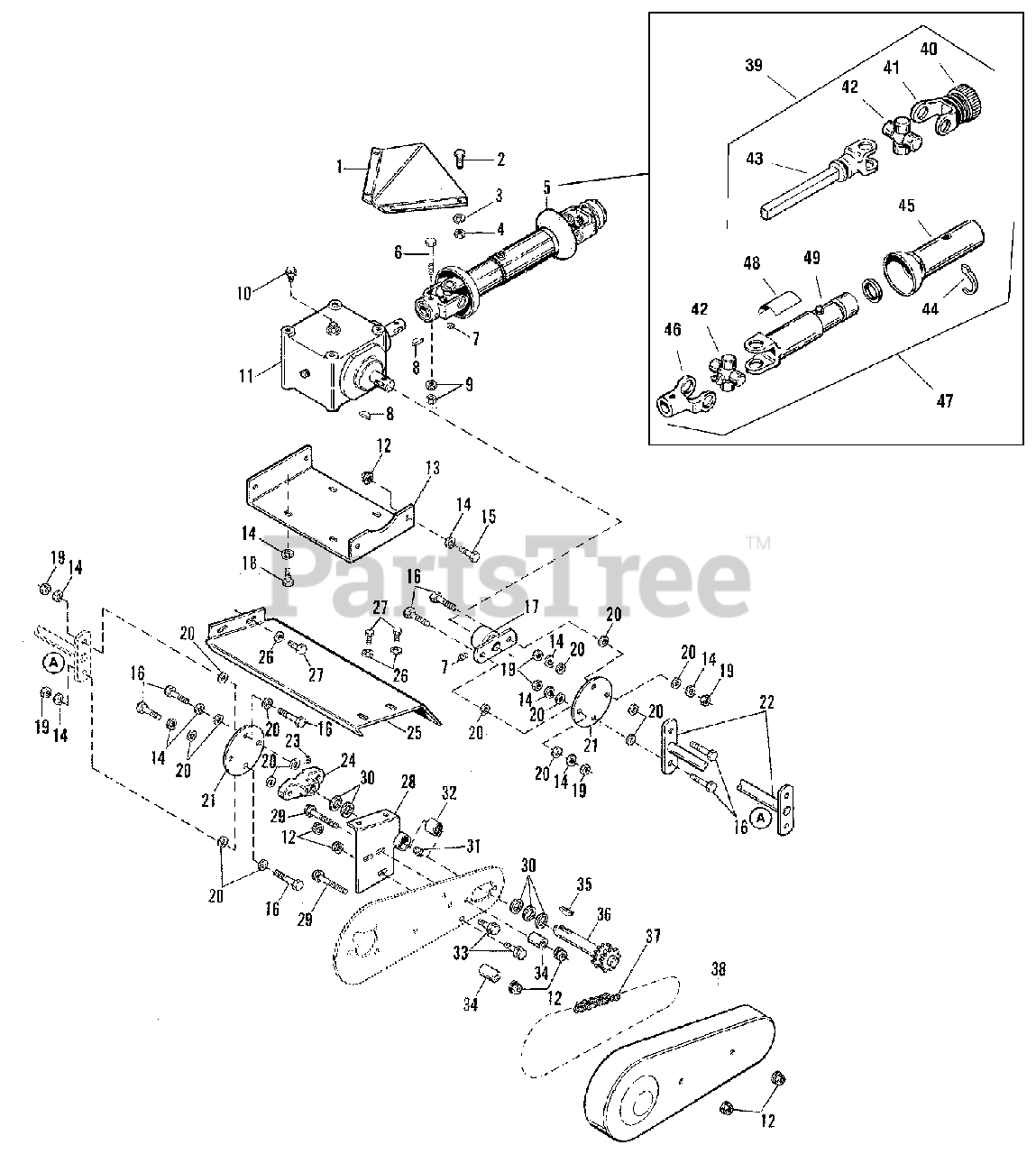

1693761 - Simplicity 46" Snow Thrower Attachment Drive Group Parts Diagram

46" Snow Thrower Attachment

Drive Group Parts Diagram

  • Title

1

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1717484SM

DRIVE SHAFT ASSEMBLY (Incl. Ref. Nos 39-47)

$638.99

$

Usually ships in 2-12 days

0

6

Simplicity 1925688SM

CAPSCREW, Hex Head, 1/4-20 x 3
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930540SM

SETSCREW, Square Head, 5/16-18 x 5/8, G8

$4.49

$

In Stock, Qty 10

0

8

Simplicity 2822138SM

KEY, Hi-Pro #HP708, 1/4

$9.99

$

In Stock, only 2 left!

0

9

Simplicity 1923358SM

NUT, Hex, Lock,1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1716790SM

PLUG, Socket Head

$

$

Not available

11

Simplicity 1717547SM

GEAR BOX ASSEMBLY, Right Angle (Incl. Ref. No. 10) (See Single-Stage Snowthrower, 46 - Gear Box Assembly)

$670.99

$

Usually ships in 2-12 days

0

12

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1676053A

BRACKET,
(Superseded to 1676053ASM)

$15.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

15

Simplicity 1921966SM

CAPSCREW, Hex Head, 3/8-16 x 7/8

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1676561ASM

COUPLER ASSEMBLY, Drive

$

$

Not available

18

Simplicity 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 2157424SM

WASHER, Special, 3/8

$7.49

$

In Stock, Qty 5

0

21

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

22

Simplicity 1717097A

SHAFT ASSEMBLY, Drive
(Superseded to 1717097ASM)

$125.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960475SM

SETSCREW, Hex Socket, 3/8-24 x 3/8

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 2154198ASM

FLANGE, Drive Shaft

$

$

Not available

25

Simplicity 1717100A

COVER ASSEMBLY, Drive Shaft

$

$

Not available

26

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

27

Simplicity 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 1676554SM

SUPPORT ASSEMBLY, w/Bearings (Incl. Ref. No. 32)

$73.99

$

Usually ships in 2-12 days

0

29

Simplicity 1960244SM

CAPSCREW, Hex Head, Whiz Lock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 2168111SM

WASHER, Hardened, Thrust

$6.99

$

Usually ships in 2-12 days

0

31

Simplicity 2821133SM

FITTING, Grease, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1679211SM

BEARING, Needle

$39.99

$

Usually ships in 2-12 days

0

33

Simplicity 1934654SM

CAPSCREW, Hex Head, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

34

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

35

Simplicity 2805123SM

KEY, Woodruff #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

36

Simplicity 1676722SM

SHAFT ASSEMBLY, (Drive, Chain)

$120.99

$

Usually ships in 2-12 days

0

37

Simplicity 1676739SM

CHAIN, Roller, #40 32" 64 Pitch

$62.99

$

Usually ships in 2-12 days

0

38

Simplicity 1676738ASM

GUARD, Chain

$67.99

$

Usually ships in 2-12 days

0

39

Simplicity 1718838SM

JOINT & SHAFT ASSEMBLY, w/guard (Incl Ref. Nos. 40-43)

$426.99

$

Usually ships in 2-12 days

0

40

Simplicity 1718475SM

SPRING LOCK KIT

$46.99

$

Usually ships in 2-12 days

0

41

Simplicity 1709350SM

YOKE ASSEMBLY, Spring-Lock

$

$

Not available

42

Simplicity 1679003SM

CROSS & BEARING KIT

$80.99

$

Usually ships in 2-12 days

0

43

Simplicity 1718837SM

YOKE & SHAFT ASSEMBLY

$136.99

$

Usually ships in 2-12 days

0

44

Simplicity 1709352SM

REPAIR KIT, Nylon

$13.99

$

Usually ships in 2-12 days

0

45

Simplicity 1709355SM

GUARD, Outer

$146.99

$

Usually ships in 2-12 days

0

46

Simplicity 1716877SM

YOKE

$76.99

$

Usually ships in 2-12 days

0

47

Simplicity 1709348SM

JOINT & TUBE ASSEMBLY, w/guard (lncl. Ref. Nos. 42,44-46)

$364.99

$

Usually ships in 2-12 days

0

48

DECAL, Caution Rotating Shaft

$

$

Not available

49

Simplicity 1709348SM

YOKE, TUBE & SLIP SLEEVE

$364.99

$

Usually ships in 2-12 days

0
