1693761 - Simplicity 46" Snow Thrower Attachment Body & Auger Group Parts Diagram

46" Snow Thrower Attachment

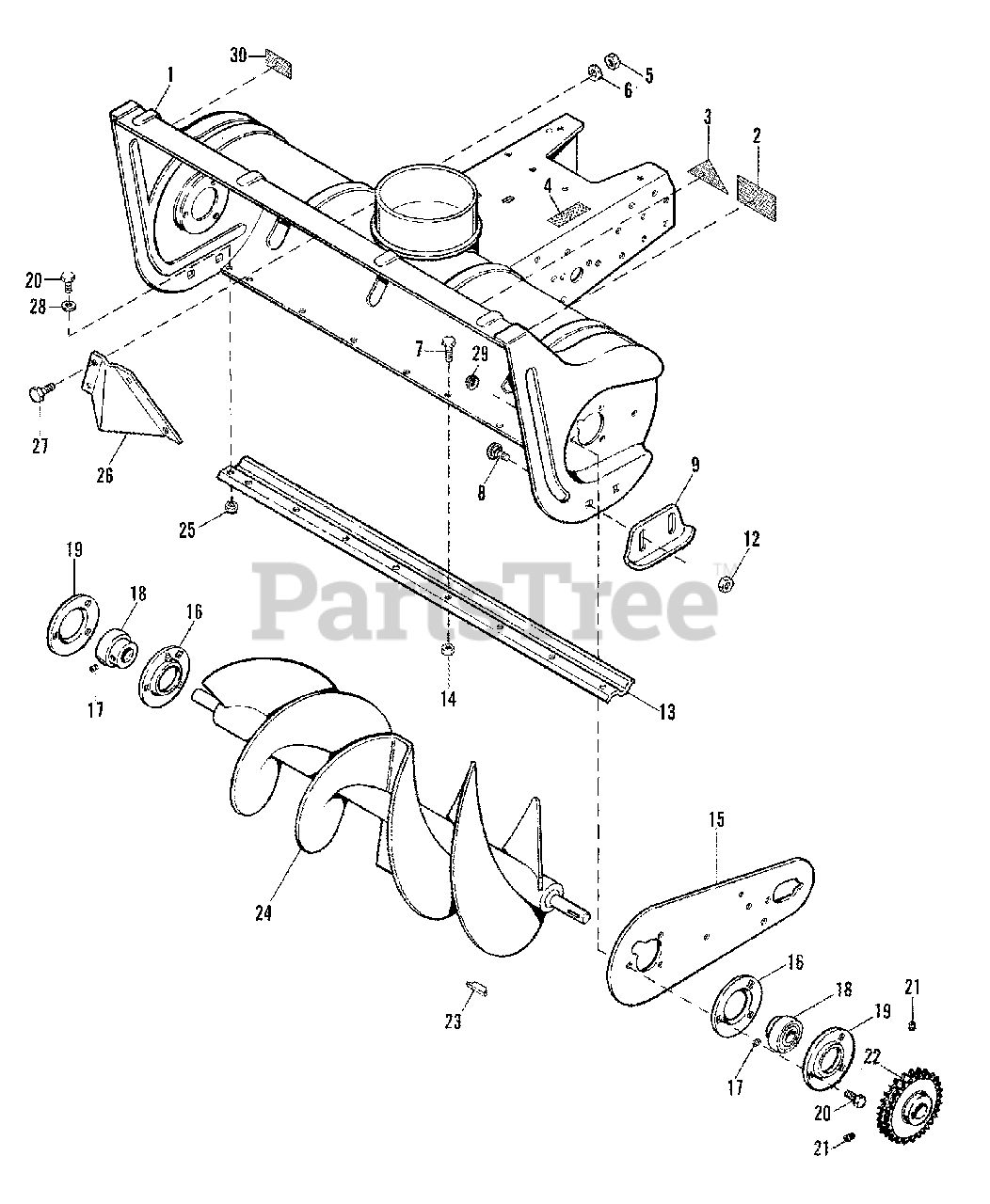

Body & Auger Group Parts Diagram

  • Title

1

Simplicity 1717479A

BODY & FRAME ASSEMBLY

$

$

Not available

2

Simplicity 1716532SM

DECAL, Danger, Auger

$12.99

$

Usually ships in 2-12 days

0

3

DECAL, OPEI (Not Serviced)

$

$

Not available

4

DECAL, I.D. Plate (Not Serviced)

$

$

Not available

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1921959SM

CAPSCREW, Hex Head,1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

8

Simplicity 1960711SM

CARRIAGE BOLT, Round Head Square Neck, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1713424ASM

SKID SHOE

$54.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960687SM

NUT, ESNA Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1717472ASM

SCRAPER BAR

$213.99

$

Usually ships in 2-12 days

0

14

Simplicity 1923358SM

NUT, Hex Lock,1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 2172278ASM

BEARING, Flange

$11.99

$

In Stock, Qty 6

0

15

Simplicity 1676632A

PLATE, Side
(Superseded to 1676632ASM)

$44.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960110SM

SETSCREW, Square Head, Cup Point, 1/4-28 x 1/2, G8

$7.99

$

In Stock, only 2 left!

0

18

Simplicity 1733105SM

BEARING, Ball

$57.99

$

In Stock, Qty 19

0

19

Simplicity 2172278ASM

BEARING, Flange

$11.99

$

In Stock, Qty 6

0

20

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

21

Simplicity 1677029SM

SET SCREW, 5/16 -18 x 3/8

$3.49

$

In Stock, Qty 12

0

22

Simplicity 1676721SM

DOUBLE SPROCKET ASSEMBLY, 29 Teeth

$

$

Not available

23

Simplicity 2151040SM

KEY, 1/4

$9.49

$

In Stock, only 2 left!

0

24

Simplicity 1721842ASM

ROTOR ASSEMBLY

$1567.99

$

Usually ships in 2-12 days

0

25

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

26

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

27

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

29

Simplicity 1935048SM

NUT, Hex Head, Whiz Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1716531SM

DECAL, Caution

$19.99

$

In Stock, only 1 left!

0
