1693757 - Simplicity Hitch for 42" Dozer Hitch, 42" Blade Parts Diagram

Hitch for 42" Dozer

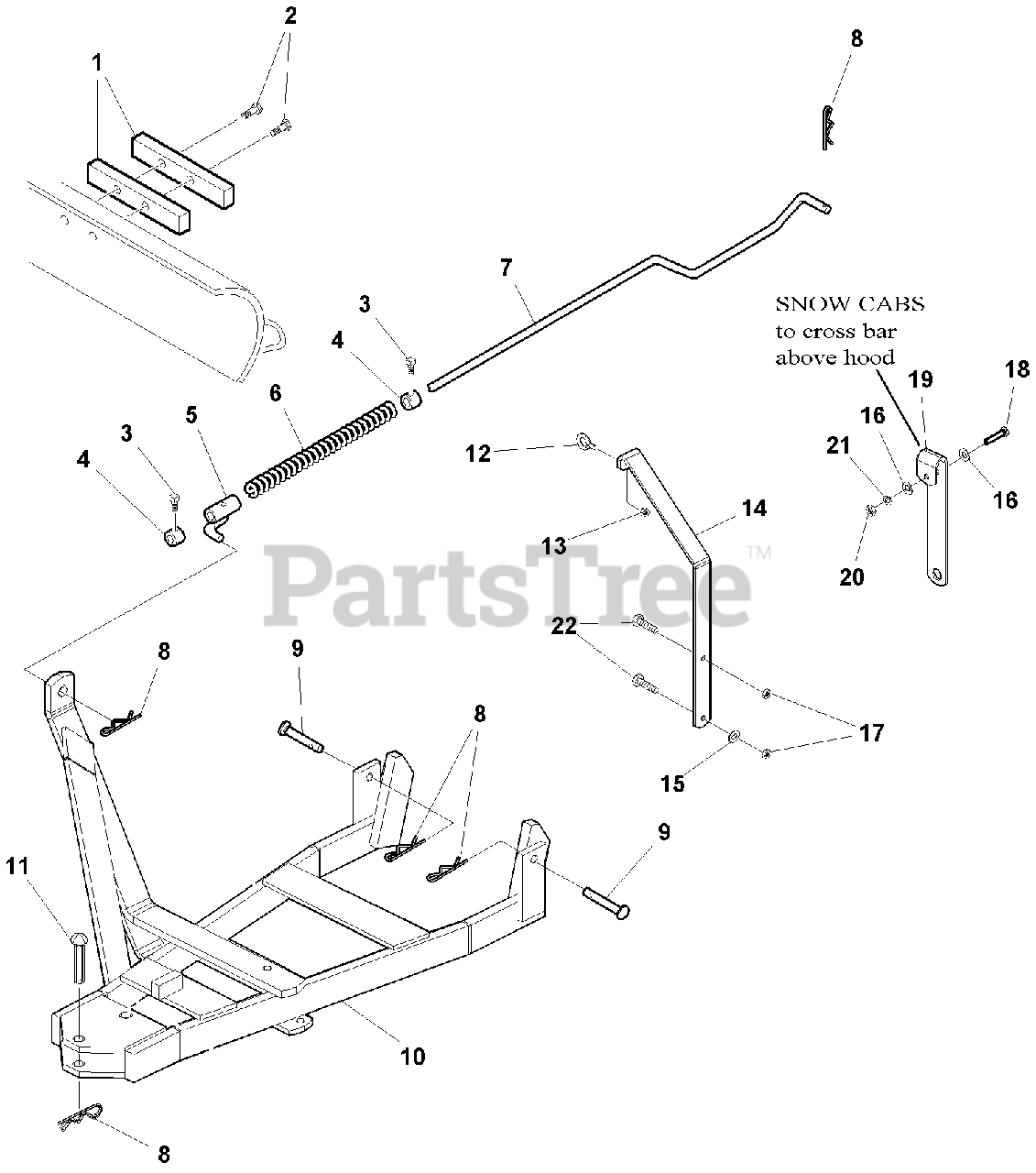

Hitch, 42" Blade Parts Diagram

  • Title

1

Simplicity 1709813SM

BAR
(Superseded to 1709813ASM)

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1960373SM

CAPSCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1928721SM

SCREW, Set, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 5

0

4

Simplicity 1729258SM

COLLAR
(Superseded to 5010477YP)

$

$

Not available

5

Simplicity 2171679SM

GUIDE ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

6

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

7

Simplicity 1666285SM

ROD

$104.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

10

Simplicity 1721298SM

PUSH BAR ASSEMBLY

$

$

Not available

11

Simplicity 1603602SM

PIN

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 2172162SM

EYEBOLT

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 1923358SM

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1721442SM

BRACKET
(Superseded to 1721442ASM)

$20.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 8

0

17

Simplicity 1931277SM

NUT, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

19

Simplicity 1721278SM

BRACKET
(Superseded to 1721278ASM)

$8.99

$

Usually ships in 2-12 days

0

20

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0
