1693754 - Simplicity 42" Angling Dozer Blade Blade, 42" Angling Dozer Parts Diagram

42" Angling Dozer Blade

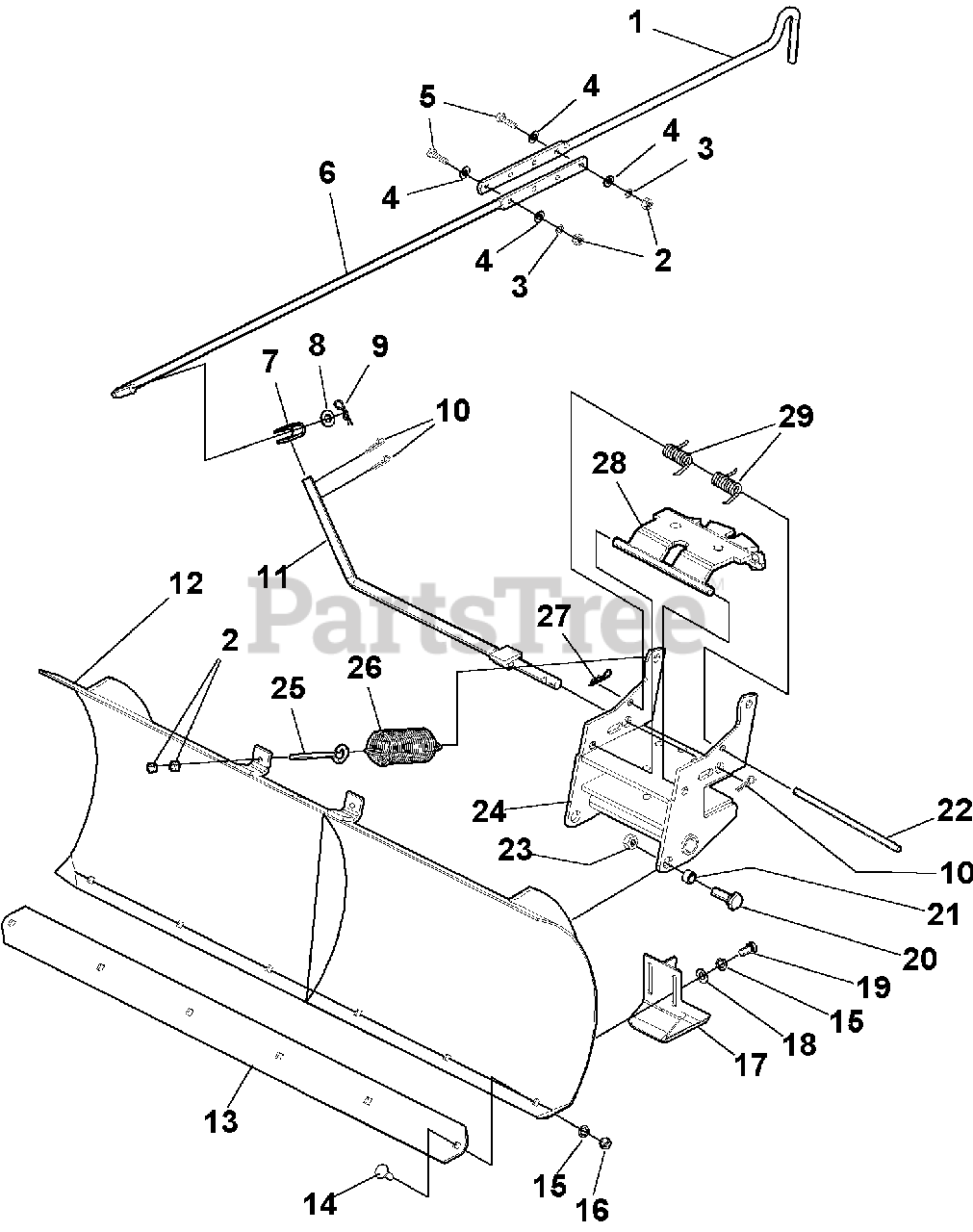

Blade, 42" Angling Dozer Parts Diagram

  • Title

1

Simplicity 1713483ASM

HANDLE

$113.99

$

Usually ships in 2-12 days

0

2

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

6

Simplicity 1721056SM

ROD, Control

$67.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721058ASM

CLEVIS
(Superseded to 1721058BMYP)

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960170SM

WASHER,1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1918196SM

PIN, Hair
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

11

Simplicity 1721053SM

ROD & PLATE ASSEMBLY

$57.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709817ASM

BLADE ASSEMBLY

$723.99

$

Usually ships in 2-12 days

0

13

Simplicity 1721059ASM

WEAR PLATE

$

$

Not available

14

Simplicity 1931350SM

CARRIAGE BOLT,3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 2107106SM

SHOE ASSEMBLY
(Superseded to 2107106ASM)

$68.99

$

In Stock, only 3 left!

0

18

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1725601SM

SPACER

$19.99

$

Usually ships in 2-12 days

0

22

Simplicity 1721051SM

ROD

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1922134SM

NUT, Hex Centerlock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

24

Simplicity 1721043SM

FRAME ASSEMBLY
(Superseded to 1721043ASM)

$826.99

$

Usually ships in 2-12 days

0

25

Simplicity 1675198SM

EYEBOLT

$7.49

$

Usually ships in 2-12 days

0

26

Simplicity 2101126SM

SPRING

$46.99

$

In Stock, only 1 left!

0

27

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1721048SM

PLATE ASSEMBLY
(Superseded to 1721048ASM)

$182.99

$

Usually ships in 2-12 days

0

29

Simplicity 1723938SM

SPRING

$

$

Not available
