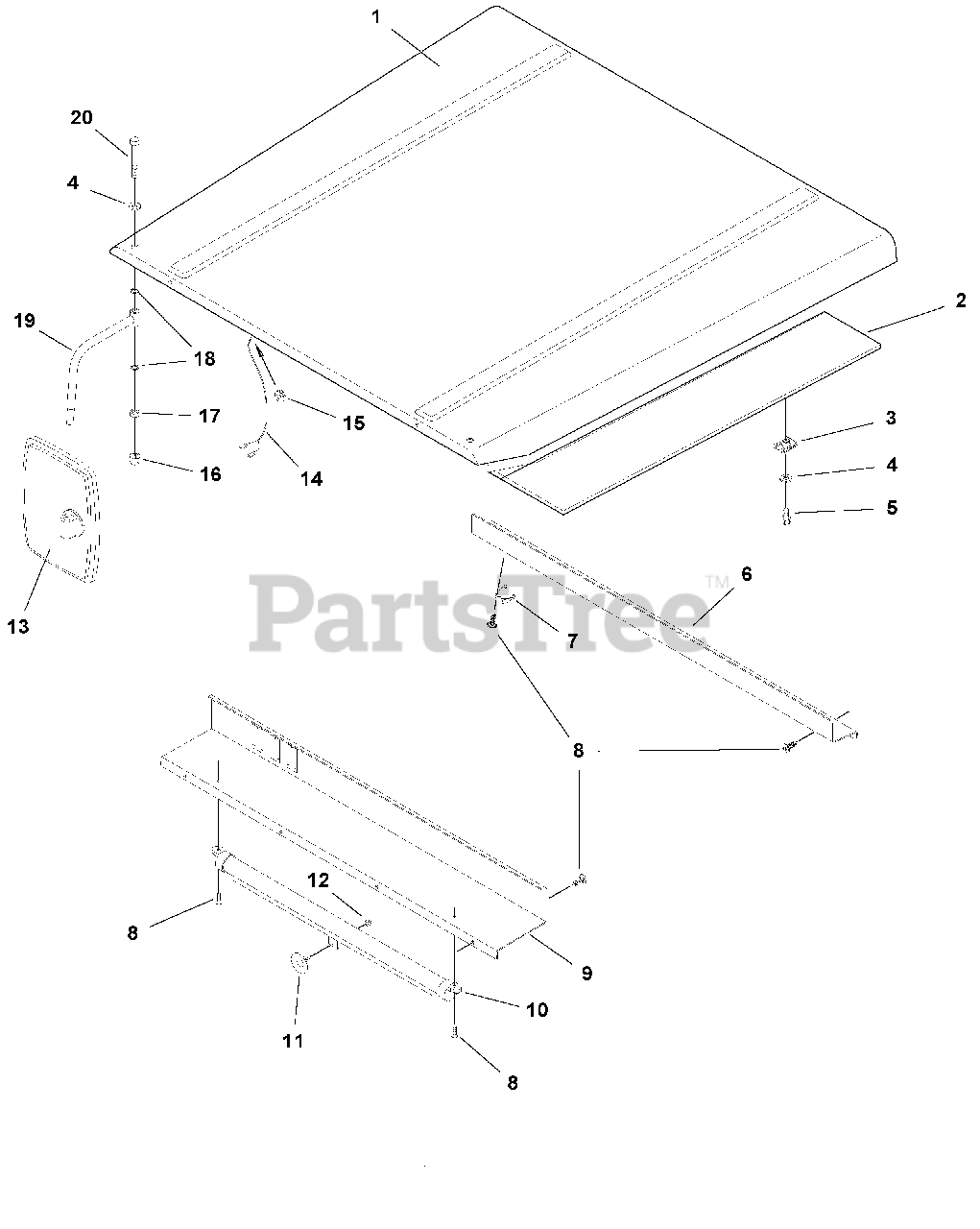

1693660 - Simplicity Deluxe Hard Snow Cab Roof Parts Diagram

Deluxe Hard Snow Cab

Roof Parts Diagram

  • Title

1

Simplicity 1721413SM

SHEET ROOF

$1937.99

$

Usually ships in 2-12 days

0

2

Simplicity 1721414SM

INNER ROOF DECOR

$

$

Not available

3

Simplicity 1721436SM

NUT, M8 13965

$8.99

$

Usually ships in 2-12 days

0

4

WASHER, M8

$

$

Not available

5

HEXAGONAL BOLT, M8 x 16

$

$

Not available

6

Simplicity 1721420SM

FRAME COVER, Rear

$159.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721421SM

COAT HANGER

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1721415SM

SCREW, Self-Tapping Phillips Hd., 4.8 x 16

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1721419SM

FRAME COVER, Front

$199.99

$

Usually ships in 2-12 days

0

10

Simplicity 1721422SM

SHIELD, Sunlight

$284.99

$

Usually ships in 2-12 days

0

11

Simplicity 1721438SM

VAC SOCKET, with Screw

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 1721437SM

NUT, Cap M4

$2.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721417SM

MIRROR

$70.99

$

Usually ships in 2-12 days

0

14

Simplicity 1721423SM

WIRING ASSEMBLY, Headlight

$

$

Not available

15

Simplicity 1721319SM

CABLE GUIDE, 12MM

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1721402SM

CAP, D=8MM

$3.49

$

Usually ships in 2-12 days

0

17

NUT, Nylock M8 x 1 1/4

$

$

Not available

18

WASHER, Spring B8

$

$

Not available

19

Simplicity 1721416SM

MIRROR BAR

$

$

Not available

20

CAPSCREW, M8 x 1 1/4 x 65

$

$

Not available
