1693633 - Simplicity Legacy 54" Garden Tractor, 20hp 54" Mower Deck - Housing, Cover & Gauge Wheel Group Parts Diagram

Legacy 54" Garden Tractor, 20hp

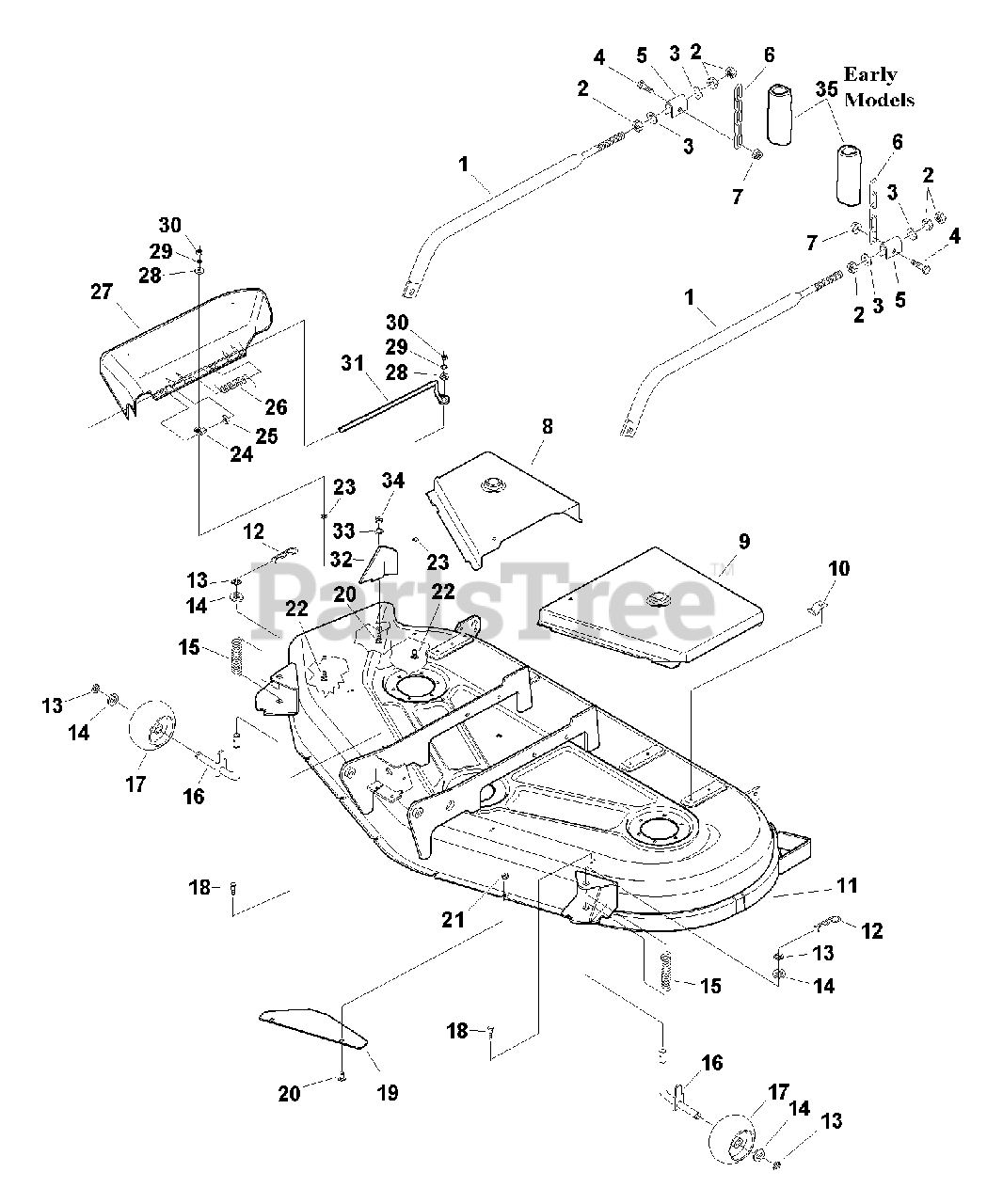

54" Mower Deck - Housing, Cover & Gauge Wheel Group Parts Diagram

  • Title

1

Simplicity 1686868SM

ARM, Adjusting

$301.99

$

Usually ships in 2-12 days

0

2

Simplicity 1922014SM

NUT, Hex, Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

3

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 2170135SM

BOLT, Wheel

$9.49

$

Usually ships in 2-12 days

0

5

Simplicity 1677182SM

TRUNNION
(Superseded to 1677182ASM)

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1708266ASM

CHAIN, 6 Link

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1720184C

COVER, Arbor, RH (Orange)
(Superseded to 1720184CSM)

$125.99

$

In Stock, only 1 left!

0

8

Simplicity 1720184ASM

COVER, Arbor, RH (Solar Black)

$

$

Not available

9

Simplicity 1720186C

COVER, Arbor, LH (Orange)
(Superseded to 1720186CSM)

$

$

Not available

9

Simplicity 1720186ASM

COVER, Arbor, LH (Solar Black)
(Superseded to 1720186CSM)

$

$

Not available

10

Simplicity 1720623SM

CLIP, Spring

$8.49

$

In Stock, only 2 left!

0

11

Simplicity 1687013SM

HOUSING, 54" Mower Deck (Orange)

$1177.99

$

Usually ships in 2-12 days

0

11

Simplicity 1687179SM

HOUSING, 54" Mower Deck (Red)

$

$

Not available

11

Simplicity 1687147SM

HOUSING, 54" Mower Deck (Solar Black)

$601.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1704420SM

KLIPRING, 5/8

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 1960020SM

WASHER, Plain, 5/8

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1716346SM

SPRING, Compression

$6.99

$

In Stock, only 3 left!

0

16

Simplicity 1720497A

ASSEMBLY, Spindle and Stop

$

$

Not available

17

Simplicity 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, only 2 left!

0

18

Simplicity 1929000SM

CAPSCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1720962ASM

BAFFLE, Front, Anti-blowout (S/N 1-59999)

$14.99

$

In Stock, Qty 6

0

20

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 (1 needed for discharge baffle)
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

21

Simplicity 1919438SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

23

Simplicity 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1723323SM

CAP, Spring End .093 ID

$4.99

$

In Stock, only 1 left!

0

25

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 5

0

26

Simplicity 1723938SM

SPRING

$

$

Not available

27

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 1 left!

0

28

Simplicity 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

29

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

30

Simplicity 1916622SM

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

32

Simplicity 1724976ASM

BAFFLE, Discharge (S/N 60000 and above)

$69.99

$

In Stock, only 1 left!

0

33

Simplicity 1917356SM

LOCKWASHER, 5/16 (S/N 60000 and above)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1917372SM

NUT, Hex, 5/16-18 (S/N 60000 and above)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1686763SM

TUBE, Shrink Wrap (Early Models)

$15.99

$

Usually ships in 2-12 days

0
