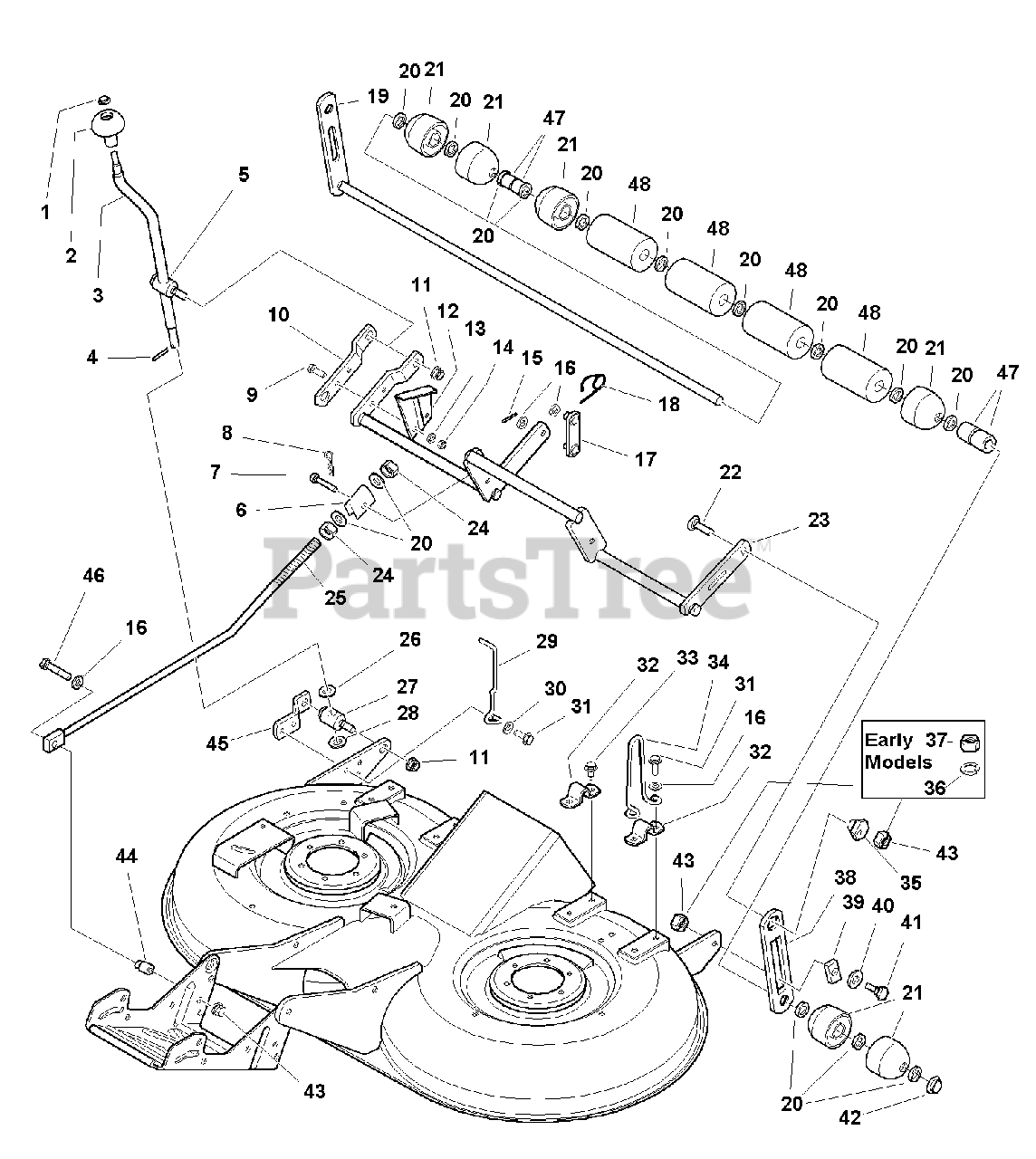

1693585 - Simplicity 40" Mower Deck, Rear-Discharge 40" Parts Diagram

40" Mower Deck, Rear-Discharge

40" Parts Diagram

  • Title

1

Simplicity 1960093SM

PAL NUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1719901SM

CRANK, Height Adjust

$48.99

$

In Stock, only 1 left!

0

4

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1704087SM

TRUNNION, Rod

$109.99

$

Usually ships in 2-12 days

0

6

Simplicity 1706645ASM

TRUNNION, Bracket
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 2118053SM

PIN, Round Head, Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

8

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1926149SM

CAPSCREW, Hex Head, 5/16-18 x 1 G8

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704083ASM

ARM, Rear Adjustable

$13.99

$

In Stock, only 1 left!

0

11

Simplicity 1930644SM

NUT, Hex Flagne Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

12

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 1931277SM

NUT, Hex, 5/16-18 Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Simplicity 1918448SM

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1705049SM

LINK & WELD PINS ASSEMBLY, Lower Lift

$58.99

$

Usually ships in 2-12 days

0

18

Simplicity 2176012SM

RETAINER, Pin, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1686686SM

SHAFT & BAR ASSEMBLY, Roller

$

$

Not available

20

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1717675SM

ROLLER

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1719180SM

SHAFT & ARMS ASSEMBLY, 40" Rear

$102.99

$

Usually ships in 2-12 days

0

24

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

25

Simplicity 1719261SM

ROD, Adjustment

$18.99

$

Usually ships in 2-12 days

0

26

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1704086SM

TRUNNION, Threaded

$31.99

$

Usually ships in 2-12 days

0

28

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

29

Simplicity 1719208SM

INDICATOR, Height of Cut

$13.99

$

Usually ships in 2-12 days

0

30

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

31

Simplicity 1919381SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1665374SM

STRAP, Roller Support
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

33

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1719929SM

STOP, Up Wire

$16.99

$

Usually ships in 2-12 days

0

35

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

36

Simplicity 1916965SM

LOCKWASHER, 3/4 (Early Models)
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

37

Simplicity 1916950SM

NUT, Hex, 3/8-16 (Early Models)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1704073ASM

BAR, Roller

$34.99

$

In Stock, only 1 left!

0

39

Simplicity 1677507SM

SLIDE, Roller

$6.99

$

In Stock, only 3 left!

0

40

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

42

Simplicity 1960520SM

NUT, Push On
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 2860681SM

NUT, Hex Lock Alum Insert, 3/8-16 (Later Models)

$4.49

$

In Stock, Qty 7

0

44

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 3 left!

0

45

Simplicity 1704077ASM

STRAP, Trunnion Retainer

$9.49

$

In Stock, only 1 left!

0

46

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

47

Simplicity 1709195SM

SPACER

$5.99

$

In Stock, Qty 20+

0

48

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0
