1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Wheels & Tires Group Parts Diagram

Baron 40" Lawn Tractor, 18hp

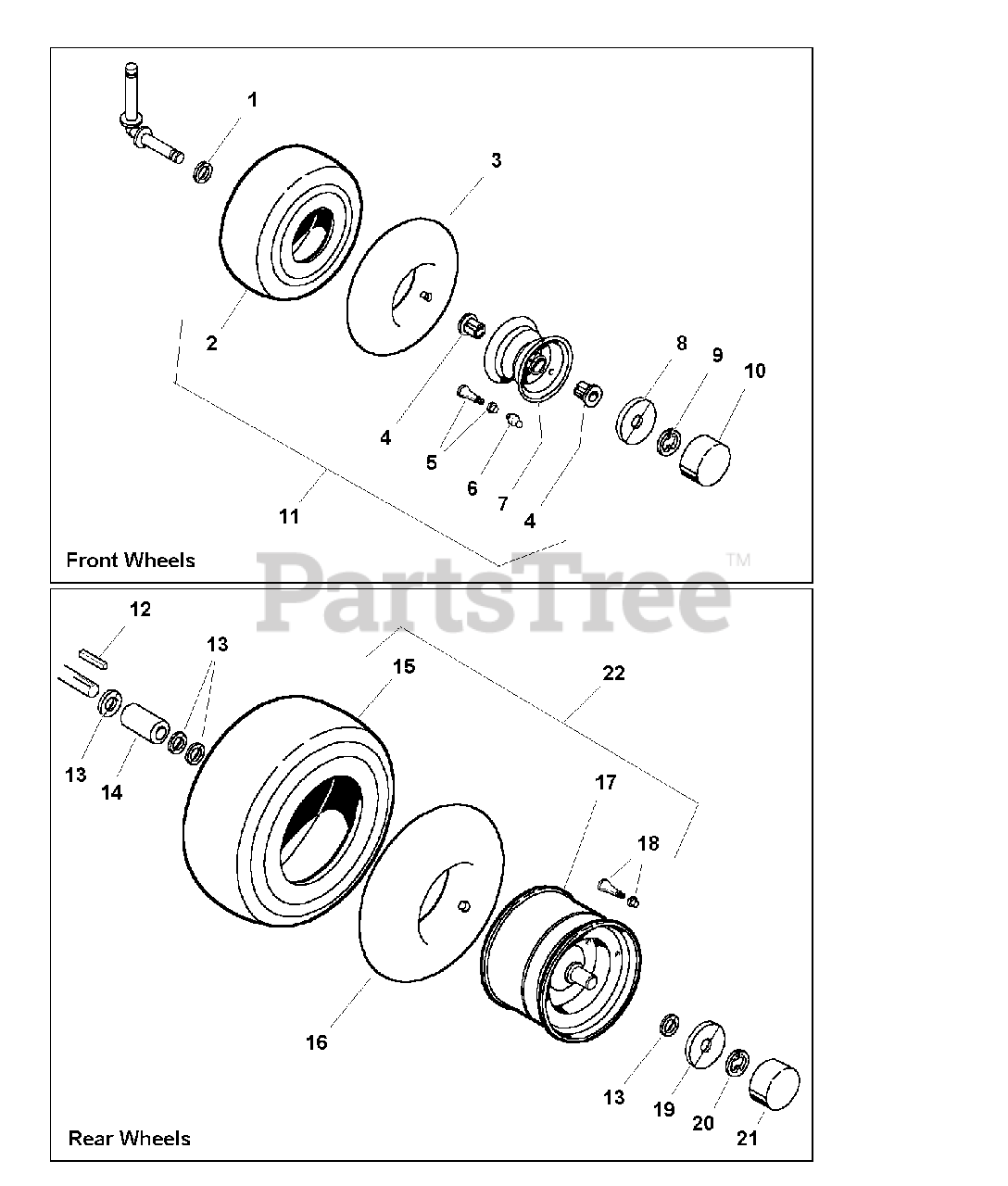

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1960160SM

WASHER, Special, 3/4 (Install to the inside of wheel)

$4.99

$

In Stock, Qty 11

0

3

Simplicity 1664090SM

TUBE, 4.10/3.50-6

$26.99

$

In Stock, only 3 left!

0

11

Simplicity 1709856SM

WHEEL & TIRE ASSEMBLY, 15 x 6.00-6 (Includes Ref. Nos. 2, 4, 5, 6, & 7)

$137.99

$

Usually ships in 2-12 days

0

2

Simplicity 1713166SM

TIRE, 15 x 6.00-6

$113.99

$

Usually ships in 2-12 days

0

4

Simplicity 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1726301SM

WHEEL ASSEMBLY, (Includes Ref. No. 4)

$82.99

$

In Stock, only 1 left!

0

8

Simplicity 1701435SM

RETAINER, Hub Cap, Black

$13.99

$

In Stock, only 1 left!

0

9

Simplicity 1611710SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1676519SM

CAP, Hub

$8.49

$

In Stock, Qty 20+

0

12

Simplicity 1717749SM

KEY
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

13

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1717451SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 2173477SM

TUBE

$85.99

$

Usually ships in 2-12 days

0

19

Simplicity 1701435SM

RETAINER, Cap, Hub

$13.99

$

In Stock, only 1 left!

0

20

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 16

0

21

Simplicity 1676519SM

CAP, Hub, Black

$8.49

$

In Stock, Qty 20+

0

22

Simplicity 1720099SM

WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 15, 17, & 18)

$

$

Not available

15

Simplicity 1713170SM

TIRE, 18 x 8 1/2-8

$

$

Not available

17

Simplicity 1716132SM

WHEEL ASSEMBLY

$

$

Not available

18

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available
