1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Hood, Grille & Dash Group Parts Diagram

Baron 40" Lawn Tractor, 18hp

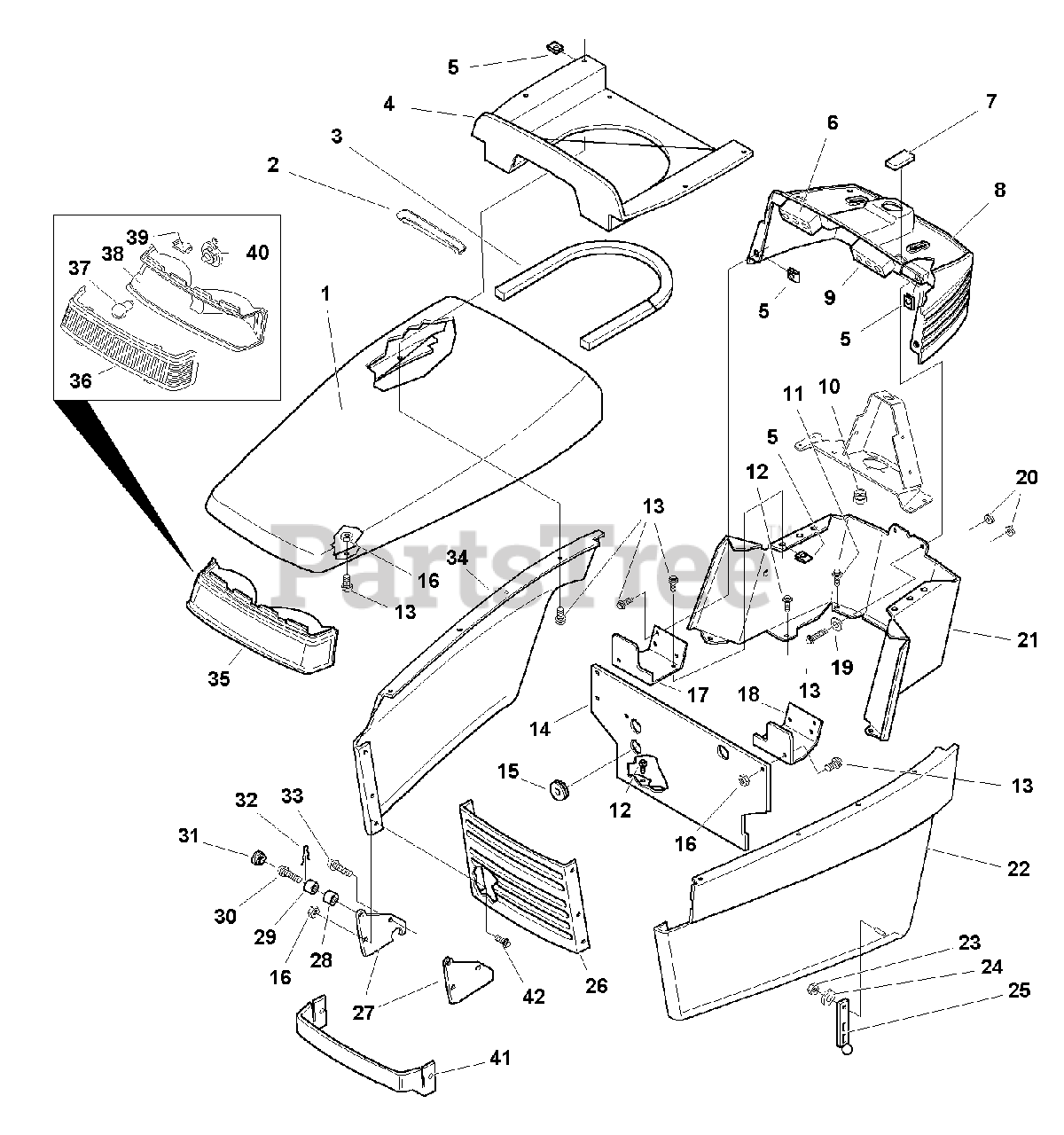

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 1729505SM

HOOD, Red
(Superseded to 1703240DSM)

$151.99

$

Usually ships in 2-12 days

0

1

Simplicity 1703240SM

HOOD, Orange
(Superseded to 1703240CSM)

$151.99

$

Usually ships in 2-12 days

0

2

Simplicity 1717519SM

EDGING, 9" Long, Black Rubber

$48.99

$

Usually ships in 2-12 days

0

3

Simplicity 1720329SM

SEAL, Foam, 1.00 x 0.50 Horseshoe

$30.99

$

Usually ships in 2-12 days

0

4

Simplicity 1719739SM

DUCT, Air 16GA

$38.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960368SM

NUT, Speed Lug
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1709188SM

PLUG, Hole, Black Plastic

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1720326SM

DASHBOARD, Lenses, (Includes Ref. Nos. 6 & 9)

$182.99

$

Usually ships in 2-12 days

0

6

Simplicity 1720327SM

LENS, Indicator R H , (PTO On)

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1720328SM

LENS, Indicator L H, (BLUE/GREEN)

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1929000SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

13

Simplicity 1960295SM

CAPSCREW, Hex Flange Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1722006A

BULKHEAD
(Superseded to 1722006ASM)

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 1704927SM

GROMMET

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1719978SM

SUPPORT, Bulkhead R H w/Hole

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1719845SM

SUPPORT, Bulkhead L H

$

$

Not available

19

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1670675SM

BUMPER, Button, Black Rubber

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1709238ASM

DASH, Lower 16GA

$127.99

$

Usually ships in 2-12 days

0

22

Simplicity 1704879DSM

PANEL & WELD STUD ASSEMBLY, L H Side, Red

$94.99

$

Usually ships in 2-12 days

0

22

Simplicity 1704879CSM

PANEL & WELD STUD ASSEMBLY, L H Side, Orange

$142.99

$

Usually ships in 2-12 days

0

23

Simplicity 1933896SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1960096SM

WASHER, 3/16

$3.99

$

In Stock, only 2 left!

0

25

Simplicity 2171600SM

STRAP, Hood, Black Rubber 4.8" Long

$7.99

$

In Stock, Qty 20+

0

26

Simplicity 1721203SM

GRILLE, 16GA
(Superseded to 1721203ASM)

$

$

Not available

27

Simplicity 1716128SM

HINGE, Hood
(Superseded to 1716128BMYP)

$23.99

$

Usually ships in 2-12 days

0

28

Simplicity 1705249SM

SPACER

$

$

Not available

29

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

30

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1704626SM

SPACER, Nylon

$6.99

$

In Stock, only 2 left!

0

32

Simplicity 1704628SM

PIN, Quick, (Hairpin)

$4.49

$

In Stock, only 4 left!

0

33

Simplicity 1930601SM

CAPSCREW, Hex Wasker Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Simplicity 1704878CSM

PANEL & WELD STUD ASSEMBLY, R.H. Side, Orange

$

$

Not available

34

Simplicity 1704878DSM

PANEL & WELD STUD ASSEMBLY, R.H. Side, Red

$

$

Not available

35

Simplicity 1703945SM

HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 36, 37, 38, 39, & 40)

$164.99

$

In Stock, only 1 left!

0

36

Simplicity 1703248SM

LENS, Headlight

$50.99

$

In Stock, only 1 left!

0

37

Simplicity 1677371SM

BULB, Headlight

$30.99

$

In Stock, only 1 left!

0

38

Simplicity 1703249SM

BEZEL, Headlight

$93.99

$

In Stock, only 1 left!

0

39

Simplicity 1703946SM

HEAT SHEILD, Headlight

$

$

Not available

40

Simplicity 1677370SM

SOCKET, Headlight

$21.99

$

In Stock, only 2 left!

0

41

Simplicity 1721146SM

BUMPER

$50.99

$

Usually ships in 2-12 days

0

42

Simplicity 1930594SM

CAPSCREW, Hex Flange Whizlock, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0
