1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Hand Controls Group Parts Diagram

Baron 40" Lawn Tractor, 18hp

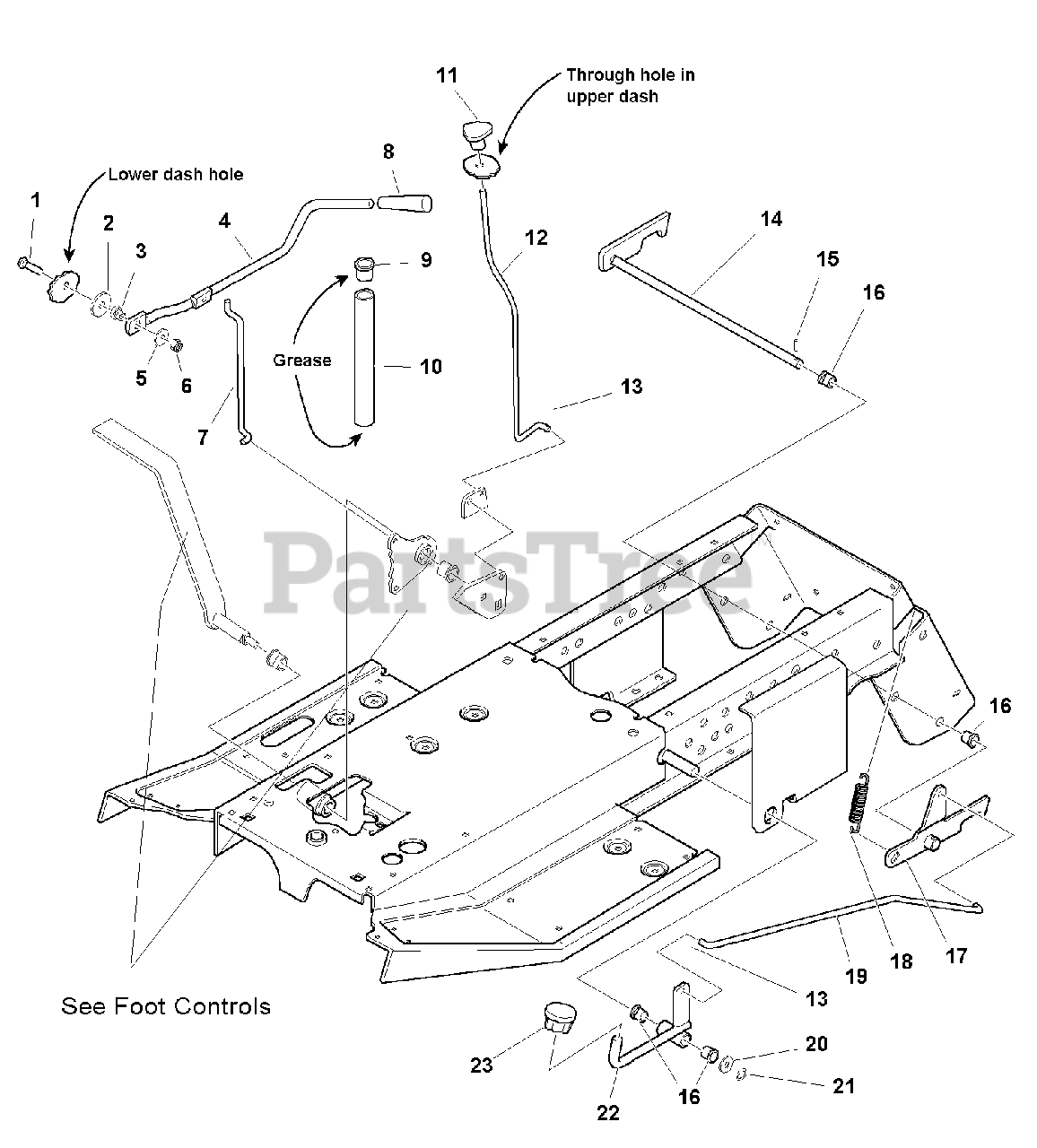

Hand Controls Group Parts Diagram

  • Title

1

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1705590SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1717989SM

ROD, E-Coat Lift Handle, 13.23 Long

$40.99

$

Usually ships in 2-12 days

0

5

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1704623SM

ROD, Link Lift Upper

$

$

Not available

8

Simplicity 1718219SM

KNOB, Lift Rod, Black

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1704425A

TUBE, Shift, 8.60 Long

$

$

Not available

11

Simplicity 1713855SM

KNOB, 3 Sided Soft

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1720232SM

ROD, 15.3 Long Parking Brake

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 1923360SM

PIN, Cotter, 1/16 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

14

Simplicity 1719989SM

ROD & LATCH ASSEMBLY, R H

$21.99

$

Usually ships in 2-12 days

0

15

Simplicity 2816168SM

PIN, Spring, 1/8 x 3/4

$4.49

$

In Stock, Qty 14

0

16

Simplicity 1715025SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1719988SM

LATCH & SPACER ASSEMBLY, L H

$59.99

$

Usually ships in 2-12 days

0

18

Simplicity 2174896SM

SPRING, Extension

$20.99

$

In Stock, only 1 left!

0

19

Simplicity 1719990SM

ROD, 22.31 Long Latch, Yellow

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960027SM

WASHER, Flat
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2158399SM

RING-E, Return Extension
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

22

Simplicity 1719981SM

LEVER & ROD ASSEMBLY, Hopper Open

$31.99

$

Usually ships in 2-12 days

0

23

Simplicity 1719940SM

KNOB

$12.99

$

Usually ships in 2-12 days

0
