1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Electrical Group - Upper Harness Parts Diagram

Baron 40" Lawn Tractor, 18hp

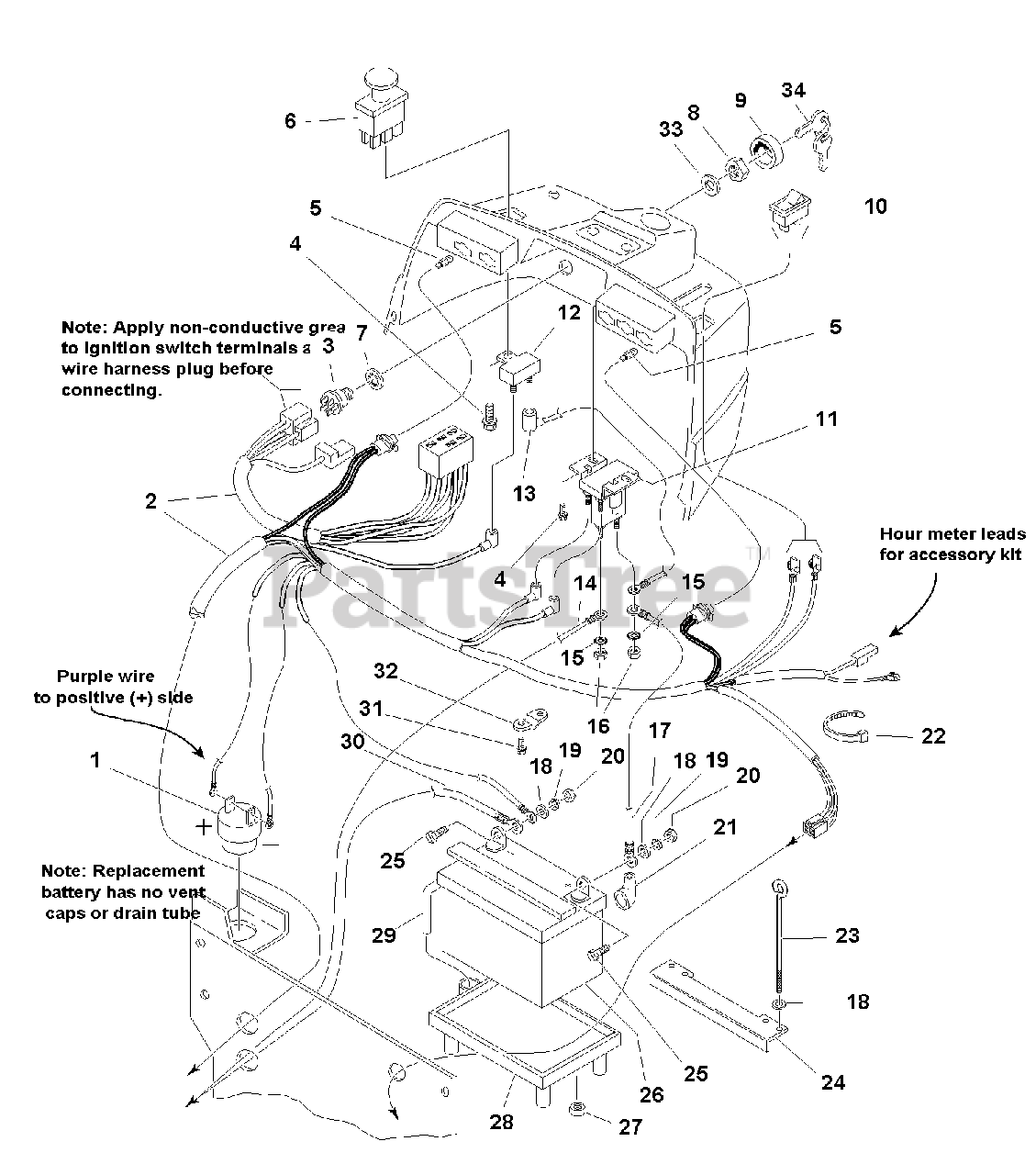

Electrical Group - Upper Harness Parts Diagram

  • Title

1

Simplicity 1720117SM

BUZZER, Pulse, (Grass Bag Full)

$38.99

$

Usually ships in 2-12 days

0

2

Simplicity 1719999SM

HARNESS, Wiring

$103.99

$

Usually ships in 2-12 days

0

3

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition 5/8-32 6 Terminal (Includes Ref. Nos. 7, 8, 9, 33 & 34)

$32.99

$

In Stock, Qty 20+

0

7

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 1717549SM

NUT, Hex Flange 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

33

Simplicity 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1717163SM

KEY, Ignition (Set of 2)

$8.99

$

In Stock, Qty 20+

0

4

Simplicity 1960536SM

CAPSCREW, Hex Washer Head, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1676130SM

LAMP, Indicator

$

$

Not available

6

Simplicity 1716332SM

SWITCH, PTO Push/Pull w/Symbols
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

10

Simplicity 1703799SM

SWITCH, Rocker, Headlight

$31.99

$

In Stock, only 1 left!

0

11

Simplicity 1686981SM

SOLENOID, 4 Pole 12 Volt DC
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

12

Simplicity 1665238SM

BREAKER, Circuit 12 Volt 20 amps w/Tab

$14.99

$

In Stock, Qty 20+

0

13

Simplicity 1665237SM

WIRE, 12GA, Red

$11.99

$

In Stock, Qty 7

0

14

Simplicity 1668819SM

CABLE, # 6 x 25 Long (2) Ring Terminals

$16.99

$

Usually ships in 2-12 days

0

15

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 2820263SM

NUT, Hex, 5/16-24 NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1603618SM

CABLE, # 6 x 8 Long, (2) Ring Terminals

$11.99

$

In Stock, only 3 left!

0

18

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

20

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1677296SM

BOOT, Insulator, Battery Terminal

$6.49

$

In Stock, Qty 10

0

22

Simplicity 2820594

TIE, Self Locking, 7-5/16" Long

$

$

Not available

23

Simplicity 1704632SM

ROD, Battery Hold Down

$

$

Not available

24

Simplicity 1718596ASM

BRACKET, Battery Hold Down

$36.99

$

Usually ships in 2-12 days

0

25

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

26

Simplicity 1685215SM

BATTERY, 12 Volt 6 Cell 340 amps

$

$

Not available

27

Simplicity 1704349SM

NUT, Plastic Expanding

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1704112SM

TRAY, Battery

$10.99

$

Usually ships in 2-12 days

0

29

Simplicity 1612103SM

HOSE, Drain

$5.49

$

Usually ships in 2-12 days

0

30

Simplicity 1713163SM

CABLE, # 6 x 26 Long 1/4 & 3/8 Ring Terminals

$24.99

$

In Stock, only 2 left!

0

31

Simplicity 1960369SM

CAPSCREW, Hex Washer Head, 3/8-16 x 1/2

$3.49

$

In Stock, only 1 left!

0

32

Simplicity 1704614SM

STRAP

$11.99

$

Usually ships in 2-12 days

0
