1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Electrical Group - Lower Harness Parts Diagram

Baron 40" Lawn Tractor, 18hp

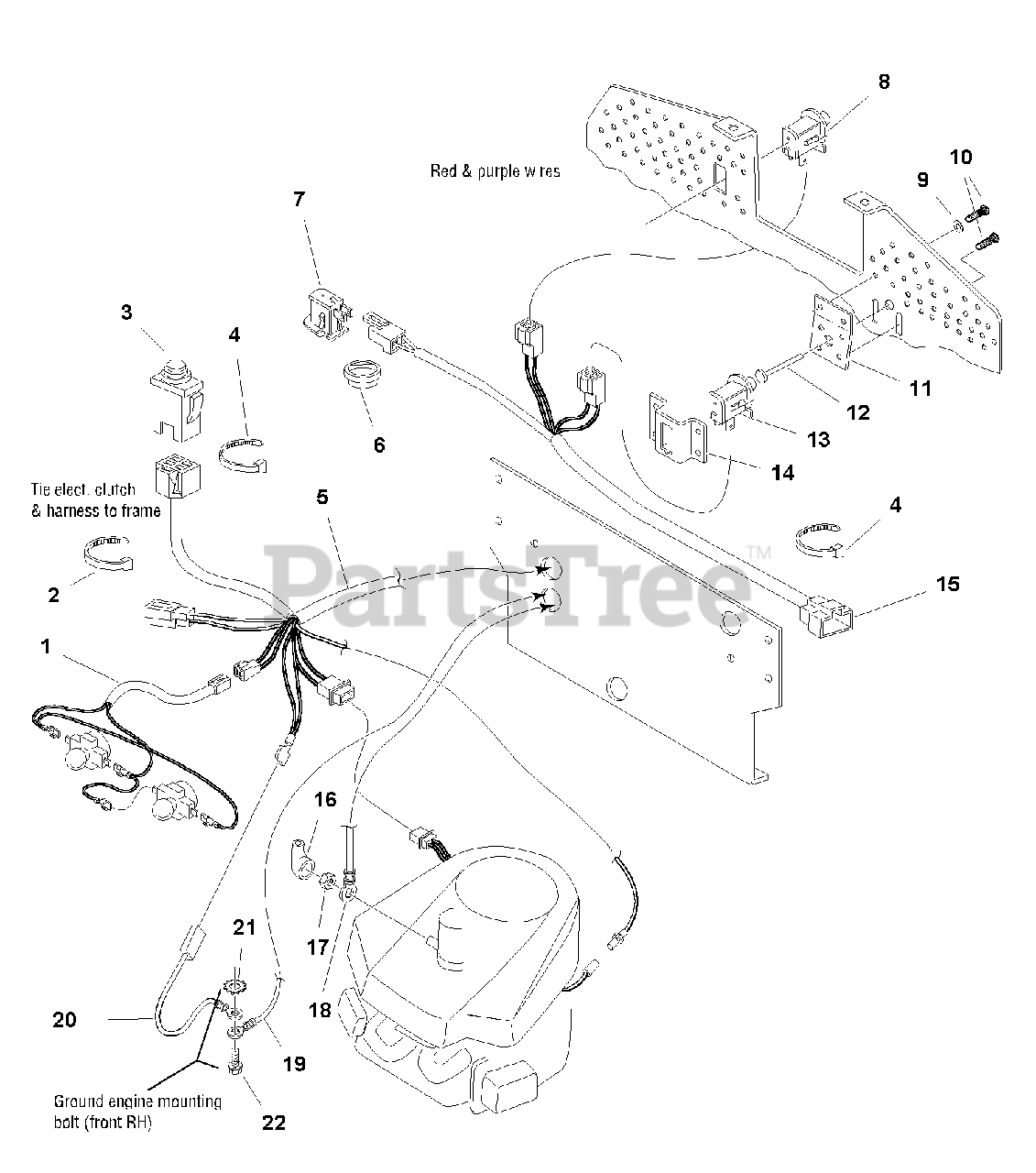

Electrical Group - Lower Harness Parts Diagram

  • Title

1

Simplicity 1674358SM

HARNESS, Wiring For Headlights

$35.99

$

In Stock, Qty 7

0

2

Simplicity 2832747SM

TIE, Self Locking, 3-5/8" Long

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1719681SM

SWITCH, Push Button Foot Pedal

$21.99

$

Usually ships in 2-12 days

0

4

Simplicity 1701011SM

TIE, Self Locking, 7-5/16" Long

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 1719999SM

HARNESS, Wiring

$103.99

$

Usually ships in 2-12 days

0

6

Simplicity 1701229SM

BUSHING, Snap

$1.99

$

Usually ships in 2-12 days

0

7

Simplicity 1732005SM

SWITCH, Push Button Seat Switch
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

8

Simplicity 1720401SM

SWITCH, Push Button Gray w/Boot, Safety

$14.99

$

In Stock, only 1 left!

0

9

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

11

Simplicity 1720119SM

PLATE, Cover Hopper Switch

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 1720120SM

ROD & WASHER ASSEMBLY, Hopper Switch

$18.99

$

Usually ships in 2-12 days

0

13

Simplicity 1732004SM

SWITCH, Push Button, Snap In, Grass Catcher Alarm

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 1720118SM

BRACKET, Hopper Switch

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1720001SM

WIRE ASSEMBLY, Rear Bagger

$34.99

$

Usually ships in 2-12 days

0

16

Simplicity 2122023SM

BOOT, Insulator, Battery Terminal

$5.99

$

In Stock, Qty 12

0

17

Simplicity 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1668819SM

CABLE, # 6 x 25 Long, (2) Ring Terminals

$16.99

$

Usually ships in 2-12 days

0

19

Simplicity 1713163SM

CABLE, # 6 x 26 Long, 1/4 & 3/8 Ring Terms

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 1707232SM

WIRE ASSEMBLY

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 704010

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1 1/2

$4.99

$

Usually ships in 2-12 days

0
