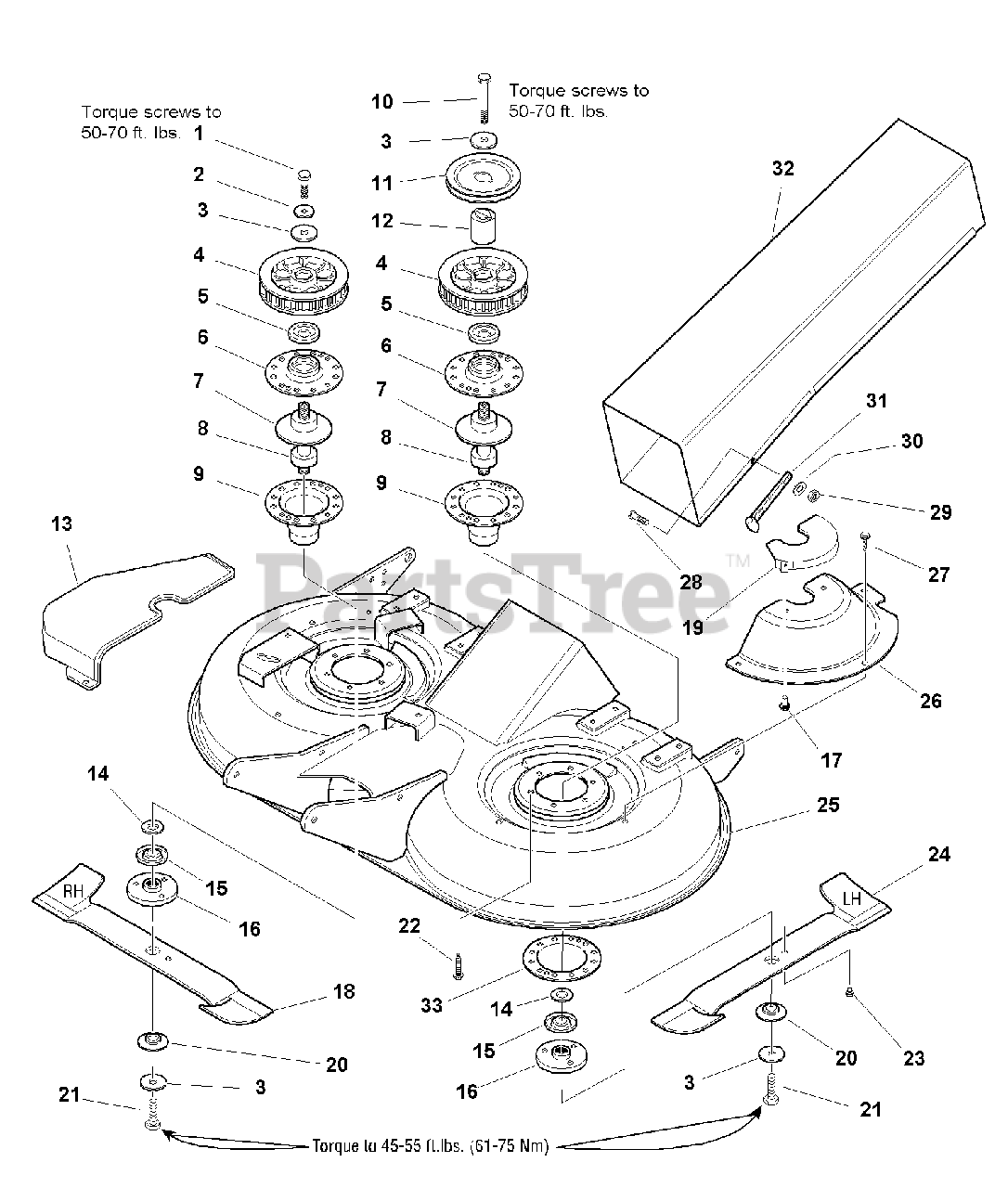

1693584 - Simplicity Baron 40" Lawn Tractor, 18hp 40" Parts Diagram

Baron 40" Lawn Tractor, 18hp

40" Parts Diagram

  • Title

1

Simplicity 1930584SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

3

Simplicity 1656916SM

WASHER, Spring, 1-3/4

$7.49

$

In Stock, Qty 20+

0

4

Simplicity 1719766SM

SPROCKET & FLANGE ASSEMBLY, Rivited

$100.99

$

In Stock, only 1 left!

0

5

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1655729ASM

HOUSING, Arbor Top

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

8

Simplicity 1722396SM

ARBOR SHAFT & BEARINGS ASSEMBLY

$263.99

$

In Stock, only 1 left!

0

9

Simplicity 1703273ASM

HOUSING, Arbor Bottom w/Lube Fitting

$38.99

$

In Stock, Qty 20+

0

10

Simplicity 2860644SM

CAPSCREW, Hex Head, 7/16-14 x 4-1/2 G8

$

$

Not available

11

Simplicity 1713091SM

PULLEY

$23.99

$

In Stock, only 1 left!

0

12

Simplicity 1719862SM

HUB

$26.99

$

In Stock, only 1 left!

0

13

Simplicity 1721153SM

COVER, Arbor RH

$

$

Not available

14

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1700229SM

SHIELD, Bearing, Mower Arbor Lower

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 1655777SM

ADAPTER, Blade 26, 30, 36, 42 & 48

$25.99

$

In Stock, Qty 20+

0

17

Simplicity 1675044SM

RIVET, Pop

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 1719737ASM

BLADE, Mower RH
(Superseded to 1719737BMYP)

$39.99

$

Usually ships in 2-12 days

0

19

Simplicity 1721258ASM

GUARD ASSEMBLY

$62.99

$

Usually ships in 2-12 days

0

20

Simplicity 1722257SM

WASHER, Spline

$59.99

$

Usually ships in 2-12 days

0

21

Simplicity 2827120SM

CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8

$

$

Not available

22

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1722258SM

PIN, Blade

$8.49

$

In Stock, only 2 left!

0

24

Simplicity 1719736ASM

BLADE, Mower LH

$39.99

$

Usually ships in 2-12 days

0

25

Simplicity 1686784SM

HOUSING ASSEMBLY, 40" Mower, 2 Spindle, Orange

$482.99

$

Usually ships in 2-12 days

0

25

Simplicity 1687166SM

HOUSING ASSEMBLY, 40" Mower, 2 Spindle, Red

$826.99

$

Usually ships in 2-12 days

0

26

Simplicity 1724601SM

COVER, Arbor LH
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

27

Simplicity 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

28

Simplicity 1960404SM

CAPSCREW, Truss Head, Phillips, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

29

Simplicity 1933896SM

NUT, Hex Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

30

Simplicity 1960096SM

WASHER, 3/16

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 2171600SM

STRAP, Hood, Black Rubber, 4.8" Long

$7.99

$

In Stock, Qty 20+

0

32

Simplicity 1686817SM

TUBE ASSEMBLY, Top & Bottom Rear

$421.99

$

Usually ships in 2-12 days

0

33

Simplicity 1677247

ARBOR ADAPTOR

$

$

Not available
