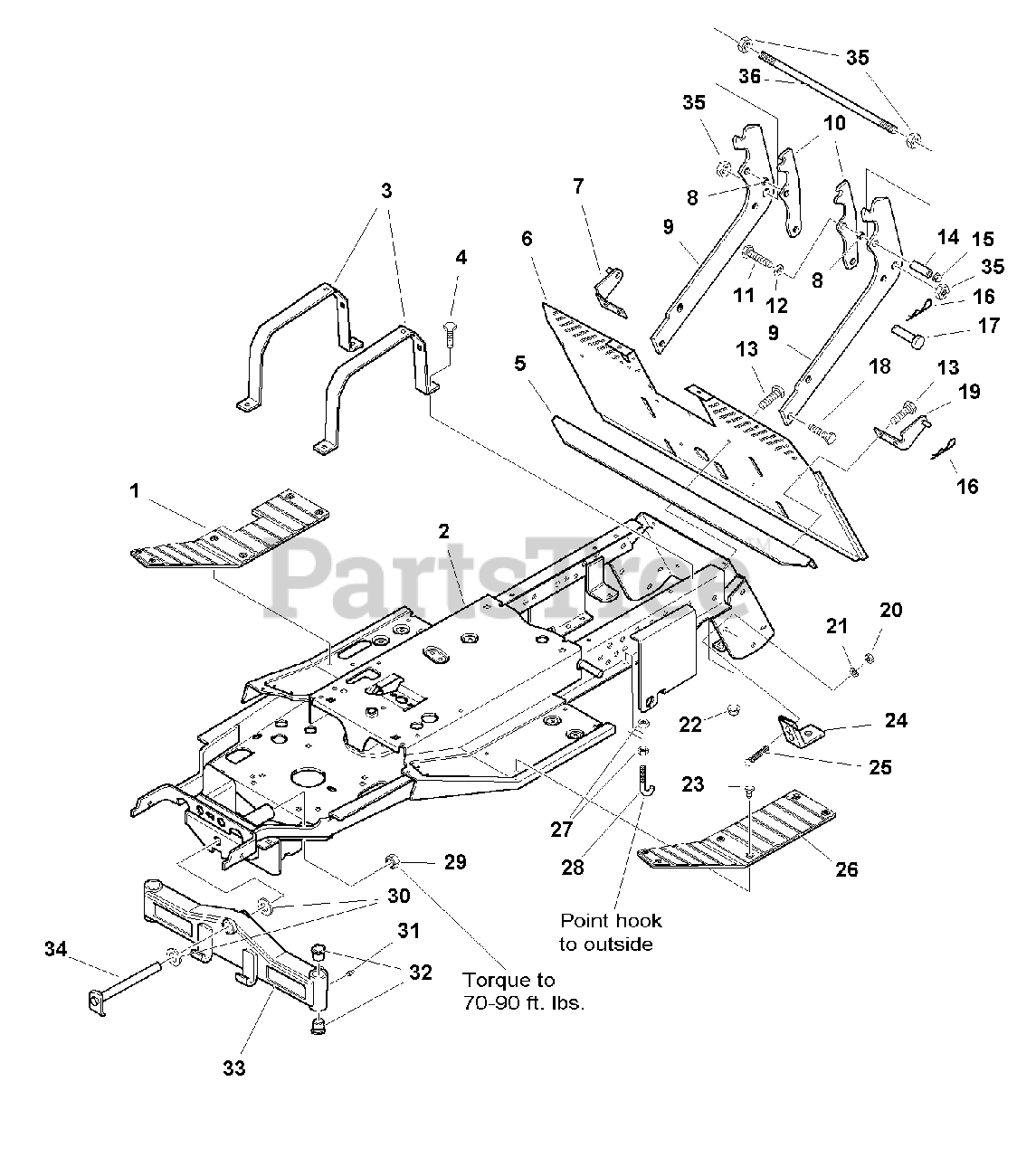

1693583 - Massey Ferguson Baron Lawn Tractor, 18hp Frame & Front Axle Group Parts Diagram

Baron Lawn Tractor, 18hp

Frame & Front Axle Group Parts Diagram

  • Title

1

Simplicity 1717936SM

PAD, Footrest, R H

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 1719355SM

FRAME ASSEMBLY

$

$

Not available

3

Simplicity 1720041SM

STRAP, Fuel Tank

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1719966SM

SUPPORT, Brace

$

$

Not available

6

Simplicity 1722092SM

BACKPLATE, Grass Bag

$94.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721171SM

BRACKET & PIVOT ASSEMBLY, R H Cylinder
(Superseded to 1721171ASM)

$41.99

$

Usually ships in 2-12 days

0

8

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

9

Simplicity 1721172SM

SUPPORT, Hopper

$31.99

$

Usually ships in 2-12 days

0

10

Simplicity 1719731SM

LATCH, Support

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1960590SM

CAPSCREW, Hex Head, 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 8

0

13

Simplicity 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

14

Simplicity 1713447SM

SPACER

$29.99

$

Usually ships in 2-12 days

0

15

Simplicity 1927557SM

NUT, Hex Flange Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1708298SM

PIN, Round Head Drilled, 3/8 X 1

$

$

Not available

18

Simplicity 1960043SM

CAPSCREW, Hex Flange Whizlock, 7/16-14 x 1

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 1721169ASM

BRACKET & PIVOT ASSEMBLY, L H Cylinder

$35.99

$

Usually ships in 2-12 days

0

20

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

22

Simplicity 1935041SM

NUT, Hex Flange Whizlock, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

23

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

24

Simplicity 1719972A

DRAWBAR
(Superseded to 1719972ASM)

$25.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

26

Simplicity 1704311SM

PAD, Footrest, L H

$

$

Not available

27

Simplicity 1931277SM

NUT, Hex Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1679385SM

HOOK-J

$9.99

$

In Stock, only 2 left!

0

29

Simplicity 1960270SM

NUT, Hex Full Lock, 3/4-16

$4.49

$

In Stock, only 3 left!

0

30

Simplicity 2860530SM

WASHER, Special, 7/8 x 1-3/4 x 1/16

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1703475ASM

AXLE ASSEMBLY, Front

$634.99

$

Usually ships in 2-12 days

0

34

Simplicity 1718856SM

SHAFT & LOCK ASSEMBLY, Axle Pivot
(Superseded to 1718856ASM)

$108.99

$

Usually ships in 2-12 days

0

35

Simplicity 1916951SM

NUT, Hex 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

36

Simplicity 1721174SM

ROD, Support

$23.99

$

Usually ships in 2-12 days

0
