1693583 - Massey Ferguson Baron Lawn Tractor, 18hp Foot Controls Group Parts Diagram

Baron Lawn Tractor, 18hp

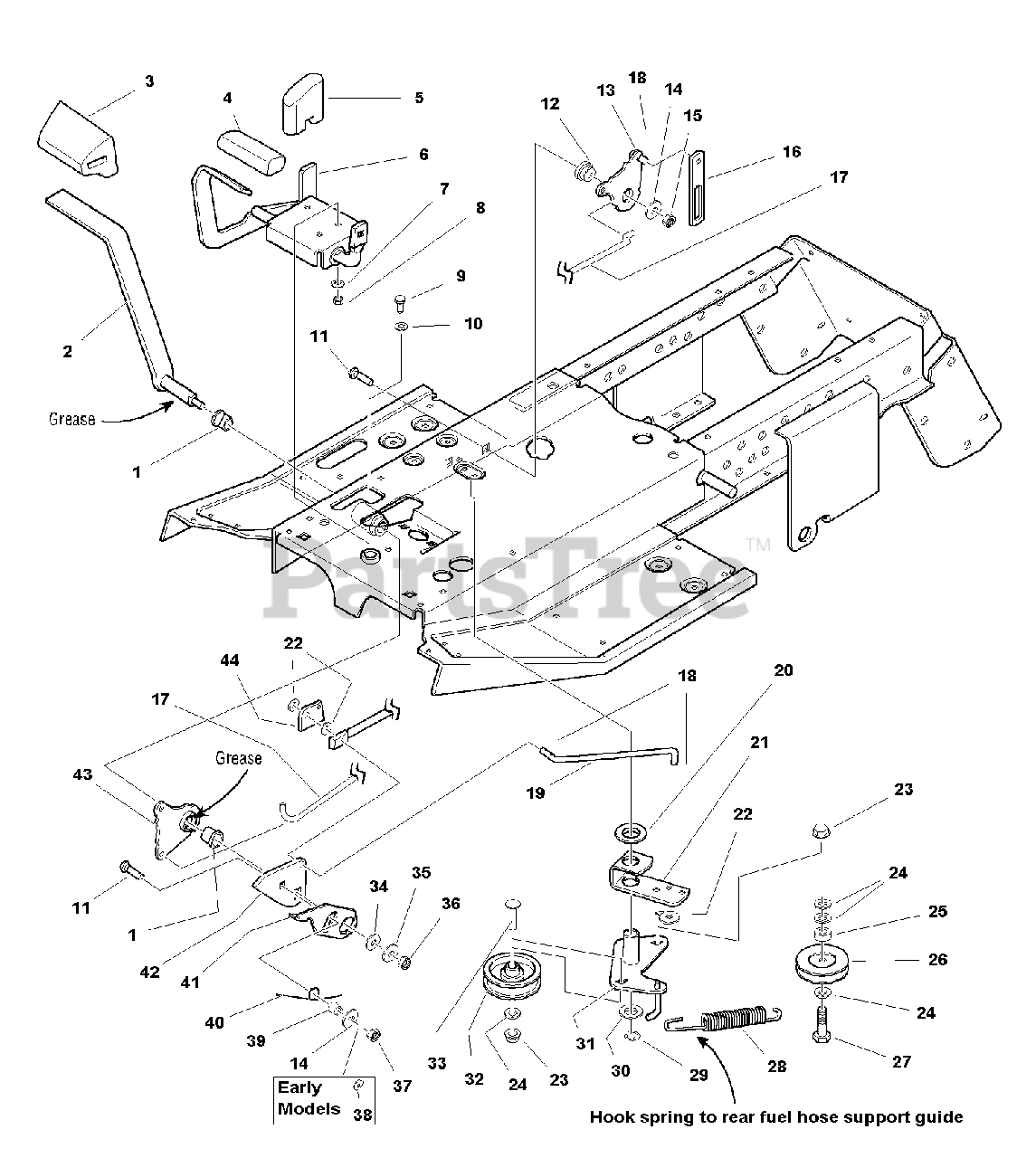

Foot Controls Group Parts Diagram

  • Title

1

Simplicity 1663114SM

BUSHING, Nylon

$4.49

$

In Stock, only 3 left!

0

2

Simplicity 1723817SM

PEDAL & SHAFT ASSEMBLY, Brake
(Superseded to 1723817ASM)

$28.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718944SM

PAD, Foot Pedal, Black Rubber

$50.99

$

In Stock, only 1 left!

0

4

Simplicity 1715834SM

PEDAL, Foot Forward, Balck Rubber

$15.99

$

Usually ships in 2-12 days

0

5

Simplicity 1715835SM

PEDAL, Foot Reverse, Black Rubber

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 1720007SM

PEDAL ASSEMBLY, Foot

$67.99

$

Usually ships in 2-12 days

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1960136SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 1704629SM

SPACER
(Superseded to 1732540SM)

$10.99

$

Usually ships in 2-12 days

0

13

Simplicity 1720233SM

CAM & WELD PIN ASSEMBLY, Lift

$9.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1704756A

LINK, LIFT, Upper
(Superseded to 1704756ASM)

$19.99

$

In Stock, only 3 left!

0

17

Simplicity 1718014SM

LINK, Lift

$

$

Not available

18

Simplicity 1918447SM

PIN, Cotter, 3/32 X 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1720224SM

ROD, Clutch 2 Bends

$18.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960070SM

WASHER, 1

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1719271A

LEVER, Clutch Painted

$

$

Not available

22

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

23

Simplicity 1928352SM

NUT, Hex Flange Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2174561SM

PULLEY

$53.99

$

Usually ships in 2-12 days

0

27

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

28

Simplicity 1718016SM

SPRING, Extension
(Superseded to 1752846YP)

$46.99

$

Usually ships in 2-12 days

0

29

Simplicity 1704420SM

RING, Extension Klipring

$4.99

$

In Stock, only 2 left!

0

30

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1717769SM

PIVOT ASSEMBLY, Idler

$50.99

$

Usually ships in 2-12 days

0

32

Simplicity 1721133SM

PULLEY, Idler

$29.99

$

In Stock, Qty 20+

0

33

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

34

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

35

Simplicity 1922611SM

WASHER, 3/8

$6.99

$

In Stock, only 1 left!

0

36

Simplicity 1960339SM

NUT, Hex Lock ESNA Light, 3/8-16

$

$

Not available

37

Simplicity 1923362SM

NUT, Hex Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

38

Simplicity 1917356SM

LOCKWASHER, 5/16 (Early Models)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1720882SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

40

Simplicity 1720724SM

SPRING, Torsion

$5.49

$

Usually ships in 2-12 days

0

41

Simplicity 1709950SM

ACTUATOR, Switch

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1717767SM

ARM, Foot Pedal

$7.49

$

Usually ships in 2-12 days

0

43

Simplicity 1717186A

CAM, Lift Painted

$

$

Not available

44

Simplicity 1720223SM

CAM, Parking Brake

$5.99

$

Usually ships in 2-12 days

0
