1693583 - Massey Ferguson Baron Lawn Tractor, 18hp Engine Group Parts Diagram

Baron Lawn Tractor, 18hp

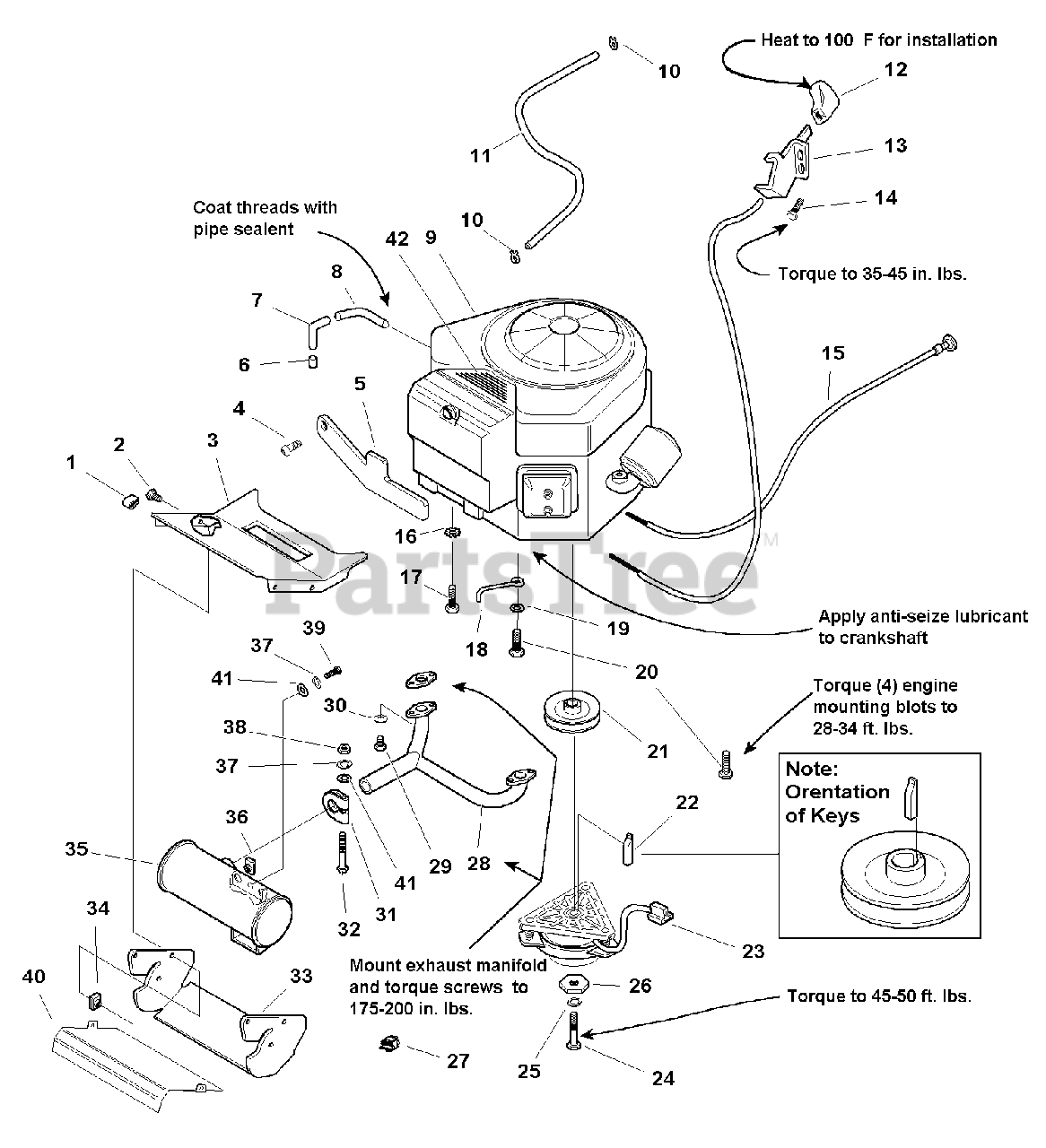

Engine Group Parts Diagram

  • Title

1

Simplicity 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960295SM

CAPSCREW, Hex Flange Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1707334SM

DUCT, Muffler, Top

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960624SM

CAPSCREW, Pan Head, Torx, #10-32 x 1/2 (Early Models)

$1.99

$

Usually ships in 2-12 days

0

5

Simplicity 1720507SM

BRACKET, Flat (Early Models)

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1667346SM

CAP, Hex, 3/8-18NPT

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 1673453SM

FITTING, Pipe Elbow Street

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 1720017SM

PIPE, Oil Drain

$10.99

$

Usually ships in 2-12 days

0

9

ENGINE, 18.0HP Briggs & Stratton INTEK

$

$

Not available

10

Simplicity 2860112SM

CLAMP, Hose, 1/2 Diameter Type E

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

12

Simplicity 1713846SM

KNOB, Soft

$15.99

$

In Stock, only 1 left!

0

13

Simplicity 1714068SM

CONTROL, Throttle 3/16 Cable 35-3/4 Long, No Knob

$52.99

$

In Stock, only 1 left!

0

13

Simplicity 1714068SM

CONTROL, Throttle 3/16 Cable 35-3/4 Long, No Knob (Export)

$52.99

$

In Stock, only 1 left!

0

14

Simplicity 1960536SM

CAPSCREW, Hex Washer Head, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708764SM

CONTROL, Choke 3/16 Cable 39-1/2 Long w/Knob

$91.99

$

Usually ships in 2-12 days

0

16

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 704010

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1704419SM

STOP, Belt

$7.49

$

In Stock, only 2 left!

0

19

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1930598SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713187SM

PULLEY & HUB ASSEMBLY

$92.99

$

Usually ships in 2-12 days

0

22

Simplicity 2105337SM

KEY, HI PRO, 1/4 x 2.000

$8.49

$

In Stock, Qty 12

0

23

Simplicity 1720532SM

CLUTCH, Electric
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

24

Simplicity 1960370SM

CAPSCREW, Hex Head, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

27

Simplicity 2172434SM

CLIP, Speed Wire

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1720110SM

MANIFOLD, Exhaust

$

$

Not available

29

Simplicity 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4 G8

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

31

Simplicity 1676183SM

CLAMP, Exhaust

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

33

Simplicity 1704357SM

DUCT, Muffler, Bottom
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

34

Simplicity 1960368SM

NUT, Speed, 1/4-20 Lug
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1720109SM

MUFFLER

$137.99

$

Usually ships in 2-12 days

0

36

Simplicity 1935255SM

NUT, Speed, 5/16-18 LUG

$3.49

$

In Stock, only 3 left!

0

37

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1.000
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

40

Simplicity 1721202SM

BAFFLE, Muffler

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

42

Simplicity 1721987

DECAL, 18HP Brigga & Stratton INTEK

$

$

Not available
