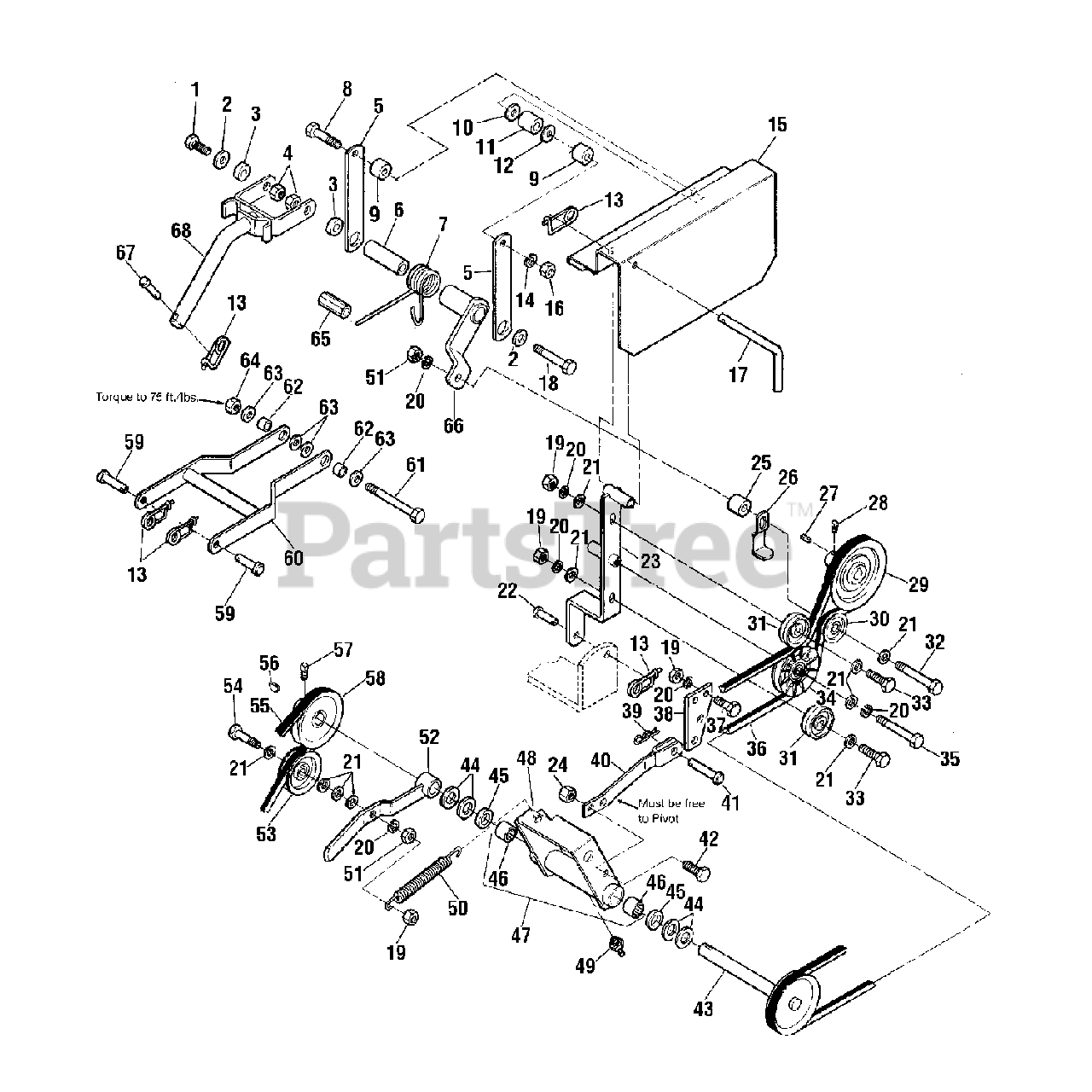

1693578 - Simplicity 36" Tiller Attachment Drive Group Parts Diagram

36" Tiller Attachment

Drive Group Parts Diagram

  • Title

1

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1925125SM

WASHER, 3/8

$6.49

$

In Stock, only 2 left!

0

3

Simplicity 2105346SM

SPACER

$28.99

$

In Stock, only 1 left!

0

4

Simplicity 1930650SM

LOCKNUT, Flange, 7/16-14

$5.49

$

In Stock, only 4 left!

0

5

Simplicity 2105359ASM

SUPPORT

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 2105339ASM

SPACER

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707593SM

SPRING, Torsion

$42.99

$

Usually ships in 2-12 days

0

8

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1666106SM

BUSHING
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

12

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

13

Simplicity 2176012SM

RETAINER PIN
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1707564ASM

GUARD, Belt

$199.99

$

Usually ships in 2-12 days

0

16

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1657562SM

ROD, Pivot

$7.49

$

In Stock, only 1 left!

0

18

Simplicity 1930585SM

CAPSCREW, Hex Head, 7/16-14 x 3-1/2

$7.49

$

In Stock, only 2 left!

0

19

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1708298SM

PIN

$

$

Not available

23

Simplicity 1708961ASM

ARM SUPPORT ASSEMBLY

$104.99

$

Usually ships in 2-12 days

0

24

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

25

Simplicity 1669999SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 1708352ASM

GUARD, Spring

$35.99

$

Usually ships in 2-12 days

0

27

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

28

Simplicity 1960474SM

SETSCREW, 3/8-16 x 1/2

$5.99

$

In Stock, Qty 5

0

29

Simplicity 1706342SM

PULLEY

$101.99

$

Usually ships in 2-12 days

0

30

Simplicity 1721133SM

PULLEY, Idler

$29.99

$

In Stock, Qty 20+

0

31

Simplicity 1706511SM

PULLEY, Idler

Note: Item 31 only used with gear models.

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4

$5.49

$

Usually ships in 2-12 days

0

33

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

34

Simplicity 1706510SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

35

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1706512SM

V-BELT

$40.99

$

Usually ships in 2-12 days

0

37

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

38

Simplicity 1707265A

ANCHOR, Jackshaft
(Superseded to 1707265ASM)

$9.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960033SM

CLIP

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 1706344A

ANCHOR ASSEMBLY
(Superseded to 1706344ASM)

$45.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960116SM

PIN
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

42

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1706362A

PULLEY ASSEMBLY

$

$

Not available

44

Simplicity 1960160SM

WASHER, 3/4

$4.99

$

In Stock, Qty 9

0

45

Simplicity 1611789SM

SEAL

$26.99

$

Usually ships in 2-12 days

0

47

Simplicity 1708180SM

CLEVIS ASSEMBLY, w/Bearings (incl. Ref. Nos. 48 & 46)

$142.99

$

Usually ships in 2-12 days

0

46

Simplicity 2171186SM

BEARING
(Superseded to 2172747SM)

$13.99

$

Usually ships in 2-12 days

0

48

CLEVIS ASSEMBLY, (See Ref. No. 47)

$

$

Not available

49

Simplicity 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

50

Simplicity 2159159SM

SPRING, Extension

$37.99

$

In Stock, only 1 left!

0

51

Simplicity 1960251SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

52

Simplicity 1706508A

ARM ASSEMBLY, Idler
(Superseded to 1706508ASM)

$87.99

$

Usually ships in 2-12 days

0

53

Simplicity 1657712SM

PULLEY, Idler

$

$

Not available

54

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

55

Simplicity 1700059SM

V-BELT

$40.99

$

Usually ships in 2-12 days

0

56

Simplicity 2860403SM

KEY

$10.99

$

In Stock, only 1 left!

0

57

Simplicity 1928721SM

SETSCREW, 5/16-18

$4.99

$

In Stock, only 2 left!

0

58

Simplicity 1706343A

PULLEY ASSEMBLY

$

$

Not available

59

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

60

Simplicity 1651844ASM

FRAME ASSEMBLY

$199.99

$

Usually ships in 2-12 days

0

61

Simplicity 1926159SM

CAPSCREW, Hex Head, 1/2-13 x 5

$10.99

$

In Stock, only 2 left!

0

62

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

63

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

64

Simplicity 1930644SM

LOCKNUT, 1/2-13

$3.49

$

In Stock, Qty 6

0

65

Simplicity 1707599SM

ANCHOR, Spring

$31.99

$

Usually ships in 2-12 days

0

66

Simplicity 2105295ASM

LEVER ASSEMBLY, Clutch

$61.99

$

Usually ships in 2-12 days

0

67

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

68

Simplicity 1707569ASM

LIFT ASSEMBLY

$284.99

$

Usually ships in 2-12 days

0
