1693567 - Simplicity Legacy 60" Garden Tractor, 25hp Hydraulics Group - Auxiliary Lift Parts Diagram

Legacy 60" Garden Tractor, 25hp

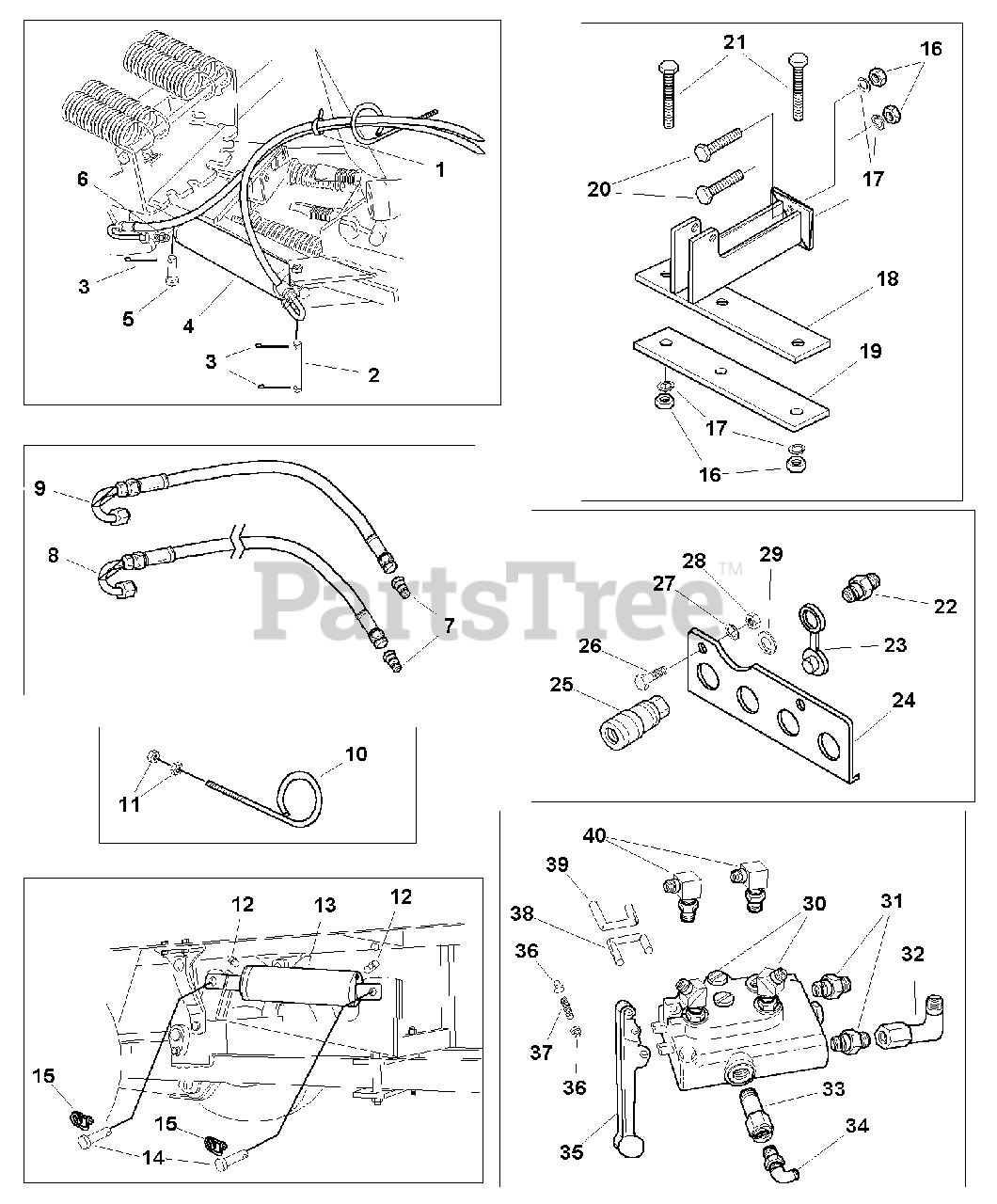

Hydraulics Group - Auxiliary Lift Parts Diagram

  • Title

1

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

2

Simplicity 1960277SM

PIN, Yoke

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

4

Simplicity 1677214SM

ANGLING CYLINDER ASSEMBLY

$

$

Not available

5

Simplicity 1700394SM

PIN, Flat Head, 5/8 x 1-5/8

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 2819171SM

TUBE FITTING, Male

$5.99

$

In Stock, only 2 left!

0

7

Simplicity 2173359SM

NOSE PIECE ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

8

Simplicity 5045503

HOSE ASSEMBLY, 17" Long
(Superseded to 1719392SM)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1719565SM

HOSE ASSEMBLY, 50" Long

$85.99

$

Usually ships in 2-12 days

0

10

Simplicity 1719586SM

HOSE SUPPORT

$16.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 2819171SM

TUBE FITTING, Male

$5.99

$

In Stock, only 2 left!

0

13

Simplicity 1716944SM

LIFT CYLINDER ASSEMBLY

$555.99

$

Usually ships in 2-12 days

0

14

Simplicity 1722819SM

PIN, Clevis

$6.99

$

In Stock, only 2 left!

0

15

Simplicity 2176012SM

PIN, Saftey
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

17

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1717645SM

SUPPORT ASSEMBLY, Cylinder

$

$

Not available

19

Simplicity 1717642ASM

CLAMP, Plate

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 1920328SM

CAPSCREW, Hex Head,1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1960286SM

CAPSCREW, Hex Head,1/2-13 x 3-1/2

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1718436SM

FITTING, Tube Male

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 2173360SM

PLUG, Plastic

$16.99

$

In Stock, Qty 6

0

24

Simplicity 1718987ASM

SUPPORT

$13.99

$

Usually ships in 2-12 days

0

25

Simplicity 2173358SM

COUPLER ASSEMBLY

$74.99

$

In Stock, only 1 left!

0

26

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

28

Simplicity 1916622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 2166017SM

RETAINING RING

$1.99

$

Usually ships in 2-12 days

0

30

Simplicity 1719133SM

FITTING, Hose, 45 Degree

$15.99

$

Usually ships in 2-12 days

0

31

Simplicity 1718435SM

FITTING, Tube Male

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1719132SM

FITTING, Elbow, 90 Degree

$9.99

$

Usually ships in 2-12 days

0

33

Simplicity 1717647SM

PLUG, Pressure

$71.99

$

Usually ships in 2-12 days

0

34

Simplicity 2822523SM

FITTING, Elbow, 90 Degree

$14.99

$

Usually ships in 2-12 days

0

35

Simplicity 1719224SM

LEVER ASSEMBLY

$104.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960140SM

NUT, PUSH

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 2816001SM

PIN

$4.49

$

In Stock, Qty 11

0

38

Simplicity 1719692SM

LINK, L.H.

$25.99

$

Usually ships in 2-12 days

0

39

Simplicity 1719218SM

LINK, R.H.

$20.99

$

Usually ships in 2-12 days

0

40

Simplicity 1675789SM

FITTING, Elbow

$54.99

$

Usually ships in 2-12 days

0
