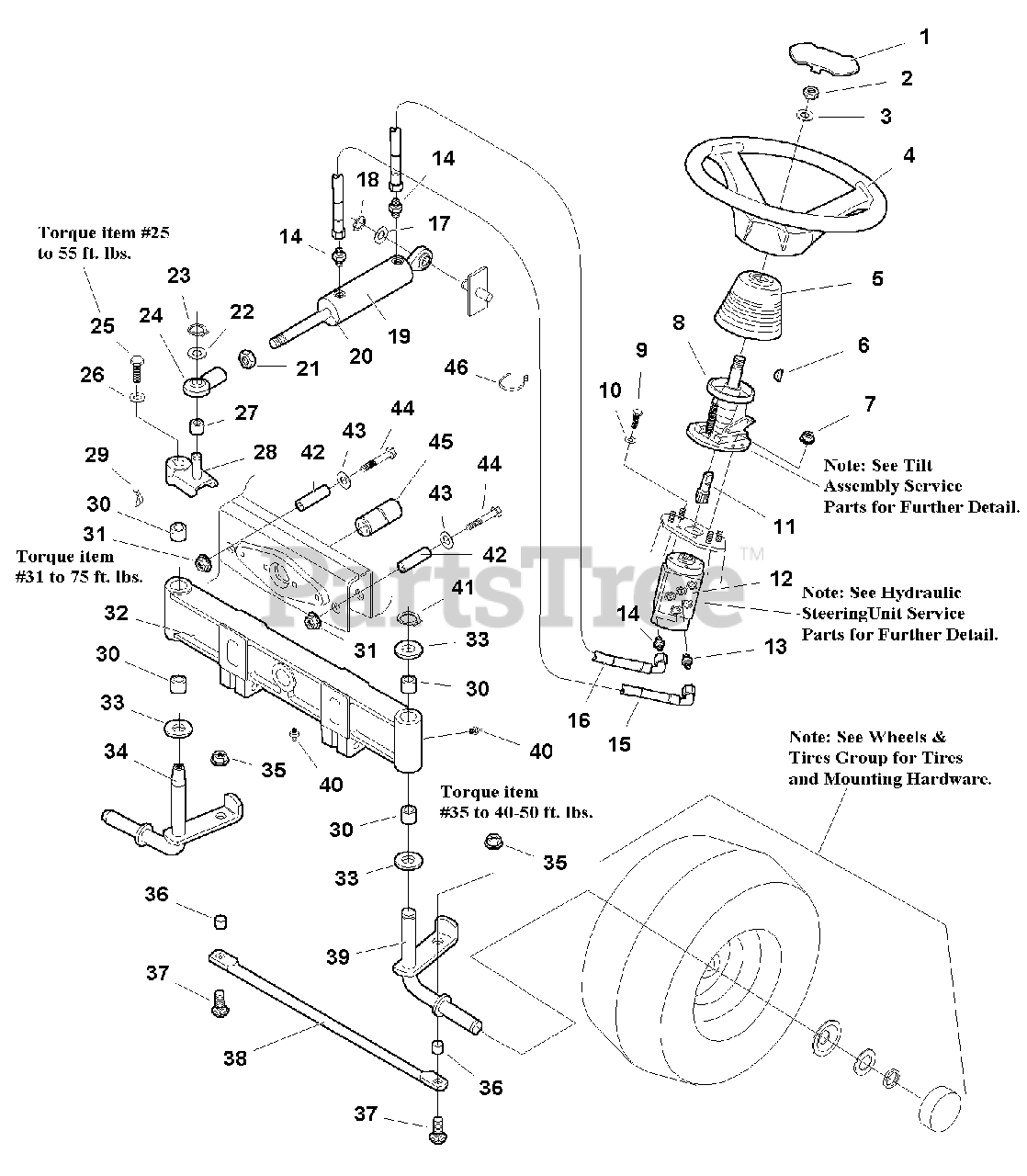

1693561 - Simplicity Legacy Garden Tractor, 25hp V Front Axle & Steering Group Parts Diagram

Legacy Garden Tractor, 25hp V

Front Axle & Steering Group Parts Diagram

  • Title

1

Simplicity 1715920SM

CAP, Steering

$

$

Not available

2

Simplicity 1960576SM

NUT, Hex, 5/8-18

$5.99

$

In Stock, Qty 9

0

3

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1715919SM

WHEEL ASSEMBLY, Steering

$92.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716259SM

BOOT, Tilt

$

$

Not available

6

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

7

Simplicity 1960294SM

NUT, Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

8

Simplicity 1716258SM

TILT ASSEMBLY (See Tilt Assembly Service Parts )
(Superseded to 1687680YP)

$

$

Not available

9

Simplicity 2860444SM

CAPSCREW, M06-1 x 16mm

$2.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

11

Simplicity 1716260SM

ADAPTER, Tilt

$

$

Not available

12

Simplicity 1716257SM

STEERING UNIT, Hydraulic (See Hydraulic Steering Unit Service Parts )

$1310.99

$

Usually ships in 2-12 days

0

13

Simplicity 2831230SM

FITTING, Hydraulic

$18.99

$

In Stock, only 1 left!

0

14

Simplicity 2822522SM

FITTING, Hydraulic

$

$

Not available

15

Simplicity 1716323SM

HOSE ASSEMBLY, Steering, 30" Long

$76.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716322SM

HOSE ASSEMBLY, Steering, 40" Long

$

$

Not available

17

Simplicity 1960020SM

WASHER, Plain, 21/32 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 2827793SM

RING, Retaining #62
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

19

Simplicity 1686926SM

CYLINDER, Steering

$1225.99

$

Usually ships in 2-12 days

0

20

Simplicity 1685444SM

SEAL KIT, Steering Cylinder (Includes Rod Seal, Washer, Retaining Ring, Wiper & Spacer) ( Not Shown)

$

$

Not available

21

Simplicity 1922015SM

NUT, Hex, Jam, 3/4-16

$3.49

$

In Stock, Qty 10

0

22

Simplicity 1960114SM

WASHER, Plain, 3/4 x 1
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2827732SM

RING, Retaining #75
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

24

Simplicity 1717589SM

BALL JOINT ASSEMBLY

$71.99

$

In Stock, only 2 left!

0

25

Simplicity 2823485SM

CAPSCREW, Hex Head, 3/8-16 x .88

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 1663151SM

WASHER, Spring

$14.99

$

Usually ships in 2-12 days

0

27

Simplicity 1679556SM

SPACER, .766 x 1.00 x .62
(Superseded to 703154)

$23.99

$

In Stock, only 2 left!

0

28

Simplicity 1722265ASM

HUB ASSEMBLY, Steering

$164.99

$

Usually ships in 2-12 days

0

29

Simplicity 2830671SM

KEY, Hi-Pro

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 1715767SM

BUSHING, Bronze Spindle, .98 x 1.111

$

$

Not available

31

Simplicity 1930644SM

NUT, Flange Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

32

Simplicity 1715264SM

FRONT AXLE

$1253.99

$

Usually ships in 2-12 days

0

33

Simplicity 1919394SM

WASHER, 1.00
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1715310ASM

SPINDLE ASSEMBLY, RH

$

$

Not available

35

Simplicity 1930650SM

NUT, Hex, Flange Lock 7/16-14

$5.49

$

In Stock, only 4 left!

0

36

Simplicity 1716953SM

SPACER, .453 x 3/4 x .39

$13.99

$

In Stock, only 2 left!

0

37

Simplicity 1960135SM

CARRIAGE BOLT, 7/16-14 x 1-1/4

$6.49

$

In Stock, only 2 left!

0

38

Simplicity 1715313SM

TIE ROD

$

$

Not available

39

Simplicity 1715309ASM

SPINDLE ASSEMBLY, LH

$256.99

$

Usually ships in 2-12 days

0

40

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

41

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1715762SM

SPACER, Tube Axle

$14.99

$

Usually ships in 2-12 days

0

43

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1960286SM

CAPSCREW, Hex Head, 1/2-13 x 3-1/2

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1687103SM

SPACER, Axle Pivot

$

$

Not available

46

Simplicity 1701011SM

TIE

$5.49

$

In Stock, only 2 left!

0
