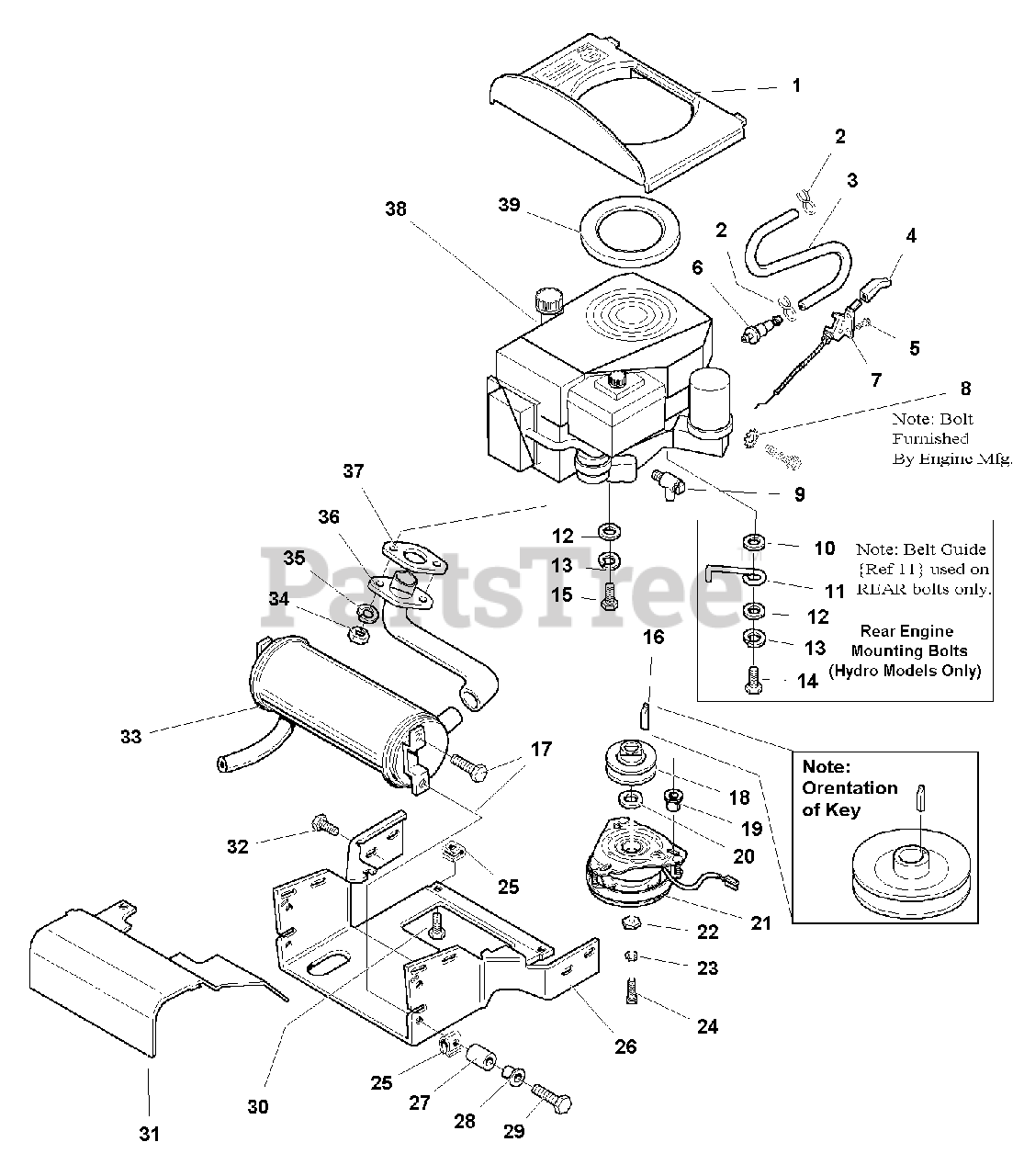

1693530 - Simplicity Regent Lawn Tractor, 16hp Engine Group - Electric Clutch - 15HP & 16HP Kohler Parts Diagram

Regent Lawn Tractor, 16hp

Engine Group - Electric Clutch - 15HP & 16HP Kohler Parts Diagram

  • Title

1

Simplicity 1686918SM

PLENUM, Inlet

$158.99

$

Usually ships in 2-12 days

0

2

Simplicity 2860112SM

HOSE CLAMP

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718678SM

FUEL LINE, 45"

$

$

Not available

4

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

5

Simplicity 1960498SM

CAPSCREW, Plastite Hex Washer Head, 1/4-10 x 5/8

$3.49

$

In Stock, Qty 11

0

6

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 1687058SM

CONTROL, Throttle

$54.99

$

Usually ships in 2-12 days

0

8

Simplicity 1920427SM

LOCKWASHER, External Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1708405SM

DRAIN VALVE, Oil

$38.99

$

Usually ships in 2-12 days

0

10

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 1704419SM

GUIDE, Belt

$7.49

$

In Stock, only 2 left!

0

12

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1950021SM

CAPSCREW, Hex Head, M8 1-1/4 x 40M

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1960405SM

CAPSCREW, Hex Head, M8 1-1/4 x 30M

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 1929000SM

CAPSCREW, Taptite Hex Washer Head, 1/4-20 x 5/16
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1723497SM

PULLEY ASSEMBLY, Engine PTO

$155.99

$

Usually ships in 2-12 days

0

19

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 2173668SM

WASHER, 1.0

$9.49

$

In Stock, only 2 left!

0

21

Simplicity 1686880SM

** ELECTRIC CLUTCH, PTO
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

22

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

23

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 2860631SM

CAPSCREW, Hex Head, 7/16-20- x 3

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1935255SM

SPEED NUT, Tinnerman Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

26

Simplicity 1726976

DUCT, Muffler, Lower
(Superseded to 1726976ASM)

$

$

Not available

27

Simplicity 1705249SM

SPACER, Steel

$

$

Not available

28

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

29

Simplicity 1930595SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

30

Simplicity 1930591SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

31

Simplicity 1723085SM

DUCT, Muffler, Upper

$

$

Not available

32

Simplicity 1924856SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 1717429SM

MUFFLER

$256.99

$

Usually ships in 2-12 days

0

34

NUT, Exhaust

$

$

Not available

35

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1717430SM

PIPE, Manifold

$

$

Not available

37

GASKET, Muffler

$

$

Not available

38

ENGINE, Kohler Command, 15HP/16HP- Engine Model # CV 15S, Type # PS-4190

$

$

Not available

39

Simplicity 1715586SM

RING, Foam

$40.99

$

In Stock, only 2 left!

0
