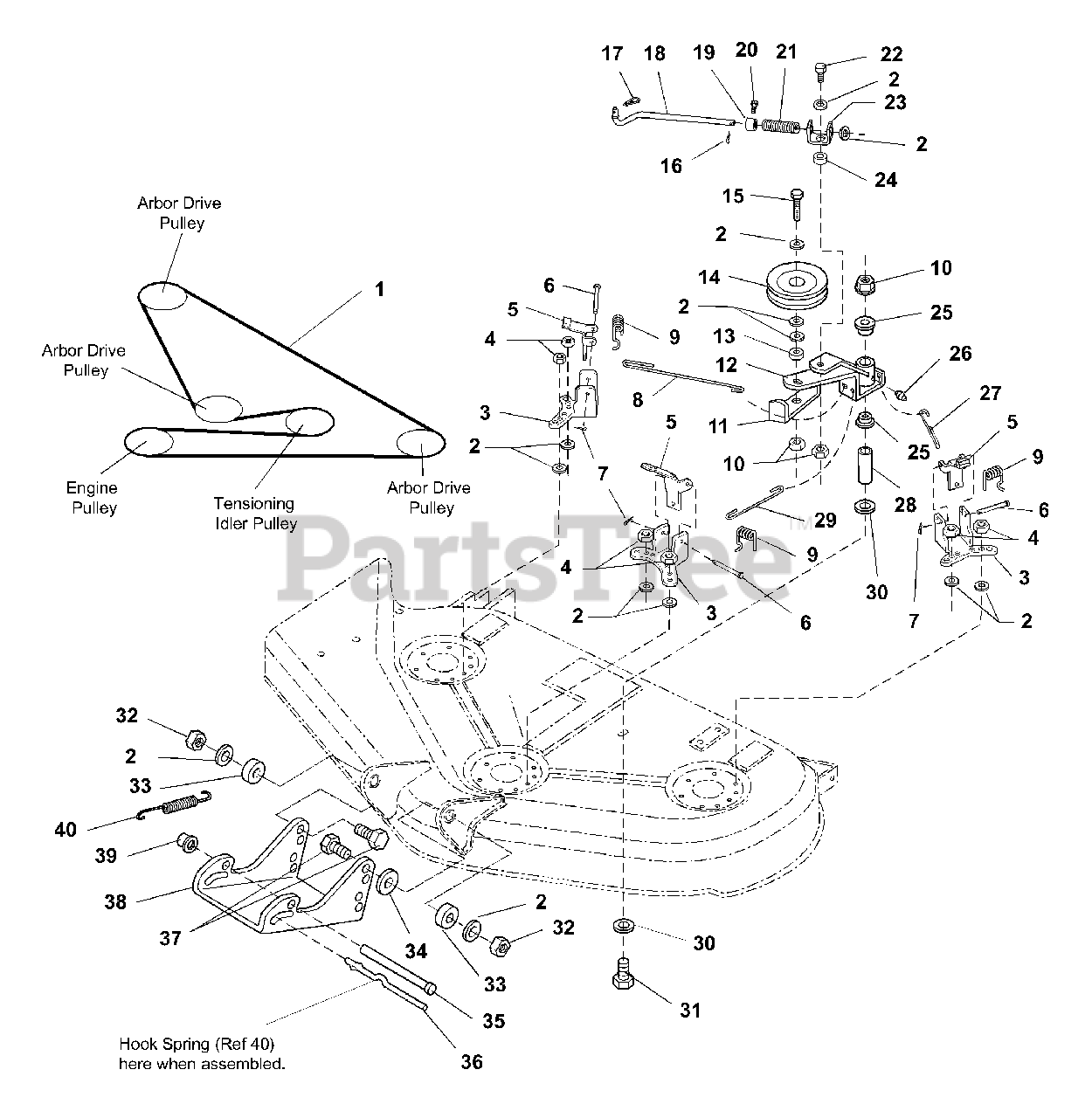

1693526 - Simplicity Express 44" Lawn Tractor, 17hp 44" Mower Deck - Clutch & Support Parts Diagram

Express 44" Lawn Tractor, 17hp

44" Mower Deck - Clutch & Support Parts Diagram

  • Title

1

Simplicity 1719911SM

V-BELT

$56.99

$

In Stock, only 3 left!

0

2

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1719933SM

SUPPORT, Brake Actuator

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1927557SM

NUT, Hex Flange Whix Lock, 5/16

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1719419SM

ACTUATOR & PAD ASSEMBLY, Brake

$

$

Not available

6

Simplicity 1960607SM

PIN, Clevis, 3/4 Hd

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1719944SM

ROD, Brake R.H.

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1719526SM

SPRING

$8.49

$

In Stock, only 1 left!

0

10

Simplicity 1960339SM

NUT, Hex Flange Whix Lock, 3/8

$

$

Not available

11

Simplicity 1719936SM

RETAINER, Belt

$

$

Not available

12

Simplicity 1720630SM

IDLER ARM ASSEMBLY, with Bushings

$66.99

$

Usually ships in 2-12 days

0

13

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2171247SM

PULLEY ASSEMBLY, Idler

$51.99

$

In Stock, Qty 20+

0

15

Simplicity 1923701SM

CAPSCREW, Hex Hd, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1918451SM

COTTER PIN

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1720540SM

ROD, 2 Bends

$22.99

$

Usually ships in 2-12 days

0

19

Simplicity 1719777SM

COLLAR, Set

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 1928721SM

SET SCREW, Square Hd Cup Point, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1720462SM

SPRING

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

23

Simplicity 1719539SM

GUIDE, C

$48.99

$

In Stock, only 1 left!

0

24

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 1 left!

0

25

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

26

Simplicity 2812808SM

FITTING

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1719943SM

ROD, Brake L.H.

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

29

Simplicity 1720539SM

ROD, Brake Center

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 1928957SM

CAPSCREW, Hex Hd, 3/8-16 x 2 3/4

$6.49

$

In Stock, only 2 left!

0

32

Simplicity 1919439SM

NUT, Hex Nylon Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

34

Simplicity 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

35

Simplicity 1713578SM

ROD, Mower Hitch

$15.99

$

In Stock, only 1 left!

0

36

Simplicity 1715759SM

ROD, Latch

$7.99

$

In Stock, Qty 10

0

37

Simplicity 1921968SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 3 left!

0

38

Simplicity 1713561A

HITCH

$

$

Not available

39

Simplicity 1960519SM

NUT, Push, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0
