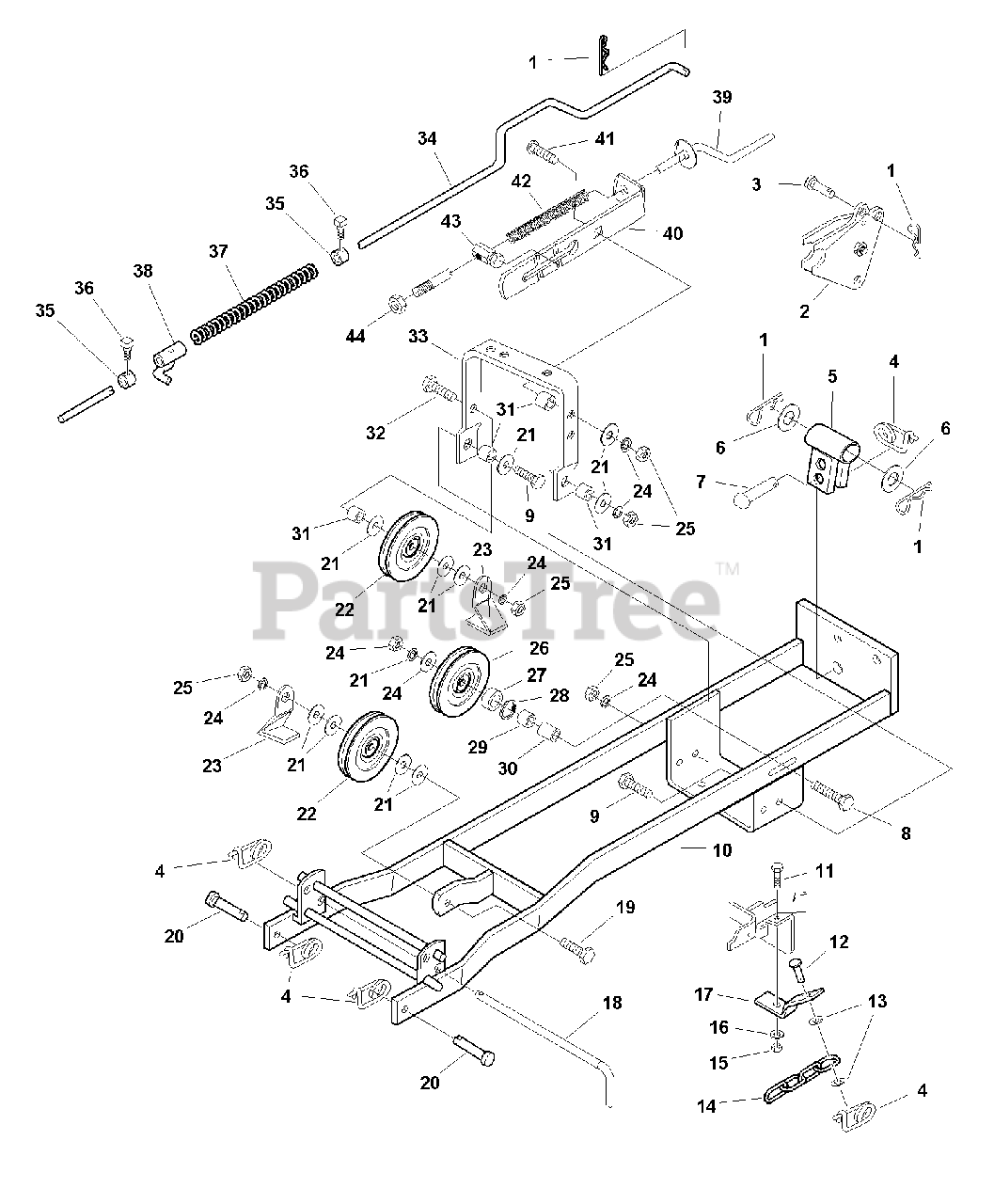

1693500 - Simplicity Snow Thrower Hitch, Hydraulic Electric Lift Hitch, Electric Lift, Diagram 1 Parts Diagram

Snow Thrower Hitch, Hydraulic Electric Lift

Hitch, Electric Lift, Diagram 1 Parts Diagram

  • Title

1

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1686765SM

EXTENSION ASSEMBLY

$170.99

$

Usually ships in 2-12 days

0

3

Simplicity 1729275SM

PIN, Round Head, Drilled

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 2176012SM

RETAINER,Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1707455ASM

SUPPORT ASSEMBLY

$136.99

$

Usually ships in 2-12 days

0

6

Simplicity 1911386SM

WASHER
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2105249SM

PIN, Round Head, Drilled

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960244SM

CAPSCREW, Whizlock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704703ASM

PUSH BAR ASSEMBLY

$159.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 1655651SM

PIN, Round Head, Drilled
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

13

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1669241SM

CHAIN, Link

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1704757SM

BRACKET
(Superseded to 1704757ASM)

$29.99

$

Usually ships in 2-12 days

0

18

Simplicity 1715758SM

ROD

$

$

Not available

19

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

20

Simplicity 2156306SM

PIN, Round Head, Drilled, 3/8 x 1-1/2

$7.49

$

In Stock, Qty 14

0

21

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2171247SM

PULLEY

$51.99

$

In Stock, Qty 20+

0

23

Simplicity 2162115SM

STOP
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

25

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1666287ASM

PULLEY & BEARING ASSEMBLY (Includes ref. nos. 28, 29)

$91.99

$

Usually ships in 2-12 days

0

28

Simplicity 2827695SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

30

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

31

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

32

Simplicity 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1704731ASM

BRACKET

$38.99

$

Usually ships in 2-12 days

0

34

Snapper 1707542SM

LIFT ROD

$

$

Not available

35

Simplicity 1729258SM

COLLAR
(Superseded to 5010477YP)

$

$

Not available

36

Simplicity 1928721SM

SCREW, Set

$4.99

$

In Stock, only 3 left!

0

37

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

38

Simplicity 2171679SM

ROD GUIDE

$76.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723681SM

ROD, Adjustment
(Superseded to 1757604YP)

$92.99

$

Usually ships in 2-12 days

0

40

Simplicity 1722972SM

GUIDE
(Superseded to 1722972ASM)

$79.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

42

Simplicity 1668282SM

SPRING

$22.99

$

Usually ships in 2-12 days

0

43

Simplicity 1704743SM

TRUNION

$37.99

$

Usually ships in 2-12 days

0

44

Simplicity 1930645SM

LOCKNUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
