1693499 - Simplicity Hitch for 42" Dozer Hitch, 42" Blade Parts Diagram

Hitch for 42" Dozer

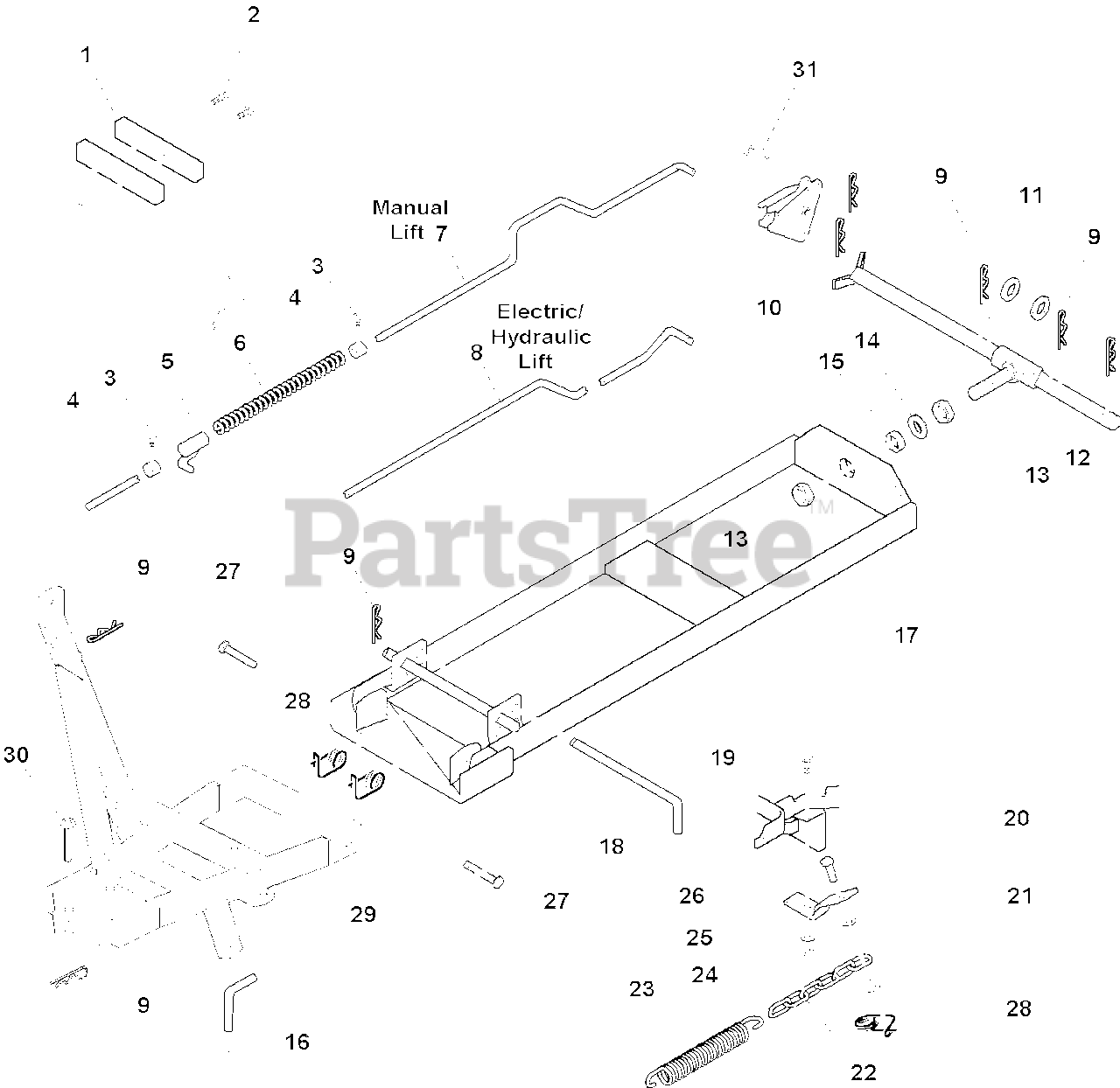

Hitch, 42" Blade Parts Diagram

  • Title

1

Simplicity 1709813SM

BAR
(Superseded to 1709813ASM)

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1960373SM

CAPSCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1928721SM

SCREW, Set, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

4

Simplicity 1729258SM

COLLAR
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 2171679SM

GUIDE ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

6

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

7

Simplicity 1665887SM

ROD, Manual Lift

$74.99

$

Usually ships in 2-12 days

0

8

Snapper 1707542SM

ROD, Eletric / Hydraulic Lift

$

$

Not available

9

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1686765SM

EXTENSION ASSEMBLY KIT

$

$

Not available

11

Simplicity 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1720188SM

TUBE & BOLT ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

13

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

14

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1678549SM

PIVOT PIN

$

$

Not available

17

Simplicity 1720187ASM

REAR PUSH BAR ASSEMBLY

$245.99

$

Usually ships in 2-12 days

0

18

Simplicity 1715758SM

ROD

$

$

Not available

19

Simplicity 1921333SM

CAPSCREW, Hex Head 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1655651SM

PIN
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

21

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 1708266ASM

CHAIN

$9.99

$

Usually ships in 2-12 days

0

23

Simplicity 1675232SM

SPRING

$20.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

26

Simplicity 1704757SM

BRACKET
(Superseded to 1704757ASM)

$29.99

$

Usually ships in 2-12 days

0

27

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

28

Simplicity 2176012SM

RETAINER, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1721045ASM

PUSH BAR ASSEMBLY

$

$

Not available

30

Simplicity 1603602SM

PIN

$9.99

$

Usually ships in 2-12 days

0

31

Simplicity 1729275SM

PIN

$18.99

$

Usually ships in 2-12 days

0
