1693497 - Simplicity 36" Tiller Adapter Kit 36" Tiller Adaptor Kit Parts Diagram

36" Tiller Adapter Kit

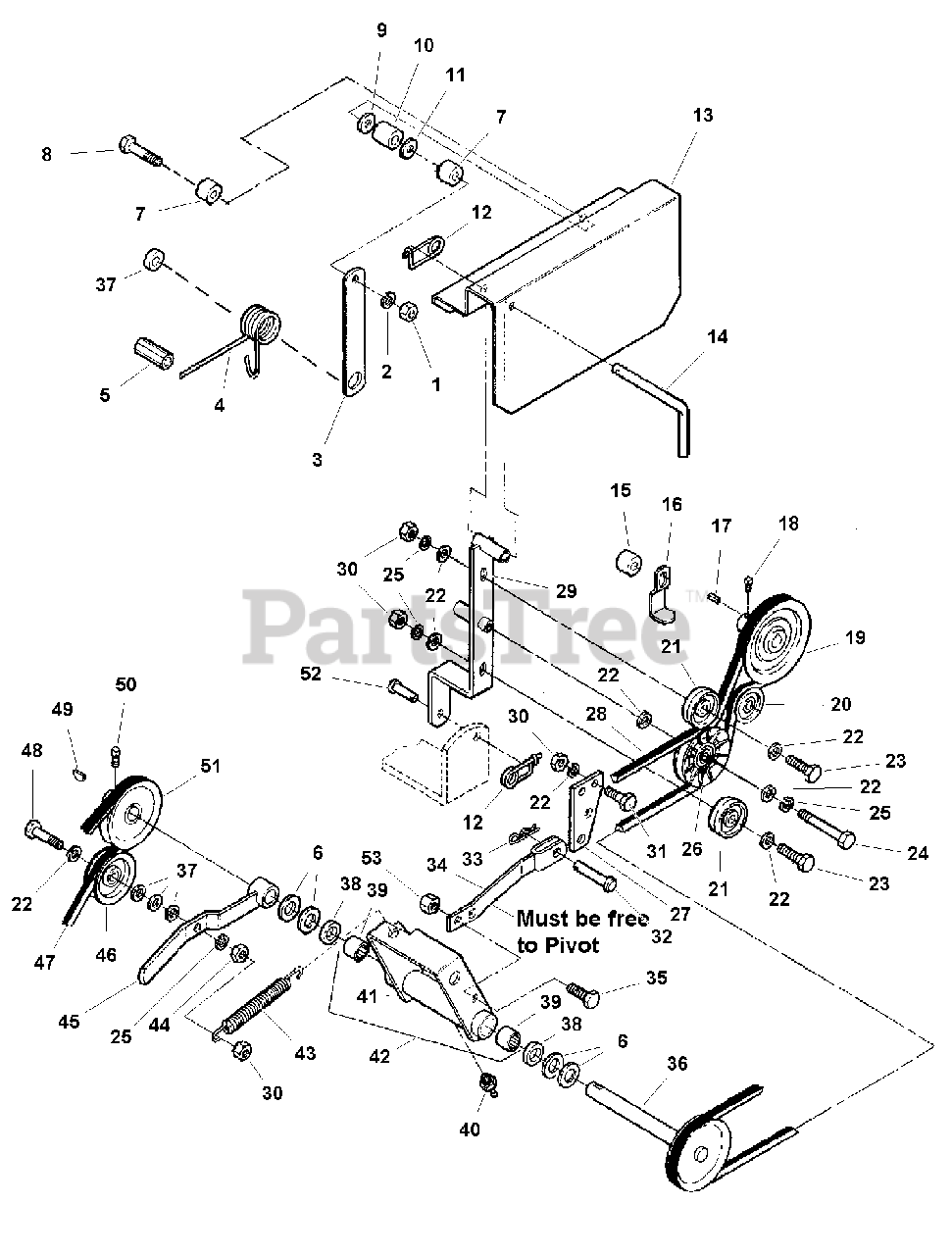

36" Tiller Adaptor Kit Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT-HEX, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER,5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2105359ASM

SUPPORT, Rear Belt Guard

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 1707593SM

SPRING, Torsion

$42.99

$

Usually ships in 2-12 days

0

5

Simplicity 1707599SM

ANCHOR, Spring

$31.99

$

Usually ships in 2-12 days

0

6

Simplicity 2105346SM

SPACER

$28.99

$

In Stock, only 1 left!

0

7

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

10

Simplicity 1666106SM

BUSHING
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

11

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 8

0

12

Simplicity 2176012SM

RETAINER PIN
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1707564ASM

COVER, Belt

$199.99

$

Usually ships in 2-12 days

0

14

Simplicity 1657562SM

ROD

$7.49

$

In Stock, only 1 left!

0

15

Simplicity 1669999SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708352ASM

GUARD, Spring

$35.99

$

Usually ships in 2-12 days

0

17

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

18

Simplicity 1960474SM

SCREW,Set Square Head, Cup Point, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 7

0

19

Simplicity 1706342SM

PULLEY, 9inch OD

$101.99

$

Usually ships in 2-12 days

0

20

Simplicity 1721133SM

PULLEY, Idler, 2-3/4 OD

$29.99

$

In Stock, Qty 20+

0

21

Simplicity 1706511SM

PULLEY, Idler, 1-7/8 OD

$32.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1921971SM

CAPSCREW,Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

24

Simplicity 1920415SM

CAPSCREWHex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

26

Simplicity 1706510SM

PULLEY, Idler, 4 OD

$32.99

$

In Stock, only 2 left!

0

27

Simplicity 1707265A

ANCHOR, Jackshaft
(Superseded to 1707265ASM)

$9.99

$

Usually ships in 2-12 days

0

28

Simplicity 1706512SM

V-BELT

$40.99

$

Usually ships in 2-12 days

0

29

Simplicity 1708961ASM

SHAFT & SUPPORT ASSEMBLY

$104.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960251SM

NUT, Hex Center Lock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

31

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

32

Simplicity 1960116SM

PIN, Yoke, Drilled
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

33

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1706344A

CLEVIS & BAR ASSEMBLY, Anchor
(Superseded to 1706344ASM)

$45.99

$

Usually ships in 2-12 days

0

35

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

36

Simplicity 1706362A

PULLEY & SHAFT ASSEMBLY

$

$

Not available

37

Simplicity 1960160SM

WASHER

$4.99

$

In Stock, Qty 11

0

38

Simplicity 1611789SM

SEAL, Oil

$26.99

$

Usually ships in 2-12 days

0

39

Simplicity 2171186SM

BEARING
(Superseded to 2172747SM)

$13.99

$

Usually ships in 2-12 days

0

40

Simplicity 2812808SM

FITTING, LUBE

$4.49

$

In Stock, Qty 20+

0

41

CLEVIS ASSEMBLY, (See Ref No. 42)

$

$

Not available

42

Simplicity 1708180SM

CLEVIS & HOUSING ASSEMBLY, w/ Bearings (Includes Ref. Nos. 39 & 40)

$142.99

$

Usually ships in 2-12 days

0

43

Simplicity 2159159SM

SPRING, Extension

$37.99

$

In Stock, only 1 left!

0

44

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 1706508A

ARM & HUB ASSEMBLY
(Superseded to 1706508ASM)

$87.99

$

Usually ships in 2-12 days

0

46

Simplicity 1657712SM

PULLEY, Idler, 3-5/8 OD

$

$

Not available

47

Simplicity 1700059SM

V-BELT

$40.99

$

Usually ships in 2-12 days

0

48

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

49

Simplicity 2860403SM

KEY, WOODRUFF, #61

$10.99

$

In Stock, only 1 left!

0

50

Simplicity 1928721SM

SCREW, Set, Square Head Cup Point, 5/16-18 x 1/2, G8

$4.99

$

In Stock, Qty 5

0

51

Simplicity 1706343A

PULLEY & HUB ASSEMBLY

$

$

Not available

52

Simplicity 1708298SM

PIN, Round Head, Drilled

$

$

Not available

53

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0
