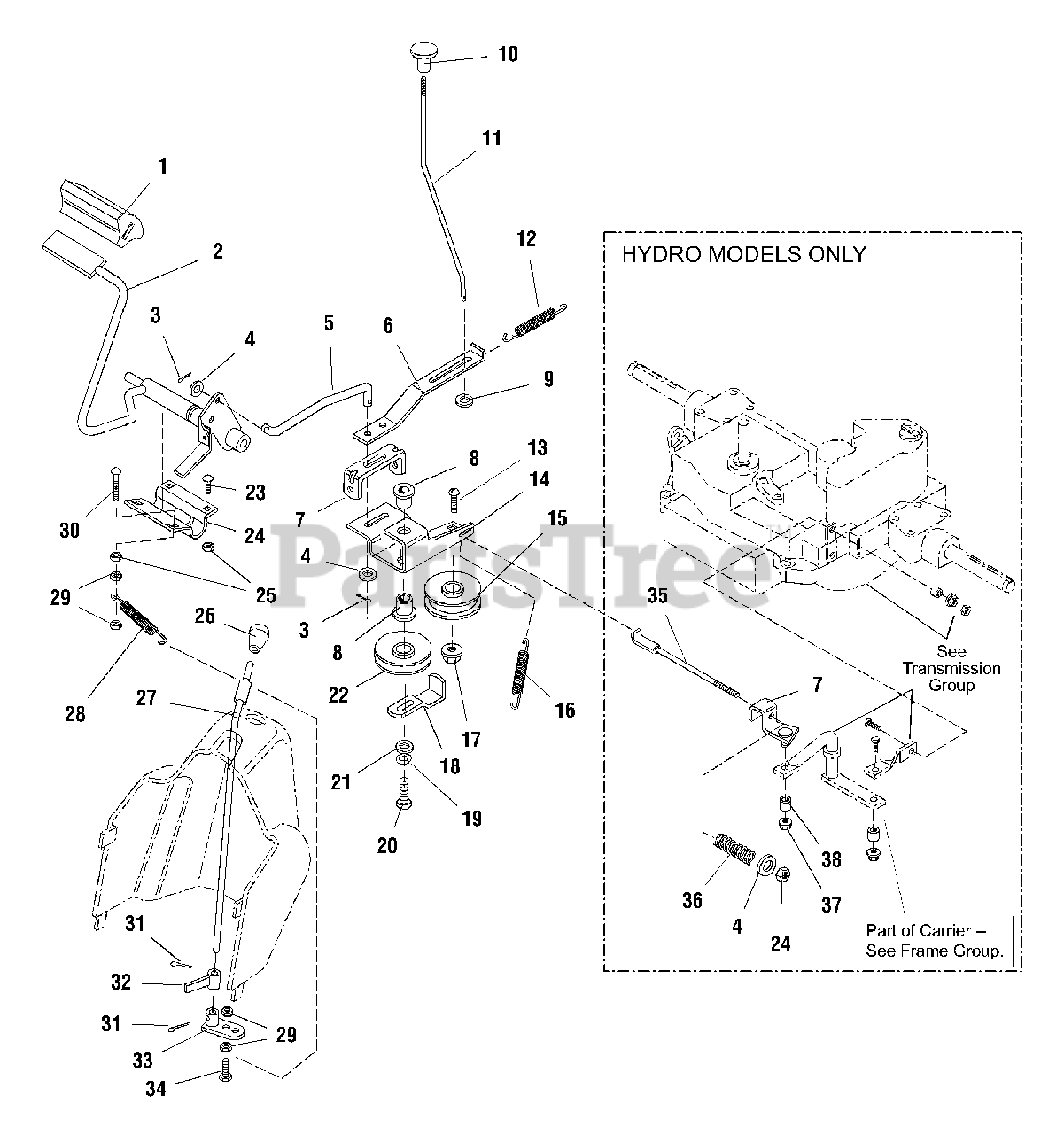

1693459 - Simplicity Express 38" Lawn Tractor, 15.5hp Controls & Linkage Group Parts Diagram

Express 38" Lawn Tractor, 15.5hp

Controls & Linkage Group Parts Diagram

  • Title

1

Snapper 1704849SM

PAD, Brake

$

$

Not available

2

Simplicity 1717994ASM

FOOT PEDAL ASSEMBLY
(Superseded to 1686716SM)

$598.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

Note: (Gear Models Only)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

Note: (Hydro Models Only)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 5

0

5

Simplicity 1713432SM

ROD, Clutch

Note: (Gear Models Only)

$81.99

$

Usually ships in 2-12 days

0

5

Simplicity 1717115SM

ROD, Clutch

Note: (Hydro Models Only)

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 1717439SM

LEVER, Parking Brake

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1713785SM

GUIDE, Brake Rod

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1717728SM

GUIDE, Brake Rod

Note: (Hydro Models Only)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1663114SM

BUSHING, Plastic, 5/8

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1713855SM

KNOB, Plastic, Parking Brake

$12.99

$

Usually ships in 2-12 days

0

11

Simplicity 1719470SM

ROD, Parking Brake

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 2165068SM

SPRING, Parking Brake

$12.99

$

In Stock, Qty 5

0

13

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

14

Simplicity 1717438SM

BRACKET, Idler

$23.99

$

Usually ships in 2-12 days

0

15

Simplicity 1721133SM

PULLEY, Backside

$29.99

$

In Stock, Qty 20+

0

16

Simplicity 1719590SM

SPRING, Idler

$

$

Not available

17

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1708352ASM

GUARD

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 1921971SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

21

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1721134SM

PULLEY, Idler, V

$30.99

$

In Stock, Qty 20+

0

23

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

24

Simplicity 1713784SM

CLAMP, Tube

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1713843SM

KNOB, Plastic, Gear Shift

$12.99

$

Usually ships in 2-12 days

0

27

Simplicity 1719532SM

SHAFT, PTO Clutch

$18.99

$

Usually ships in 2-12 days

0

28

Simplicity 1729619SM

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

30

Simplicity 1960555SM

CARRIAGE BOLT, 5/16-18 x 1 1/2

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 2816001SM

ROLL PIN

$4.49

$

In Stock, Qty 11

0

32

Simplicity 1719422A

HUB & BAR ASSEMBLY, PTO Clutch

$

$

Not available

33

Simplicity 1719534A

ARM & HUB ASSEMBLY, PTO Clutch

$

$

Not available

34

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1717440SM

ROD, Brake

Note: (Hydro Models Only)

$40.99

$

Usually ships in 2-12 days

0

36

Simplicity 1708360SM

SPRING

Note: (Hydro Models Only)

$13.99

$

In Stock, only 4 left!

0

37

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

Note: (Hydro Models Only)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1703900SM

SPACER

Note: (Hydro Models Only)

$7.99

$

Usually ships in 2-12 days

0
