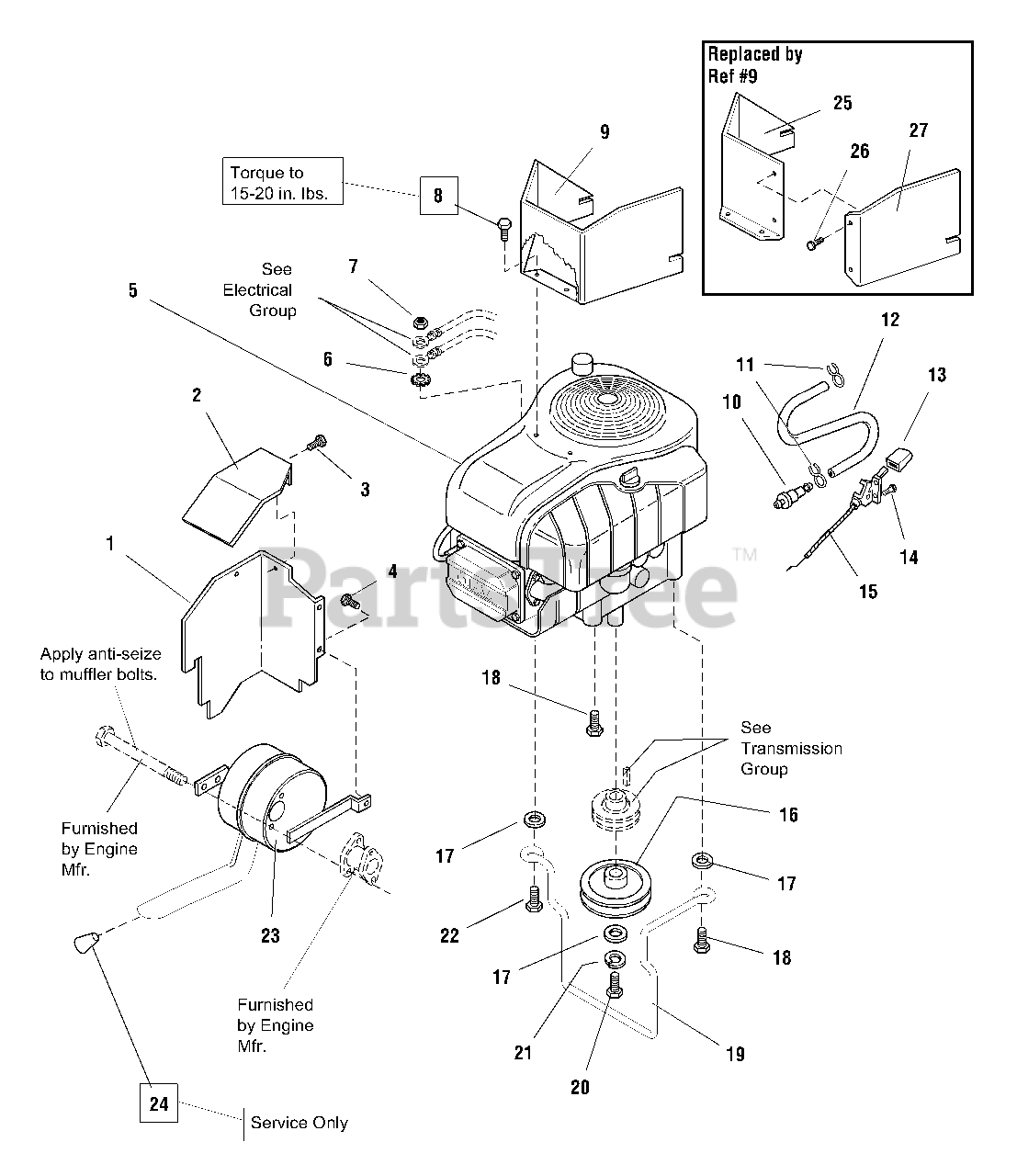

1693452 - Simplicity Express Lawn Tractor, 14.5hp Engine Group - 14.5HP, 15.5HP & 17HP B&S Intek Parts Diagram

Express Lawn Tractor, 14.5hp

Engine Group - 14.5HP, 15.5HP & 17HP B&S Intek Parts Diagram

  • Title

1

Simplicity 1720040SM

SHIELD, Muffler Side

$17.99

$

Usually ships in 2-12 days

0

2

Simplicity 1720039SM

SHIELD, Muffler Top
(Superseded to 1720039ASM)

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960001SM

CAPSCREW, Hex Washer Hd, Plastite, #10 - 14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

4

Simplicity 1924856SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

5

ENGINE, 14.5HP Briggs & Stratton INTEK

$

$

Not available

5

ENGINE, 15.5HP Briggs & Stratton INTEK

$

$

Not available

5

ENGINE, 17HP Briggs & Stratton INTEK

$

$

Not available

6

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2816950SM

NUT, Hex, 3/8-16 NC-2B
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

8

Simplicity 1931648SM

CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 1721131SM

BAFFLE, Heat
(Superseded to 1721131ASM)

$18.99

$

Usually ships in 2-12 days

0

10

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 2860112SM

HOSE CLAMP

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1718678SM

HOSE, Fuel, 1/4 ID x 1/2 OD x 12

$

$

Not available

13

Simplicity 1719768SM

KNOB, Throttle (Red)

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960498SM

CAPSCREW, Plastite Hex Washer Hd, 1/4-10 x 5/8

$3.49

$

In Stock, Qty 13

0

15

Simplicity 1687058SM

CONTROL, Throttle

$54.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719456SM

PULLEY (with Hub)

$81.99

$

Usually ships in 2-12 days

0

17

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

18

Simplicity 704010

CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1719460SM

GUIDE, Belt

$25.99

$

In Stock, only 1 left!

0

20

Simplicity 1960370SM

CAPSCREW, Hex Hd, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 2860361SM

CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

23

Simplicity 1719458SM

MUFFLER ASSEMBLY

$259.99

$

Usually ships in 2-12 days

0

24

Simplicity 1719961SM

SCREEN, Exhaust

$25.99

$

In Stock, only 1 left!

0

25

Simplicity 1721131SM

BAFFLE, Heat
(Superseded to 1721131ASM)

Note: Replaced by Reference 9.

$18.99

$

Usually ships in 2-12 days

0

26

Simplicity 1960001SM

CAPSCREW, Plastite Hex Washer Hd, #10-14 x 1/2
(Superseded to 703062)

Note: Replaced by Reference 9.

$4.49

$

In Stock, Qty 12

0

27

Simplicity 1721131SM

BAFFLE, Engine, LH
(Superseded to 1721131ASM)

Note: Replaced by Reference 9.

$18.99

$

Usually ships in 2-12 days

0
