1693447 - Simplicity Rear PTO, 540 RPM P.T.O., Rear 540 RPM Parts Diagram

Rear PTO, 540 RPM

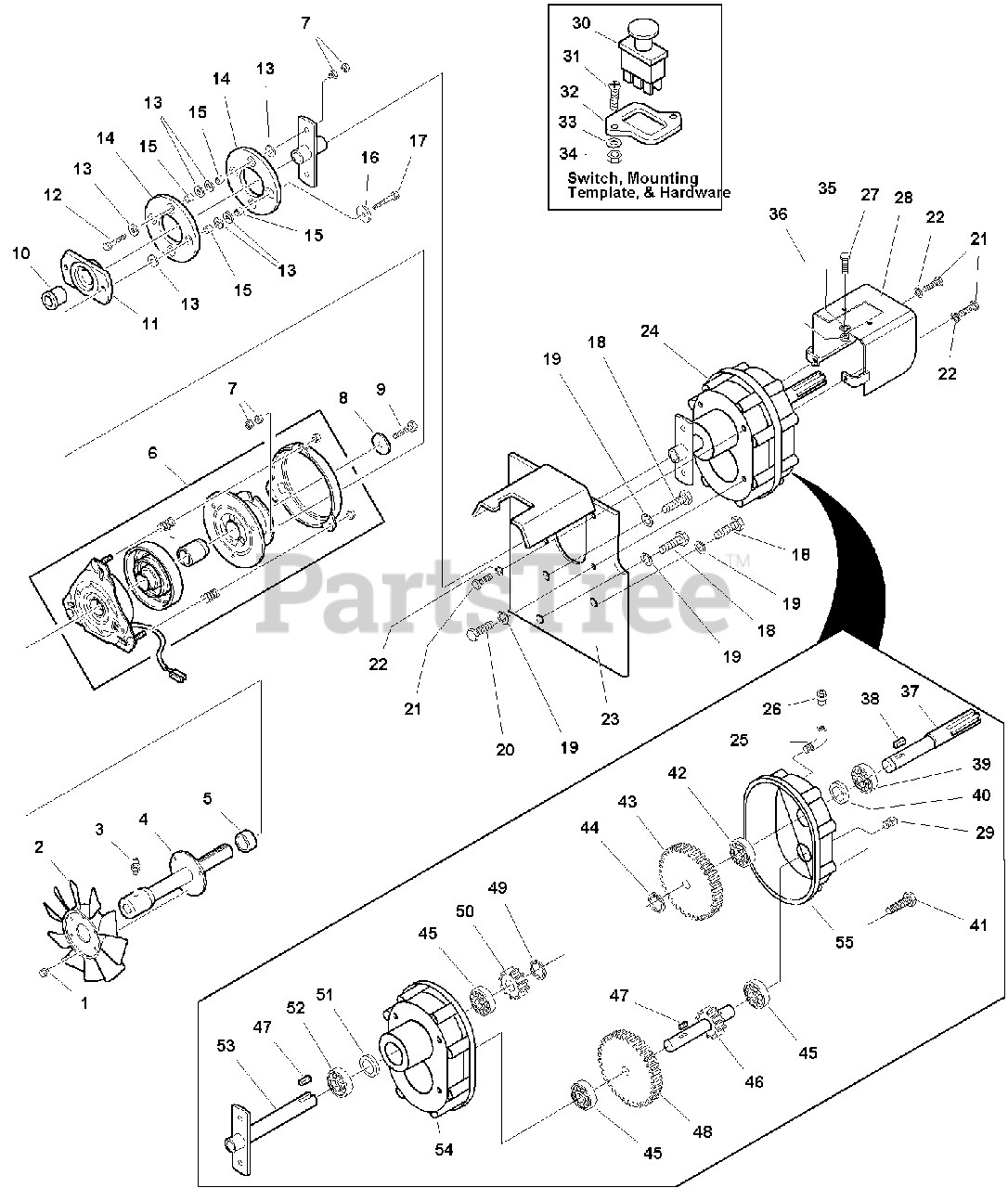

P.T.O., Rear 540 RPM Parts Diagram

  • Title

1

Simplicity 1929477SM

SCREW, Taptite, 10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 1716387SM

FAN, 10 Blade

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

4

Simplicity 1686745SM

SHAFT ASSEMBLY (Incl. Ref. No. 5)

$112.99

$

Usually ships in 2-12 days

0

5

Simplicity 1719106SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709199SM

CLUTCH, Eletric, Sun Star Rear P.T.O.

$638.99

$

Usually ships in 2-12 days

0

7

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Simplicity 1960534SM

WASHER

$

$

Not available

9

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 1676998SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1676999SM

HUB ASSEMBLY

$119.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

13

Simplicity 1919326SM

WASHER, 5/1 6

$4.49

$

In Stock, Qty 8

0

14

Simplicity 1676829SM

COUPLING

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1933468SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

18

Simplicity 1921024SM

CAPSCREW, Hex Head, 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

19

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

21

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

22

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

23

Simplicity 1719886SM

MOUNTING PLATE

$201.99

$

Usually ships in 2-12 days

0

24

Simplicity 1719889SM

GEAR BOX

$1217.99

$

Usually ships in 2-12 days

0

25

Simplicity 1720060SM

ELBOW

$

$

Not available

26

Simplicity 1720059SM

VENT ASSEMBLY

$

$

Not available

27

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 1719890SM

SHIELD ASSEMBLY

$

$

Not available

29

Simplicity 2801652SM

PLUG

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1716332SM

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

31

Simplicity 1930531SM

SCREW, Truss Head, 10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1718803SM

MOUNTING TEMPLATE

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960096SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1930627SM

NUT, Hex, 10-32

$2.99

$

Usually ships in 2-12 days

0

35

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1720056SM

SHAFT

$296.99

$

Usually ships in 2-12 days

0

38

Simplicity 1720057SM

KEY

$26.99

$

Usually ships in 2-12 days

0

39

Simplicity 1720065SM

BEARING

$100.99

$

Usually ships in 2-12 days

0

40

Simplicity 1720066SM

SEAL

$6.99

$

Usually ships in 2-12 days

0

41

Simplicity 1720058SM

CAPSCREW, Hex Head, Metric

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 1720062SM

BEARING

$68.99

$

Usually ships in 2-12 days

0

43

Simplicity 1720063SM

GEAR

$444.99

$

Usually ships in 2-12 days

0

44

Simplicity 1720064SM

RETAINING RING

$7.49

$

Usually ships in 2-12 days

0

45

Simplicity 1720067SM

BEARING

$32.99

$

Usually ships in 2-12 days

0

46

Simplicity 1720068SM

SHAFT & GEAR ASSEMBLY

$421.99

$

Usually ships in 2-12 days

0

47

Simplicity 1720069SM

KEY

$8.99

$

Usually ships in 2-12 days

0

48

Simplicity 1720070SM

GEAR

$366.99

$

Usually ships in 2-12 days

0

49

Simplicity 1720072SM

RETAINING RING

$10.99

$

Usually ships in 2-12 days

0

50

Simplicity 1720073SM

GEAR

$182.99

$

Usually ships in 2-12 days

0

51

Simplicity 1720074SM

SEAL

$23.99

$

Usually ships in 2-12 days

0

52

Simplicity 1720075SM

BEARING

$61.99

$

Usually ships in 2-12 days

0

53

Simplicity 1720076SM

SHAFT, Input

$

$

Not available

54

GEAR CASE HALF, Not Available

$

$

Not available

55

GEAR CASE HALF, Not Available

$

$

Not available
