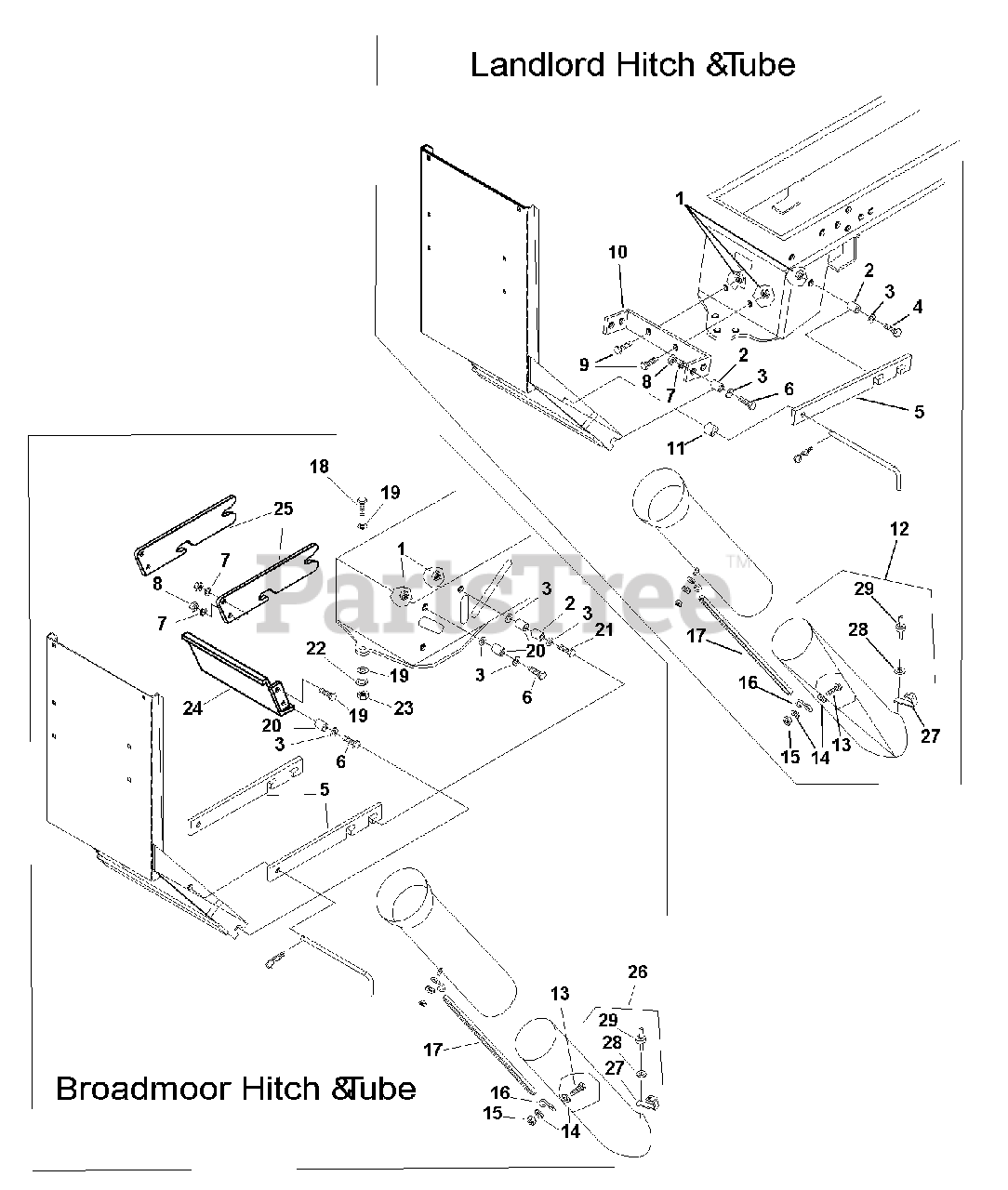

1693440 - Simplicity Clean Sweep Triple Grass Catcher Hitch & Tube Group, Triple Catcher Parts Diagram

Clean Sweep Triple Grass Catcher

Hitch & Tube Group, Triple Catcher Parts Diagram

  • Title

1

Simplicity 1928352SM

NUT, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

3

Simplicity 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

4

Simplicity 1921968SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/8

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1719801ASM

SUPPORT ARM

$29.99

$

In Stock, only 2 left!

0

6

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

8

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1719800SM

SUPPORT
(Superseded to 1719800AYP)

$47.99

$

Usually ships in 2-12 days

0

11

Simplicity 1701772SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

12

Simplicity 1719805SM

TUBE & CLIP ASSEMBLY (Incl. Ref. Nos. 27, 28 & 29)

$

$

Not available

13

Simplicity 1921961SM

CAPSCREW, Hex Head, 1/4 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1920397SM

LOCKNUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1672689SM

HOOK, "S"

$31.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172744SM

STRAP

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 1926192SM

WASHER, 1/2

$19.99

$

Usually ships in 2-12 days

0

20

Simplicity 1665699SM

SPACER

$7.49

$

In Stock, only 1 left!

0

21

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

24

Simplicity 1703744ASM

BRACKET

$

$

Not available

25

Simplicity 1703743ASM

SUPPORT

$

$

Not available

26

Simplicity 1719719SM

TUBE & CLIP ASSEMBLY (Incl. Ref. Nos. 27, 28 & 29)

$170.99

$

Usually ships in 2-12 days

0

27

Simplicity 1705063SM

CLIP
(Superseded to 1705063YP)

$

$

Not available

28

Simplicity 1910531SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0
