1693409 - Simplicity Sovereign Garden Tractor, 18hp Control Valve Service Parts Parts Diagram

Sovereign Garden Tractor, 18hp

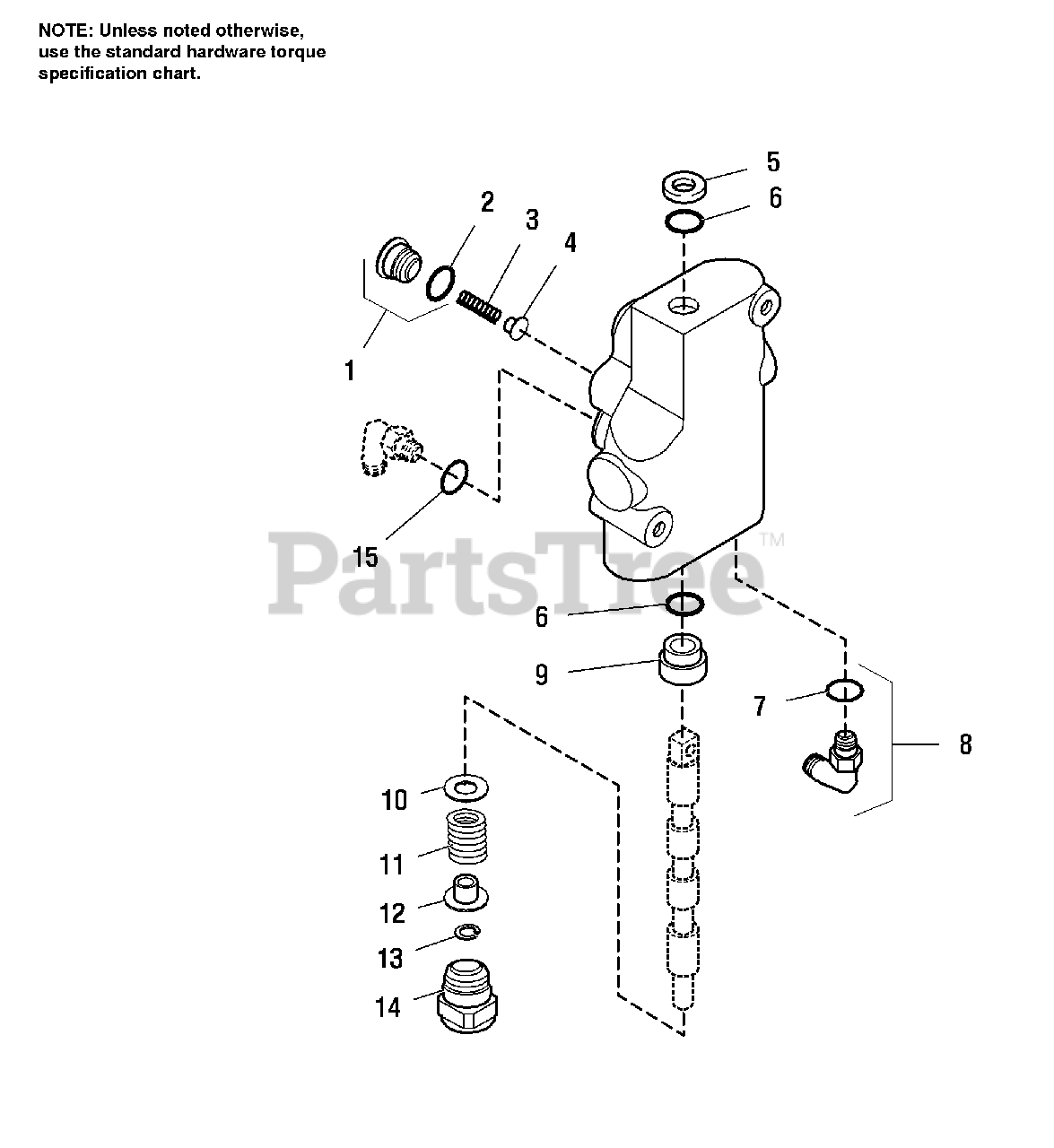

Control Valve Service Parts Parts Diagram

  • Title

1

Simplicity 2174131SM

PLUG ASSEMBLY

Note: (Includes O-Ring, Ref. No. 2)

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 2174133SM

O-RING

Note: Included in Seal Repair Kit P/N 1667826

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 2174134SM

SPRING

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 1714130A

PLUNGER

$

$

Not available

5

Simplicity 1679138SM

WIPER PLUG
(Superseded to 1679732SM)

Note: Included in Seal Repair Kit P/N 1667826

$7.49

$

Usually ships in 2-12 days

0

6

Simplicity 1679142SM

O-RING

Note: Included in Seal Repair Kit P/N 1667826

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 2821349SM

O-RING

Note: Included in Seal Repair Kit P/N 1667826

$3.49

$

In Stock, only 1 left!

0

8

Simplicity 2823905SM

FITTING, 90°.

$61.99

$

Usually ships in 2-12 days

0

9

Simplicity 174137

BUSHING

$

$

Not available

10

Simplicity 1673836SM

WASHER

$

$

Not available

11

Simplicity 1673835SM

SPRING

$

$

Not available

12

Simplicity 1673833SM

SPACER

Note: Included in Seal Repair Kit P/N 1667826

$20.99

$

Usually ships in 2-12 days

0

13

Simplicity 1673837SM

RETAINING RING

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1673854

CAP ASSEMBLY

$

$

Not available

15

Simplicity 1667825SM

O-RING

Note: Included in Seal Repair Kit P/N 1667826

$3.99

$

In Stock, only 1 left!

0

Simplicity 1667826

Seal Repair Kit

$

$

Not available
