1693307 - Simplicity Coronet Rear-Engine Riding Mower, 14hp Transmission SERVICE PARTS - Hydro-Gear 311-0500 (1708579) Parts Diagram

Coronet Rear-Engine Riding Mower, 14hp

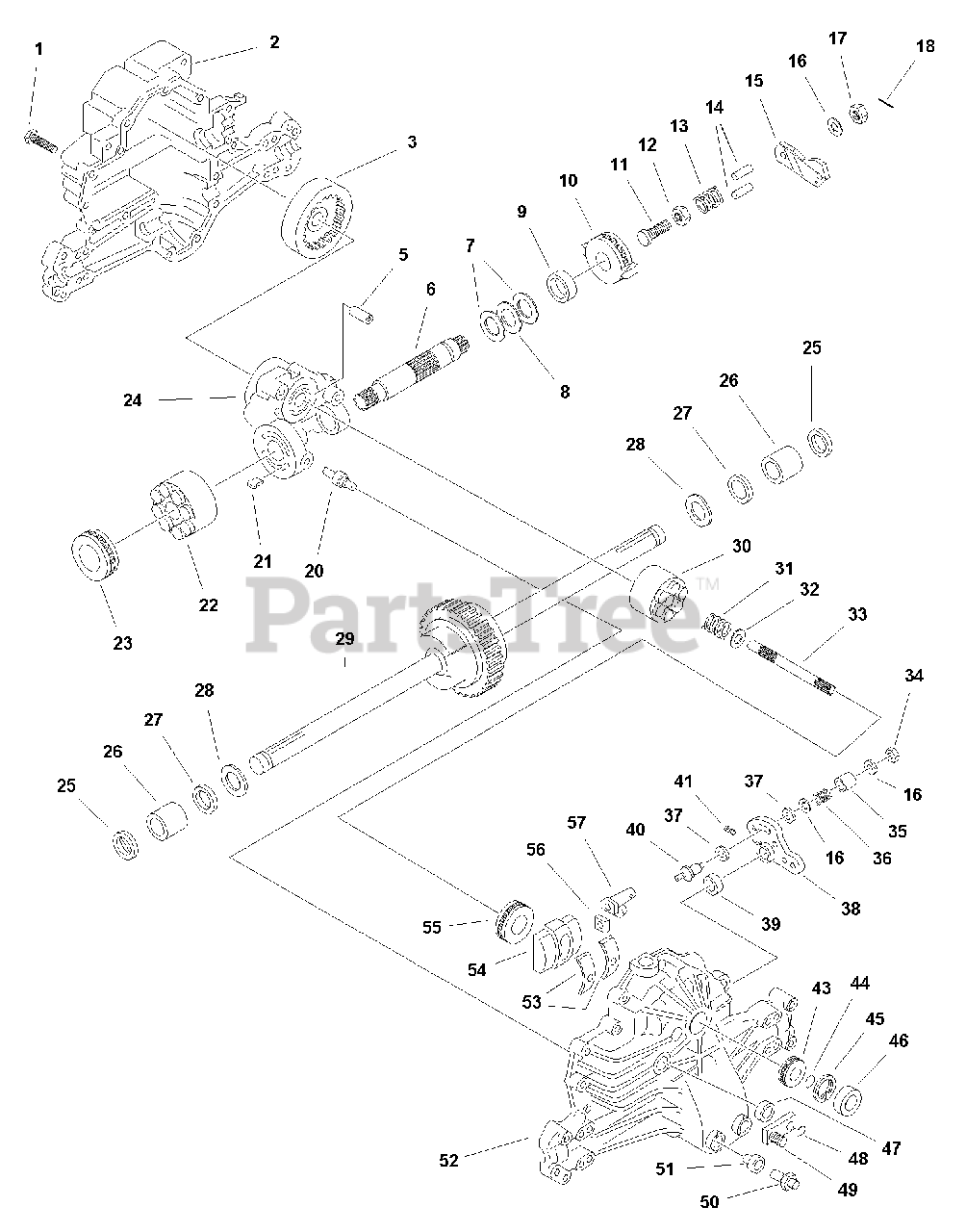

Transmission SERVICE PARTS - Hydro-Gear 311-0500 (1708579) Parts Diagram

  • Title

1

Simplicity 1715164SM

BOLT, 1/4-20 x 1-3/8

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1715182SM

HOUSING, Lower

$

$

Not available

3

Simplicity 1715157SM

OIL FILTER ELEMENT

$69.99

$

Usually ships in 2-12 days

0

5

Simplicity 1715165SM

PIN

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1715149SM

SHAFT, Motor

$159.99

$

Usually ships in 2-12 days

0

7

Simplicity 1715156SM

WASHER

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1715155SM

RING, Retaining

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1715154SM

SEAL, Lip .26 x .42 x .8

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 1715159SM

BRAKE ROTOR/STATOR KIT

$91.99

$

Usually ships in 2-12 days

0

11

Simplicity 1715158SM

BOLT, 5/16-18 x 1-3/4

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 1709919SM

NUT, Hex, Lock, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714808SM

COMPRESSION SPRING

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 1709915SM

PIN, Actuating

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 1709916SM

ARM, Actuating

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 1924874SM

WASHER, 7/16 x 7/8 x 1/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1714431SM

CASTLE NUT, 5/16-24

$6.99

$

In Stock, only 1 left!

0

18

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1715152SM

ACTUATOR, Bypass

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 1715233SM

BYPASS PLATE

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1715276SM

BLOCK, Cylinder (Motor) Assembly

$210.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715274SM

BEARING, Thrust .42 x .68 x .16

$43.99

$

Usually ships in 2-12 days

0

24

Simplicity 1715797SM

CENTER SECTION ASSEMBLY

$433.99

$

Usually ships in 2-12 days

0

25

Simplicity 1715170SM

SEAL, Wiper

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715181SM

SLEEVE BEARING

$17.99

$

In Stock, only 2 left!

0

27

Simplicity 1715162SM

SEAL, 3/4 x 1-1/4 x 1/4

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 1715180SM

WASHER, 3/4 x 1.5 x .13

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1715179SM

DIFFERENTIAL ASSEMBLY

$455.99

$

Usually ships in 2-12 days

0

30

Snapper 1715146SM

BLOCK, Cylinder Pump Assembly

$126.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715171SM

SPRING, Block

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 1715172SM

WASHER, Block Thrust

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 1715163SM

SHAFT, Input

$99.99

$

Usually ships in 2-12 days

0

34

Simplicity 1715178SM

NUT, Hex Lock, 5/16-24

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1714740SM

SPACER

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1714739SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

37

Simplicity 1714737SM

PUCK, Dampener

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1714738SM

ARM, Control

$29.99

$

Usually ships in 2-12 days

0

39

Simplicity 1709908SM

SEAL, Lip

$8.99

$

Usually ships in 2-12 days

0

40

Simplicity 1714741SM

STUD, 5/16-24

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1709910SM

SET SCREW

$6.99

$

Usually ships in 2-12 days

0

43

Simplicity 1715142SM

BEARING, Shaft Ball

$32.99

$

Usually ships in 2-12 days

0

44

Simplicity 1715141SM

RING, Wire, Retaining

$5.99

$

Usually ships in 2-12 days

0

45

Simplicity 1706174SM

RING, Retaining

$5.49

$

Usually ships in 2-12 days

0

46

Simplicity 1706173SM

SEAL, Lip

$8.99

$

In Stock, only 1 left!

0

47

Simplicity 1709921SM

SEAL, Lip, 1.0 x .25 x .7

$8.99

$

Usually ships in 2-12 days

0

48

Simplicity 1709922SM

RING, Retaining

$6.49

$

Usually ships in 2-12 days

0

49

Simplicity 1709907SM

ARM, Bypass

$20.99

$

Usually ships in 2-12 days

0

50

Simplicity 1709905SM

BREATHER ASSEMBLY

$6.99

$

Usually ships in 2-12 days

0

51

Simplicity 1654930SM

BUSHING, Vent

$7.99

$

In Stock, Qty 20+

0

52

Simplicity 1715183SM

UPPER HOUSING ASSEMBLY

$324.99

$

Usually ships in 2-12 days

0

53

Simplicity 1715143SM

BEARING, Cradle

$23.99

$

Usually ships in 2-12 days

0

54

Simplicity 1715145SM

SWASHPLATE, Variable

$106.99

$

Usually ships in 2-12 days

0

55

Simplicity 1715144SM

BEARING, Thrust .30 x .52 x .13

$27.99

$

Usually ships in 2-12 days

0

56

Simplicity 1715148SM

GUIDE, Slot

$

$

Not available

57

Simplicity 1715147SM

ARM, Trunnion

$92.99

$

Usually ships in 2-12 days

0
