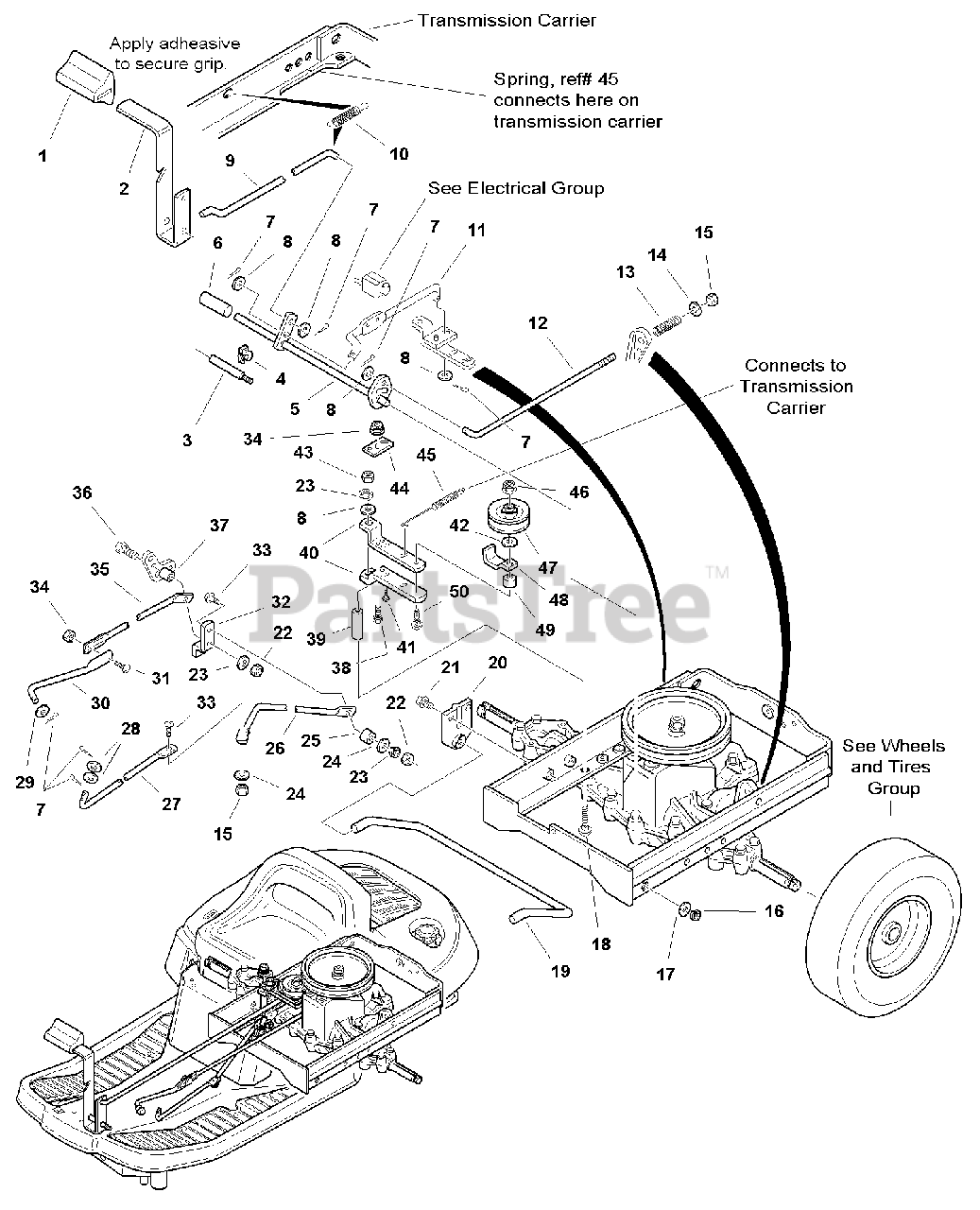

1693305 - Simplicity Coronet Rear-Engine Riding Mower, 13hp Controls Group - Hydro Transaxle - Hydro-Gear 311-0500 Parts Diagram

Coronet Rear-Engine Riding Mower, 13hp

Controls Group - Hydro Transaxle - Hydro-Gear 311-0500 Parts Diagram

  • Title

1

Snapper 1704849SM

PAD, Pedal

$

$

Not available

2

Simplicity 1723348ASM

LEVER, Clutch

$17.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708409SM

PIVOT, Brake

$12.99

$

In Stock, only 1 left!

0

4

Simplicity 1708554SM

KLIP RING, 3/4

$2.99

$

In Stock, only 1 left!

0

5

Simplicity 1709231SM

PIVOT SHAFT ASSEMBLY

$38.99

$

In Stock, only 1 left!

0

6

Simplicity 1709850SM

TUBE

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1918447SM

COTTER PIN, 7/64 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0

9

Simplicity 1706260SM

ROD, Clutch, Front

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 2159106SM

SPRING, Return
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

11

Simplicity 1709220SM

ROD, Clutch, Rear

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709224SM

ROD, Brake

$9.49

$

Usually ships in 2-12 days

0

13

Simplicity 1709097SM

SPRING, Compression

$92.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960044SM

WASHER, 13/32 x 1-1/4 x 5/64

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 1919438SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, Qty 12

0

17

Simplicity 1924361SM

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1931342SM

CARRIAGE BOLT, 5/15-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

19

Simplicity 1708366SM

TORSION BAR

$29.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708367SM

BRACKET, Torsion Bar

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924856SM

CAPSCREW Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

26

Simplicity 1709223SM

ROD, Control

$20.99

$

Usually ships in 2-12 days

0

27

Simplicity 1709228SM

ROD, Shift, Front

$25.99

$

Usually ships in 2-12 days

0

28

Simplicity 1924359SM

WASHER, Plain, 1/2 x 1 x 1/32

$2.49

$

Usually ships in 2-12 days

0

29

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1709217SM

ROD, Return, Front

$10.99

$

Usually ships in 2-12 days

0

31

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1709226SM

LEVER, Control
(Superseded to 1709226ASM)

$6.49

$

Usually ships in 2-12 days

0

33

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 X 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

34

Simplicity 1930641SM

NUT, Hex, Flange Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1709244SM

ROD, Return, Rear

$15.99

$

Usually ships in 2-12 days

0

36

Simplicity 1922127SM

CAPSCREW, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709227SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

38

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1709345SM

SPACER, Pivot

$20.99

$

Usually ships in 2-12 days

0

40

Simplicity 1709221SM

CLEVIS, Idler Bracket

$9.99

$

Usually ships in 2-12 days

0

41

Simplicity 1927429SM

CAPSCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

42

Simplicity 1918266SM

WASHER
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

43

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1709222SM

PLATE

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1666759SM

SPRING

$

$

Not available

46

Simplicity 1960251SM

NUT, Hex, Jam, Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

47

Simplicity 1668827SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

48

Simplicity 1708352ASM

GUARD, Spring

$35.99

$

Usually ships in 2-12 days

0

49

Simplicity 1674440SM

SPACER, 25/64 x 5/8 x 11/16

$18.99

$

In Stock, only 1 left!

0

50

Simplicity 1931355SM

CARRIAGE BOLT, 3/8-16 x 2-/1/4

$5.99

$

In Stock, Qty 11

0
