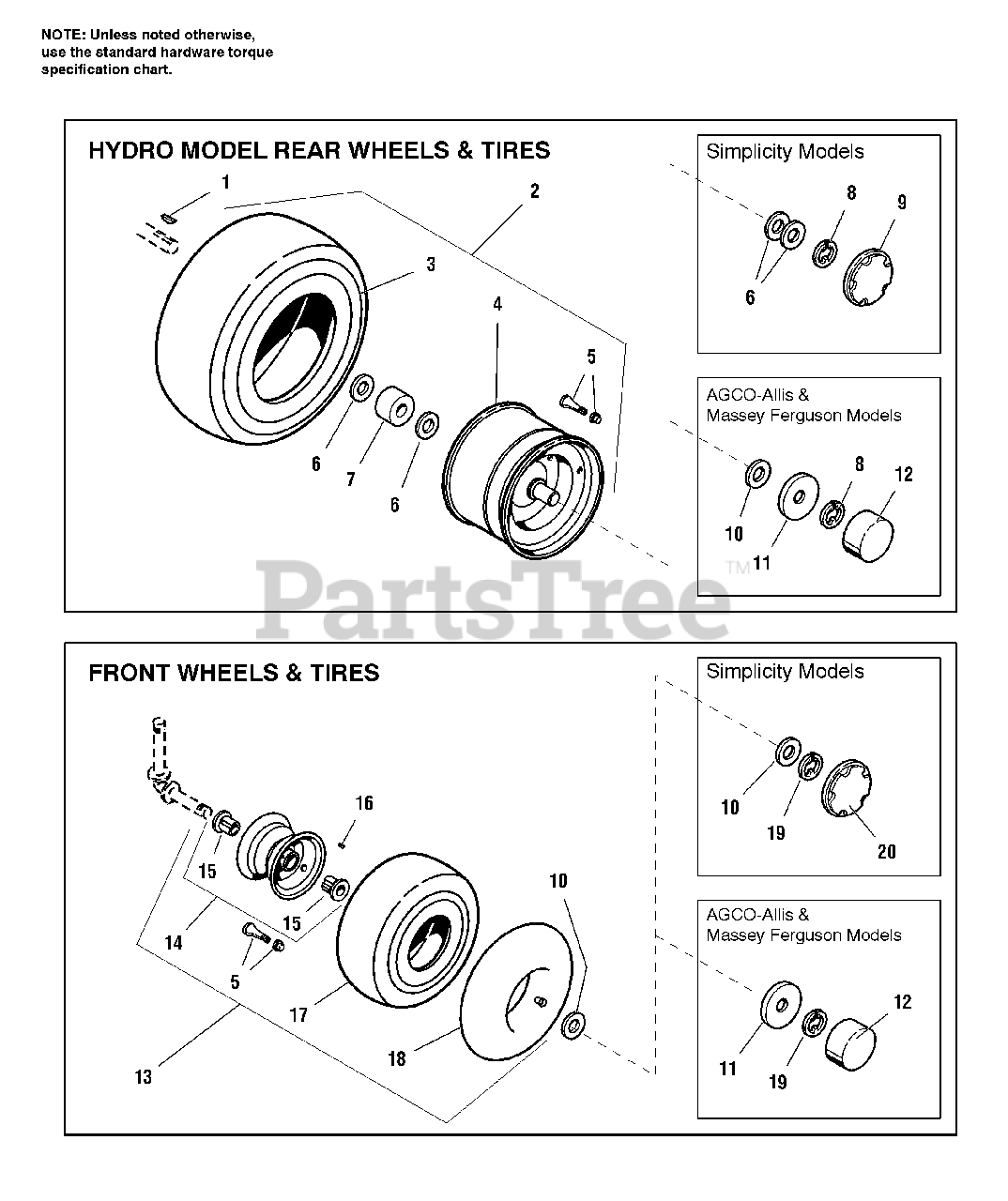

1693261 - Simplicity Regent Lawn Tractor, 16hp Hydro Models Wheels & Tires Parts Diagram

Regent Lawn Tractor, 16hp

Hydro Models Wheels & Tires Parts Diagram

  • Title

1

Simplicity 1717749SM

KEY
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 1716131SM

REAR WHEEL & TIRE ASSEMBLY - 16HP Models, 20x8.00-8

Note: (Includes Refs. 3, 4, & 5)

$

$

Not available

2

Simplicity 1716166SM

REAR WHEEL & TIRE ASSEMBLY - 14HP Models, 18x8.50-8

Note: (Includes Refs. 3, 4, & 5)

$208.99

$

Usually ships in 2-12 days

0

3

Simplicity 1715031SM

TIRE, 18 x 8.50-8" - 14HP Models

$132.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716133SM

TIRE, 20 x 8.00-8" - 16HP Models

$

$

Not available

4

Simplicity 1716132SM

WHEEL, Metallic Gray, 8" , Rear

$

$

Not available

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 2860202SM

WASHER, 3/4 (Qty. 8)

Note: Used on Simplicity models, 4 on AGCO-Allis & Massey Ferguson Models)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1717451SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 17

0

9

Simplicity 1714926SM

HUB CAP, 7-3/4" Black, Rear Scalloped

Note: (Simplicity Models)

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960114SM

WASHER , 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1701435SM

RETAINER, Cap

Note: (AGCO-Allis & Massey Ferguson Models)

$13.99

$

In Stock, only 1 left!

0

12

Simplicity 1676519SM

CAP, Axle

Note: (AGCO-Allis & Massey Ferguson Models)

$8.49

$

In Stock, Qty 20+

0

13

Simplicity 1713466SM

FRONT WHEEL & TIRE ASSEMBLY - 14HP Models, 15x6.00-6

Note: (Includes Refs. 5, 14, 15, 16 & 17)

$

$

Not available

13

Simplicity 1716129

FRONT WHEEL & TIRE ASSEMBLY - 16HP Models, 15x6.50-6

Note: (Includes Refs. 5, 14, 15, 16 & 17)

$

$

Not available

14

Simplicity 1726301SM

WHEEL ASSEMBLY, Metallic Gray, 6" , Front

Note: (Includes Refs. 15 & 16)

$82.99

$

In Stock, only 1 left!

0

15

Simplicity 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

16

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1715030SM

TIRE, 15 x 6.00-6" - 14HP Models

$88.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716130SM

TIRE, 15 x 6.50-6" - 16HP Models
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

18

Simplicity 1664090SM

TUBE, Tire 6", Front

$26.99

$

In Stock, only 3 left!

0

19

Simplicity 1611710SM

KLIPRING, 3/4

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1714925SM

HUB CAP, 5-3/4, Black, Front Scalloped

Note: (Simplicity Models)

$8.49

$

Usually ships in 2-12 days

0
