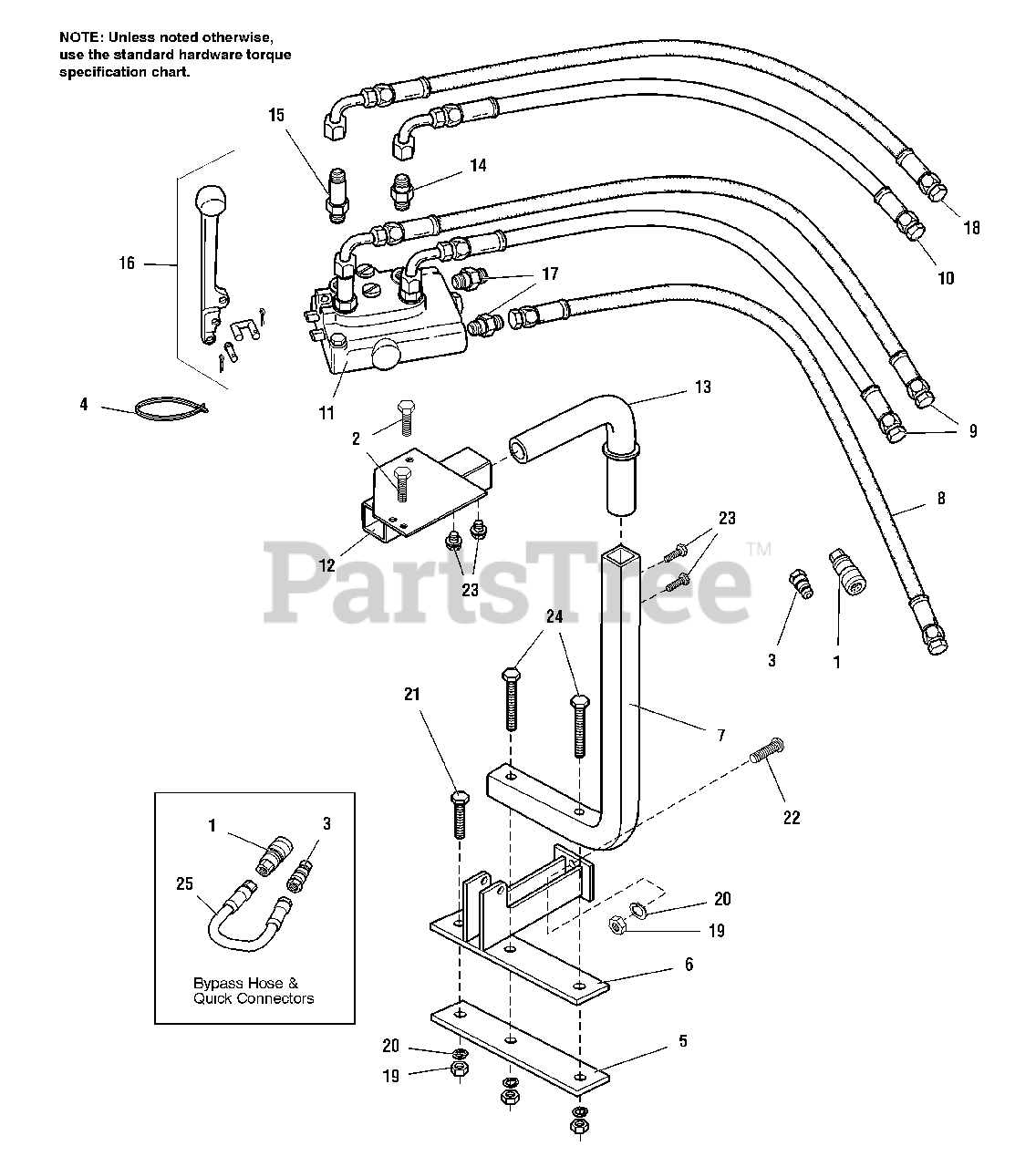

1693238 - Simplicity Hydraulic Lift & Angling Kit Hydraulic Lift & Angling Kit - Control Tower Group Parts Diagram

Hydraulic Lift & Angling Kit

Hydraulic Lift & Angling Kit - Control Tower Group Parts Diagram

  • Title

1

Simplicity 2173358SM

QUICK CONNECTOR, Female Nose Piece Assembly

$74.99

$

In Stock, only 1 left!

0

2

Simplicity 1960571SM

CAPSCREW, Hex Washer Hd, Taptite, 1/4-20 X 1-3/4

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 2173359SM

QUICK CONNECTOR, Male Nose Piece Assembly

$43.99

$

Usually ships in 2-12 days

0

4

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 1717642ASM

PLATE, Clamp, 5/16

$15.99

$

Usually ships in 2-12 days

0

6

Simplicity 1717645SM

SUPPORT ASSEMBLY

$

$

Not available

7

Simplicity 1717648SM

TOWER ASSEMBLY

$

$

Not available

8

Simplicity 1718415SM

HOSE, Hydraulic, 23/32" x 40"

$72.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718416SM

HOSE, Hydraulic, 1/2" x 75"

$125.99

$

Usually ships in 2-12 days

0

10

Simplicity 1718417SM

HOSE, Hydraulic, 1/2" x 67"

$131.99

$

Usually ships in 2-12 days

0

11

Simplicity 1718419SM

CONTROL VALVE, Two Spool, Power Beyond

$1037.99

$

Usually ships in 2-12 days

0

12

Simplicity 1718429SM

PLATE ASSEMBLY, Control Valve Mounting

$

$

Not available

13

Simplicity 1718431SM

TUBE ASSEMBLY, Control Tower Pivot

$44.99

$

Usually ships in 2-12 days

0

14

Simplicity 2822522SM

FITTING, Tube, Male, Short

$

$

Not available

15

Simplicity 2831230SM

FITTING, Tube, Male, Tall

$18.99

$

In Stock, only 1 left!

0

16

Simplicity 1718434SM

KIT, Control Lever & Pin

$

$

Not available

17

Simplicity 1718435SM

FITTING, Tube, Male

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1718442SM

HOSE, Hydraulic, 1/2 x 69"

$

$

Not available

19

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

20

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1960286SM

CAPSCREW, Hex Hd, 1/2-13 X 3-1/2

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1920328SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1921332SM

CAPSCREW, Hex Hd, 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

24

Simplicity 1926159SM

CAPSCREW, Hex Hd, 1/2-13 x 5, Gr 8

$10.99

$

In Stock, only 2 left!

0

25

Simplicity 1718578SM

HOSE, Hydraulic, 1/2" x 11"

$31.99

$

Usually ships in 2-12 days

0
