1693229 - Simplicity 50" Zero-Turn Mower, 18hp Frame, Body & Fuel System Group - 18HP Models Parts Diagram

50" Zero-Turn Mower, 18hp

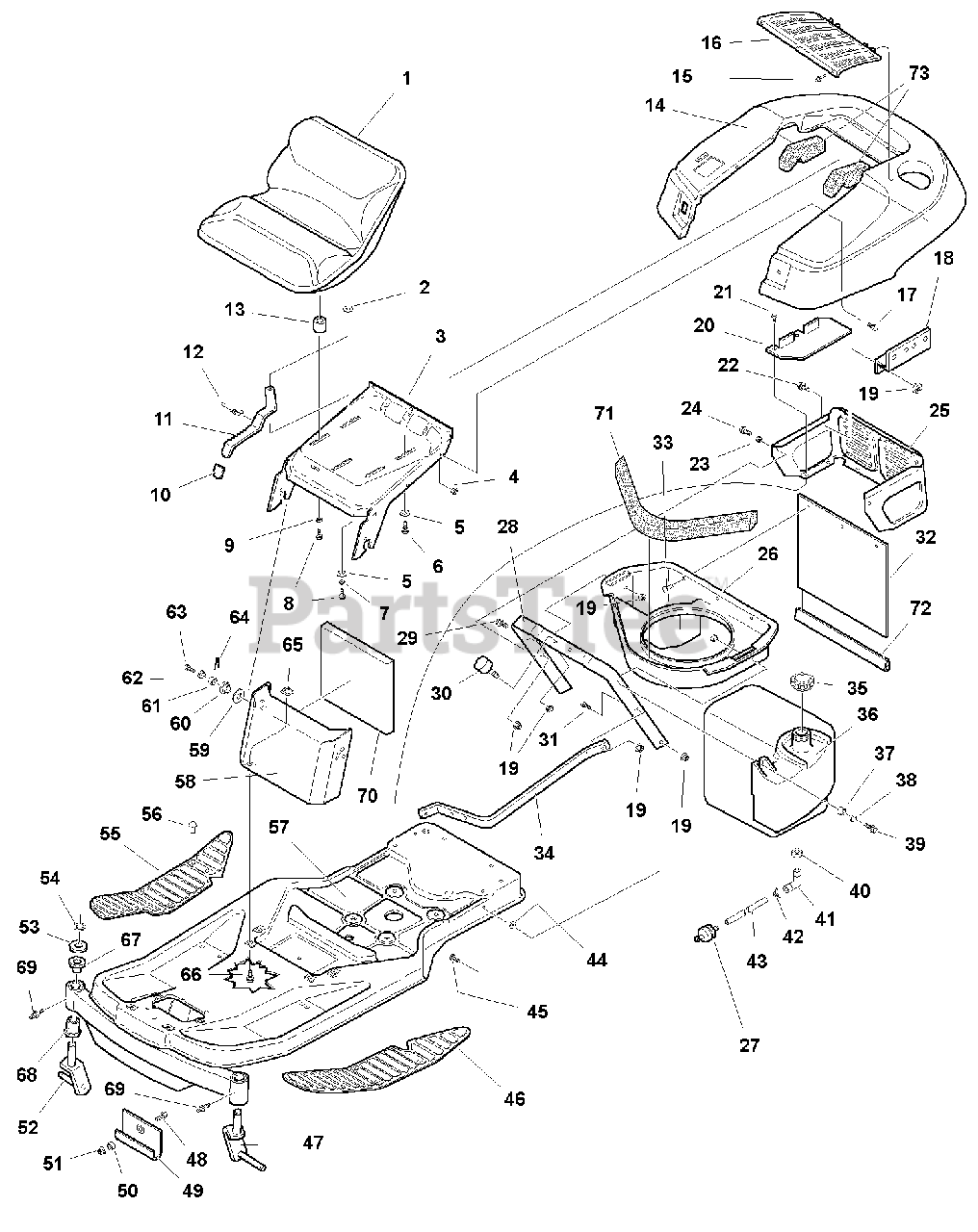

Frame, Body & Fuel System Group - 18HP Models Parts Diagram

  • Title

1

Simplicity 1687020SM

SEAT, High Back, Replacement (**See Footnote)

$

$

Not available

2

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 1725531

SUPPORT, Seat
(Superseded to 1725531ASM)

$455.99

$

In Stock, only 1 left!

0

4

Simplicity 1930642SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 1930591SM

CAPSCREW, Hex Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1708881SM

CAP, Vinyl

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1708509SM

ADJUSTER, Seat

$

$

Not available

12

Simplicity 1667286SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1708511SM

SPACER, Seat Slide

$7.49

$

In Stock, only 2 left!

0

14

Simplicity 1686638SM

DECK, Seat (Orange)
(Superseded to 1687048SM)

$

$

Not available

14

Simplicity 1726649SM

DECK, Seat (Red)
(Superseded to 1734143SM)

$

$

Not available

15

Simplicity 1673320SM

POP, RIVET

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1708504SM

SCREEN
(Superseded to 7102141SM)

$42.99

$

In Stock, only 1 left!

0

17

Simplicity 1960295SM

CAPSCREW, Hex Flange Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1715961SM

SUPPORT, Reservoirs

$14.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 1716027SM

PLATE, Battery

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1925003SM

CAPSCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

22

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1673796SM

SPACER

$24.99

$

Usually ships in 2-12 days

0

24

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1718298SM

SHROUD, Rear

$37.99

$

Usually ships in 2-12 days

0

26

Simplicity 1718317SM

PLENUM, Air Inlet

$78.99

$

Usually ships in 2-12 days

0

27

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

28

Simplicity 1726566SM

SUPPORT, Seat Deck
(Superseded to 1726566ASM)

$119.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

30

Simplicity 1715970SM

BUMPER

$9.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 1718372SM

PANEL, Air Duct

$8.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960381SM

RIVET, Pop

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1717672SM

STRAP, Fuel Tank, Brace

$

$

Not available

35

Simplicity 1714020SM

CAP, Fuel Tank

$31.99

$

In Stock, only 3 left!

0

36

Simplicity 1717673SM

TANK, Fuel

$110.99

$

Usually ships in 2-12 days

0

37

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

38

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1930600SM

CAPSCREW, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

40

Simplicity 1654930SM

BUSHING, Rubber

$7.99

$

In Stock, Qty 20+

0

41

Simplicity 1674231SM

FITTING, Elbow

$

$

Not available

42

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

43

Simplicity 1718678SM

HOSE, 1/4, cut to13" long

$

$

Not available

44

Simplicity 1933988SM

NUT, Push Pal, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

46

Simplicity 1708525SM

FOOTREST PAD, LH

$14.99

$

Usually ships in 2-12 days

0

47

Simplicity 1715999SM

SPINDLE ASSEMBLY, LH
(Superseded to 1726377ASM)

$114.99

$

Usually ships in 2-12 days

0

48

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1716064ASM

HOOK, Mower

$21.99

$

Usually ships in 2-12 days

0

50

Simplicity 1709235SM

BUSHING

$9.99

$

Usually ships in 2-12 days

0

51

Simplicity 1930644SM

NUT, Flange Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

52

Simplicity 1715997SM

SPINDLE ASSEMBLY, RH
(Superseded to 1726378ASM)

$119.99

$

Usually ships in 2-12 days

0

53

Simplicity 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

54

Simplicity 2834712SM

E-RING Retainer

$4.99

$

In Stock, only 2 left!

0

55

Simplicity 1708524SM

FOOTREST PAD, RH

$14.99

$

Usually ships in 2-12 days

0

56

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

57

Simplicity 1660347SM

FRAME ASSEMBLY

$

$

Not available

58

Simplicity 1718376A

PANEL, Front

$

$

Not available

59

Simplicity 2860208SM

WASHER, Plain

$4.99

$

Usually ships in 2-12 days

0

60

Simplicity 1704626SM

SPACER, Hood, Plastic

$6.99

$

In Stock, only 2 left!

0

61

Simplicity 1705249SM

SPACER

$

$

Not available

62

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

63

Simplicity 1960373SM

CAPSCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

64

Simplicity 1704628SM

CLIP

$4.49

$

In Stock, only 4 left!

0

65

Simplicity 1935255SM

NUT, Pal, 5/16-18

$3.49

$

In Stock, only 3 left!

0

66

Simplicity 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

67

Simplicity 1716038SM

BUSHING, Upper

$10.99

$

Usually ships in 2-12 days

0

68

Simplicity 1704867SM

BEARING, Lower

$38.99

$

Usually ships in 2-12 days

0

69

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

70

Simplicity 1718369SM

INSULATION, Seat Panel

$

$

Not available

71

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

72

Simplicity 1719104SM

EDGING

$

$

Not available

73

Simplicity 1719248SM

SEAL, Air Duct

$

$

Not available
