1693219 - Simplicity Legacy Garden Tractor, 20hp Seat & Deck Group Parts Diagram

Legacy Garden Tractor, 20hp

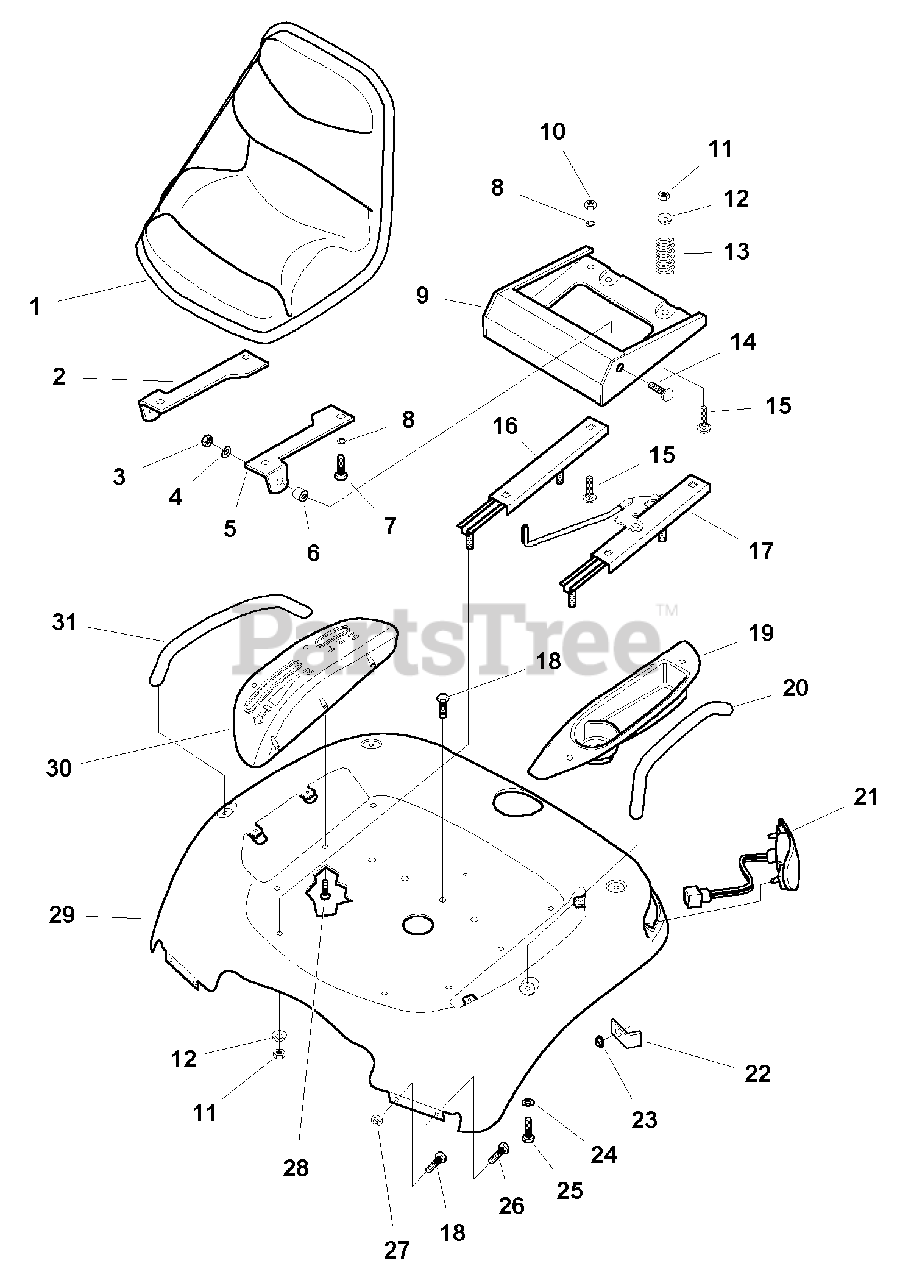

Seat & Deck Group Parts Diagram

  • Title

1

Simplicity 1715912SM

SEAT

$473.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716978SM

SEAT BRACKET, RH

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919439SM

NUT, Hex Nylock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1716979SM

SEAT BRACKET, LH

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

7

Simplicity 1925205SM

CAPSCREW, 1/4-20 x 5/16
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1716977ASM

BRACKET, Seat Support

$122.99

$

Usually ships in 2-12 days

0

10

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1919438SM

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1709256SM

WASHER, Bell

$5.99

$

In Stock, only 2 left!

0

13

Simplicity 1717051SM

SPRING, Seat

$13.99

$

In Stock, Qty 20+

0

14

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

15

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

16

Simplicity 1717009SM

SLIDER ASSEMBLY, RH, Slave

$29.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717068SM

SLIDER ASSEMBLY, LH, Main

$69.99

$

Usually ships in 2-12 days

0

18

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1715913SM

CUPHOLDER POD

$

$

Not available

20

Simplicity 1716335SM

HANDLE, LH

$75.99

$

Usually ships in 2-12 days

0

21

Simplicity 1715915SM

TAIL LIGHT, Assembly

$68.99

$

Usually ships in 2-12 days

0

22

Simplicity 1718048SM

CLIP

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1933988SM

PUSHNUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1920787SM

CAPSCREW, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1931648SM

CAPSCREW, Hex Flange, 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

27

Simplicity 1931277SM

NUT, WhizWhizlock 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1960578SM

CAPSCREW, #10 x 5/16

$

$

Not available

29

Simplicity 1715911SM

SEAT DECK (Orange)
(Superseded to 1760430CYP)

$809.99

$

Usually ships in 2-12 days

0

29

Simplicity 1729527SM

SEAT DECK (Red)

$

$

Not available

30

Simplicity 1715914SM

CONTROL POD

$20.99

$

Usually ships in 2-12 days

0

31

Simplicity 1716336SM

HANDLE, RH

$

$

Not available
