1693074 - Simplicity Regent Lawn Tractor, 14hp Transaxle SERVICE PARTS - Peerless Model MST 205-5158B (Gear Models) Parts Diagram

Regent Lawn Tractor, 14hp

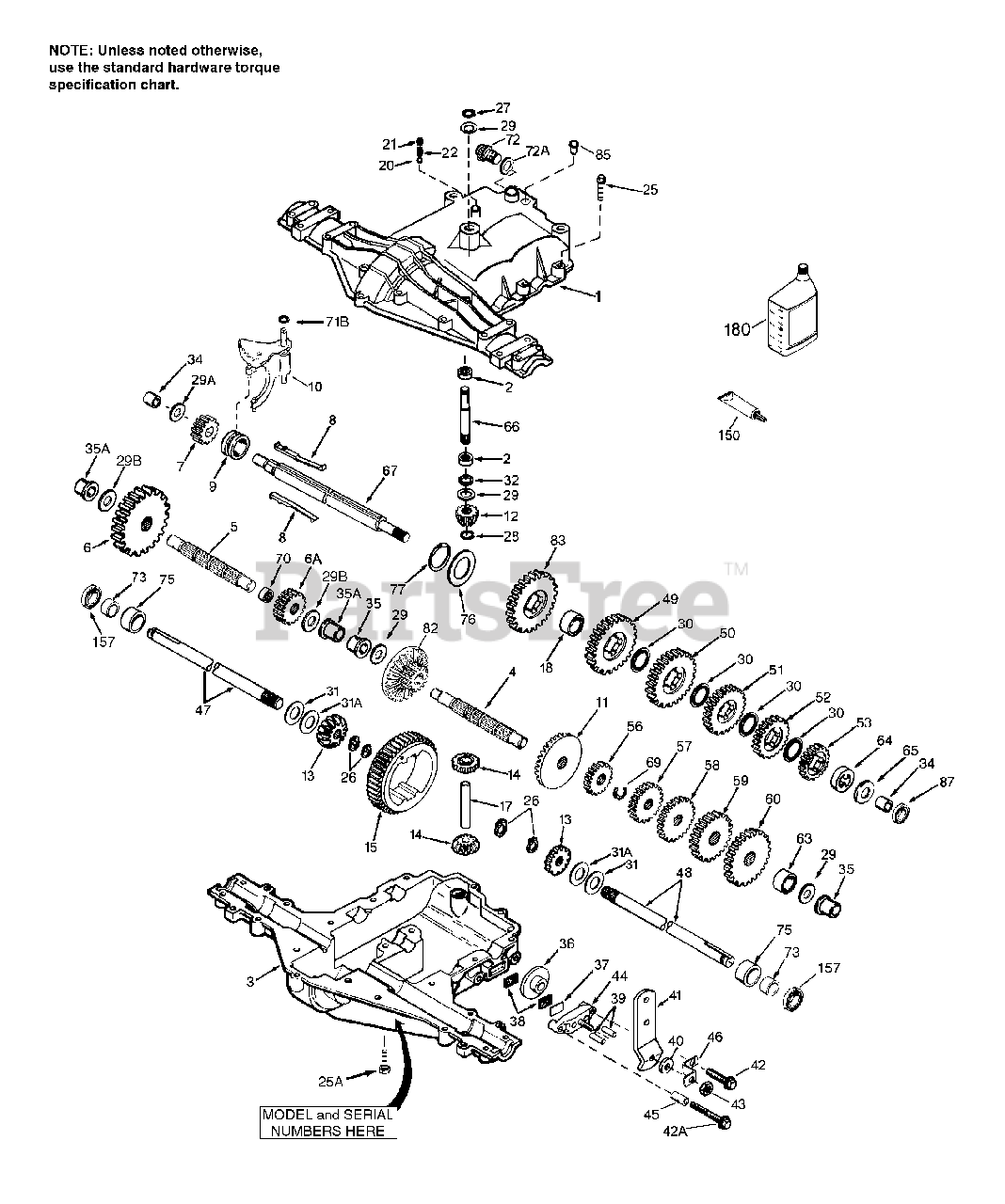

Transaxle SERVICE PARTS - Peerless Model MST 205-5158B (Gear Models) Parts Diagram

  • Title

1

Simplicity 772144

Transaxle Cover

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$15.99

$

Usually ships in 2-12 days

0

2

Simplicity 780086A

Needle Bearing 5/8" ID

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

3

Simplicity 770128

Transaxle Case

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$51.99

$

Usually ships in 2-12 days

0

4

Simplicity 776395

Countershaft

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

5

Simplicity 776409

Output Shaft

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

6

Simplicity 778364

Spur Gear (38 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

6A

Simplicity 778365

Spur Gear (15 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

7

Simplicity 778330

Spur Gear (11 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

8

Simplicity 792136A

Shift Key

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

9

Simplicity 784352

Shift Collar

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

10

Simplicity 784378

Shift Rod & Fork

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

11

Simplicity 778334

Bevel Gear (30 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

12

Simplicity 778309

Input Bevel Pinion (13 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

13

Simplicity 778327

Bevel Gear (16 teeth-steel) (Incl. 14)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

14

Simplicity 778327

Bevel Gear (16 teeth-steel) (Incl. 13)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

15

Simplicity 778312A

Ring Gear (43 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

17

Simplicity 786139

Drive Pin

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

18

Simplicity 786102

Spacer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

20

Simplicity 792077

Ball 5/16" dia.

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

21

Simplicity 792078

Set Screw 3/8-16 x 3/8"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

22

Simplicity 792079

Spring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

25

Simplicity 792073A

Screw 1/4-20 x 1-1/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

25A

Simplicity 792177

Screw 1/4-20 X 1-3/8"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

26

Simplicity 792125

Retaining Ring (pkg of 2)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

27

Simplicity 792035

Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

28

Simplicity 788040

Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

29

Simplicity 780072

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

29A

Simplicity 780160

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

29B

Simplicity 780165

Thrust Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$1.99

$

Usually ships in 2-12 days

0

30

Simplicity 780108

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 780001

Washer (.056 wide) (USE AS NEEDED)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

31A

Simplicity 780195

Flat Washer (.062 wide) (USE AS NEEDED)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

32

Simplicity 788083

Oil Seal 5/8"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

34

Simplicity 780194

Bushing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$15.99

$

Usually ships in 2-12 days

0

35

Simplicity 780193

Flanged Bushing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

35A

Simplicity 780197

Flanged Bushing 3/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

36

Simplicity 790075

Brake Disk

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

37

Simplicity 790007

Brake Pad Plate

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

38

Simplicity 799021

Brake Pad (pkg of 2)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

39

Simplicity 786026

Dowel Pin

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

40

Simplicity 792076A

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

41

Simplicity 790019

Brake Lever
(Superseded to 593432)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$137.99

$

In Stock, Qty 20+

0

42

Simplicity 792073A

Screw 1/4-20 x 1-1/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

42A

Simplicity 792085A

Screw 1/4-20 x 2-1/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

43

Simplicity 792075

Locknut 5/16-24

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

44

Simplicity 790025

Brake Pad Holder

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$24.99

$

Usually ships in 2-12 days

0

45

Simplicity 786066

Spacer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

46

Simplicity 786086

Brake Lever Bracket

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

47

Simplicity 774942

Axle (12-7/32" long)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

48

Simplicity 774869

Axle (16-13/16" long)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

49

Simplicity 778356

Spur Gear (29 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

50

Simplicity 778354

Spur Gear (23 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

51

Simplicity 778352

Spur Gear (19 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

52

Simplicity 778350

Spur Gear (16 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

53

Simplicity 778346

Spur Gear (15 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

56

Simplicity 778355

Spur Gear (11 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

57

Simplicity 778353

Spur Gear (17 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

58

Simplicity 778351

Spur Gear (21 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

59

Simplicity 778349

Spur Gear (24 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

60

Simplicity 778345

Spur Gear (25 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

63

Simplicity 786071

Countershaft Spacer 1-1/8" x 3/8"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

64

Simplicity 786072

Brake Shaft Spacer 1-3/8" X 3/8"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

65

Simplicity 780189

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

66

Simplicity 776394

Input Shaft

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

67

Simplicity 776396

Shifter & Brake Shaft

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

69

Simplicity 792170

Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

70

Simplicity 786178

Spacer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

71B

Simplicity 788092

"O" Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

72A

Simplicity 788091

"O" Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

72

Simplicity 792165

Threaded Plug 9/16-18

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

73

Simplicity 780140

Needle Bearing 3/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

75

Simplicity 786084

Sleeve .999 ID

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

76

Simplicity 780090

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

77

Simplicity 788078A

Inverted Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

82

Simplicity 778333

Bevel & Spur Gear (30 & 13 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

83

Simplicity 778338

Spur Gear (27 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

85

Simplicity 792154

Oil Fill Plug

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

87

Simplicity 788089

Oil Seal 9/16"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

150

Simplicity 788093

Liquid Gasket RTV Silicone

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

157

Simplicity 788088

Oil Seal 3/4"

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available

180

Simplicity 730229A

Gear Oil 80W90

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. Copyright 1997 Tecumseh Products Company. All Rights Reserved.

$

$

Not available
