1693035 - Simplicity Coronet 30" Rear-Engine Riding Mower, 13hp 30" Mower Deck - Housing, Hitch & Height Adjustment Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 13hp

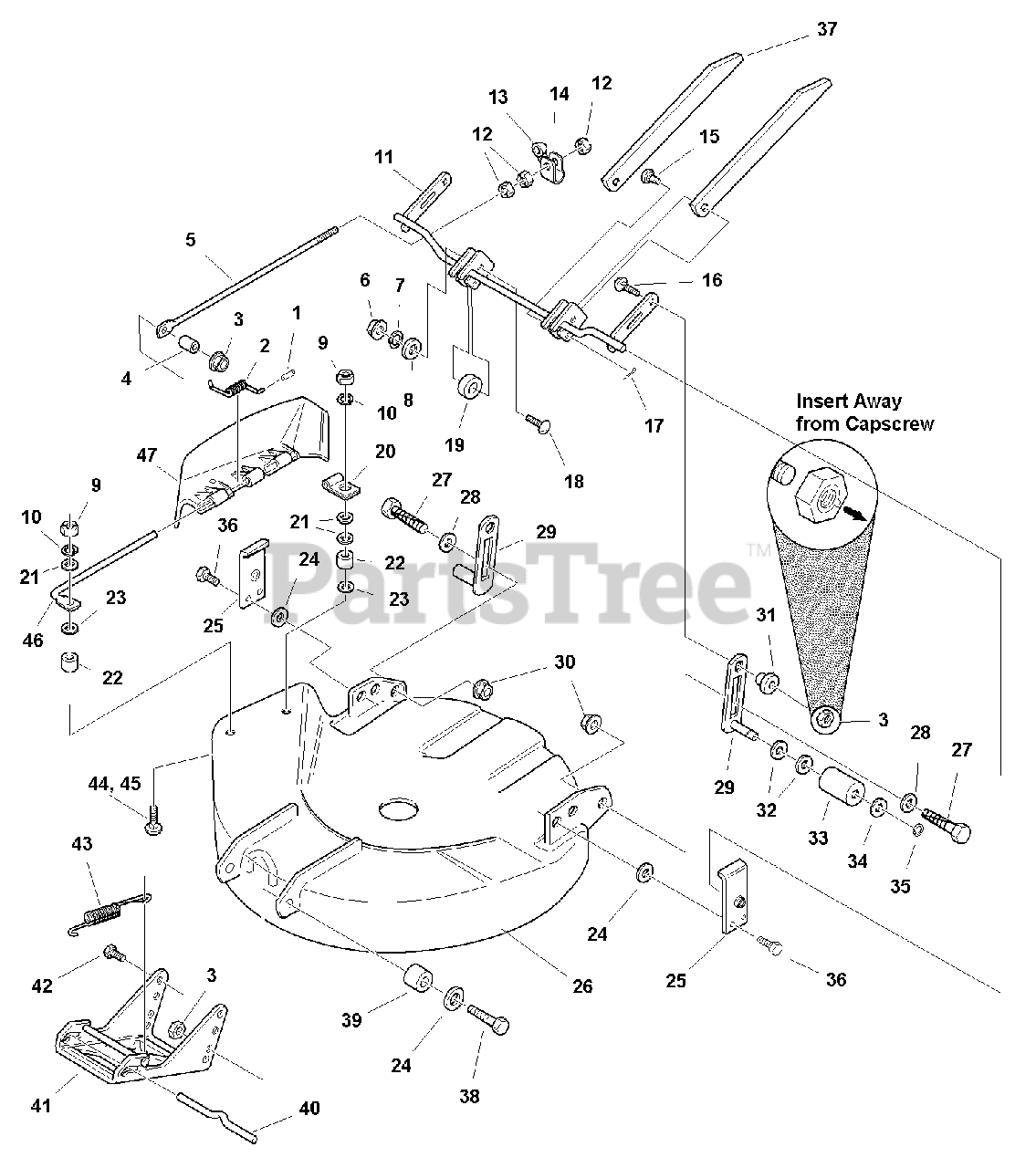

30" Mower Deck - Housing, Hitch & Height Adjustment Parts Diagram

  • Title

1

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0

2

Simplicity 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

3

Simplicity 2860681SM

NUT, Hex, ALUM Lock, 3/8

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 17

0

5

Simplicity 1707300SM

ROD, Adjustment

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0

9

Simplicity 1920397SM

NUT, Hex, 1/4-20 ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1707540ASM

ARM ASSEMBLY, Mower

$86.99

$

Usually ships in 2-12 days

0

12

Simplicity 1913744SM

JAMNUT, Hex, 3/8-16

$4.99

$

In Stock, Qty 19

0

13

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1707280ASM

TRUNNION

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1733568SM

PIN, Locking

$6.99

$

In Stock, only 2 left!

0

16

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

17

Simplicity 1960074SM

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1960223SM

CARRIAGE BOLT, 5/15-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

19

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1921319SM

WASHER, Plain (1 Required for Export)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1700692SM

SPACER (Export)

$45.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1708250ASM

PLATE, Pivot Support

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 1685670SM

HOUSING ASSEMBLY, 30" (Orange)

$706.99

$

Usually ships in 2-12 days

0

26

Simplicity 1687157SM

HOUSING ASSEMBLY, 30" (Red)

$360.99

$

Usually ships in 2-12 days

0

26

Simplicity 1687135SM

HOUSING ASSEMBLY, 30" (Black)

$

$

Not available

27

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1708519ASM

SUPPORT ASSEMBLY, Roller

$176.99

$

Usually ships in 2-12 days

0

30

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

32

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1668487SM

ROLLER

$9.99

$

Usually ships in 2-12 days

0

34

Simplicity 1960020SM

WASHER, 21/32 x 1-1/8 x 1/16

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

36

Simplicity 1664847SM

CAPSCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1709209ASM

BAR, Mower Transport

$

$

Not available

38

Simplicity 1921968SM

CAPSCREW, Hex, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 3 left!

0

39

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

40

Simplicity 1715759SM

ROD, Latch, Hitch

$7.99

$

In Stock, Qty 10

0

41

Simplicity 1707432ASM

HITCH ASSEMBLY

$

$

Not available

42

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

43

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

44

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

45

Simplicity 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4 (Export)
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 1664947SM

ROD, Deflector

$43.99

$

In Stock, only 1 left!

0

47

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 1 left!

0
