16930 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY (MODEL NO. 16940) Parts Diagram

Walk-Behind Mower

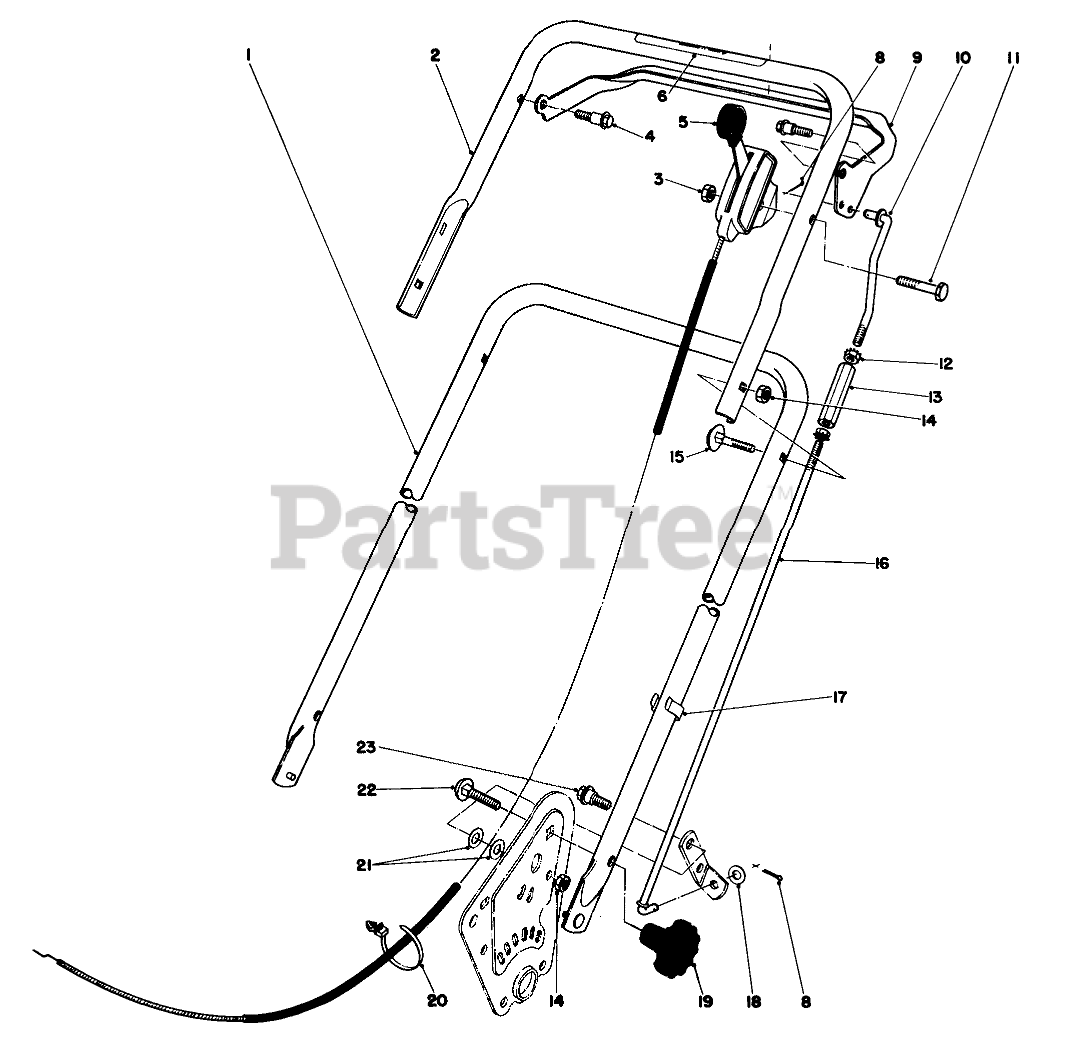

HANDLE ASSEMBLY (MODEL NO. 16940) Parts Diagram

  • Title

1

Toro 38-0811

Lower Handle
(Superseded to 38-0810)

$

$

Not available

2

Toro 38-0621

Upper Handle

$

$

Not available

3

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

4

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$17.99

$

Usually ships in 3-6 days

0

5

Toro 40-5523

Throttle Control

$

$

Not available

6

Toro 40-2940

Danger-Decal

$

$

Not available

8

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 37-4480

Squeeze Lever

$

$

Not available

10

Toro 38-9150

CONTROL ROD LINK

$

$

Not available

11

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

13

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

14

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

15

Toro 6-6330

HANDLE SCREW

$

$

Not available

16

Toro 22-6030

CUTTER CONTROL ROD

$

$

Not available

17

Toro 218-466

CLIP

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

20

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

23

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
