1692966 - Simplicity Regent 38" Lawn Tractor, Indianapolis Colts, 14hp Engine Group - Electric Clutch Parts Diagram

Regent 38" Lawn Tractor, Indianapolis Colts, 14hp

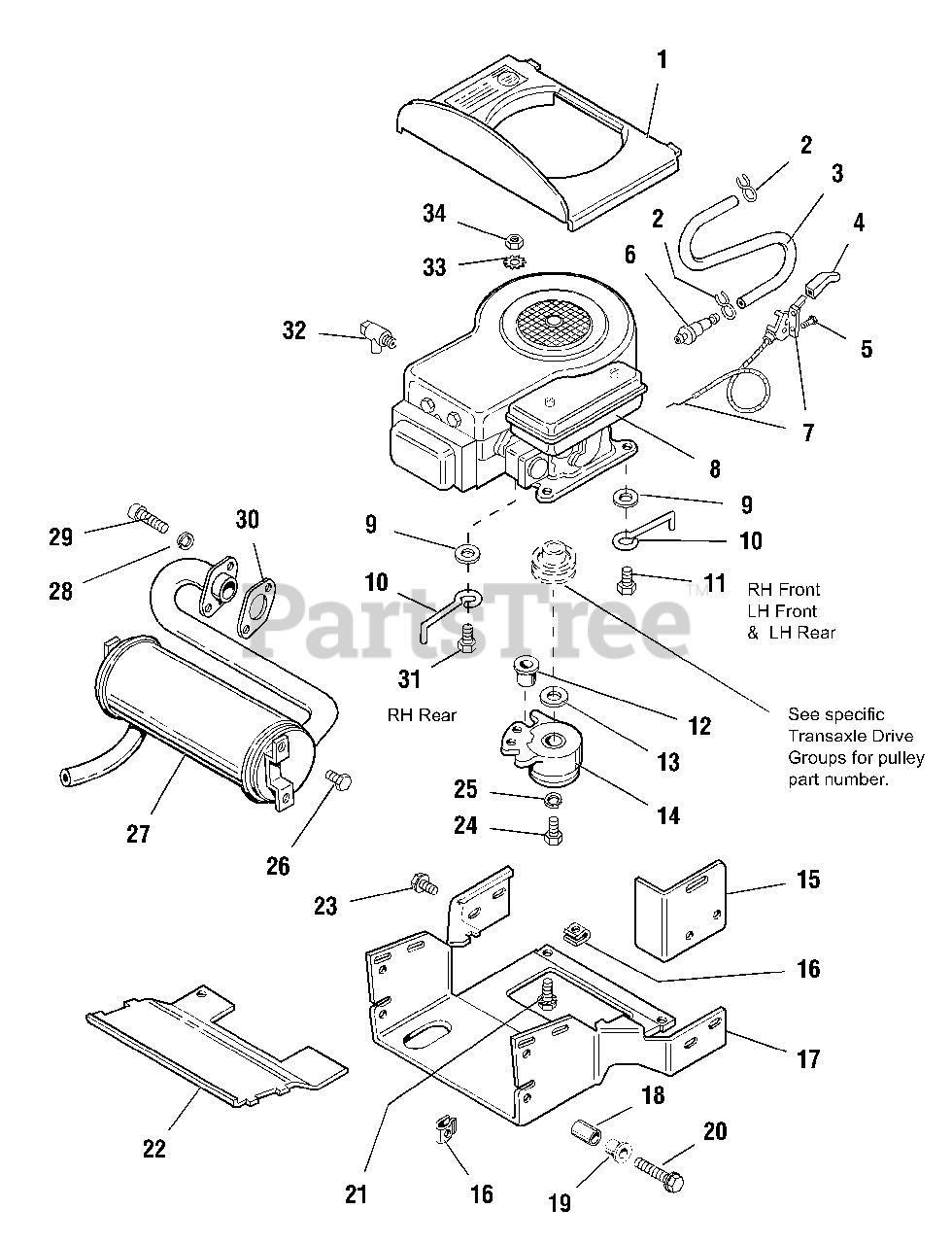

Engine Group - Electric Clutch Parts Diagram

  • Title

1

Simplicity 1714540SM

PLENUM

Note: (Hydro Models)

$

$

Not available

1

Simplicity 1686918SM

PLENUM

Note: (Gear Models)

$158.99

$

Usually ships in 2-12 days

0

2

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718678SM

HOSE, Fuel, Cut to 12" length

Note: (Hydro Models)

$

$

Not available

3

Simplicity 1718678SM

HOSE, Fuel, Cut to 9-1/8" length

Note: (Gear Models)

$

$

Not available

4

Simplicity 1713846SM

KNOB, Throttle Control

$15.99

$

In Stock, only 1 left!

0

5

Simplicity 1960498SM

SCREW, Plastite, 1/4-10 x 5/8

$3.49

$

In Stock, Qty 13

0

6

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 1687058SM

CONTROL ASSY., Throttle

$54.99

$

Usually ships in 2-12 days

0

8

ENGINE, 14HP or 16HP Briggs & Stratton

$

$

Not available

9

Simplicity 1933263SM

WASHER
(Superseded to 703990)

Note: (16HP Units Only)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1704419SM

GUIDE, Belt, Wireform

Note: (16HP Units Only)

$7.49

$

In Stock, only 2 left!

0

11

Simplicity 704010

SCREW, Hex Hd., Taptite, 3/8-16 x 1-1/5

Note: (16HP Hydro Only)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1928635SM

SCREW, Hex Hd., Taptite, 3/8-16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

14

Simplicity 1686882SM

CLUTCH, Electric

$365.99

$

Usually ships in 2-12 days

0

15

Simplicity 1715587SM

PLATE, Muffler Duct

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, only 4 left!

0

17

Simplicity 1713763

DUCT, Muffler, Lower

$

$

Not available

18

Simplicity 1705249SM

SPACER

$

$

Not available

19

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

20

Simplicity 1930595SM

SCREW, Hex, Whiz, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

21

Simplicity 1930591SM

SCREW, Hex, Flange Whiz, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

22

Simplicity 1723086SM

DUCT, Muffler, Upper

$

$

Not available

23

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

24

Simplicity 1960370SM

CAPSCREW, Hex, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1686810SM

MUFFLER ASSY.

$135.99

$

Usually ships in 2-12 days

0

28

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1936228SM

CAPSCREW, Socket Hd., 5/16-18 x 3/4

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

31

Simplicity 704010

SCREW, Hex Hd., Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 2860361SM

SCREW, Hex Hd., Taptite, 3/8-16 x 2.0

Note: (16HP Hydro Only)

$6.49

$

In Stock, only 1 left!

0

32

Simplicity 1708405SM

DRAIN VALVE, Oil

$38.99

$

Usually ships in 2-12 days

0

33

Simplicity 2820427SM

WASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 2816950SM

NUT, Hex, Jam Lock, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0
