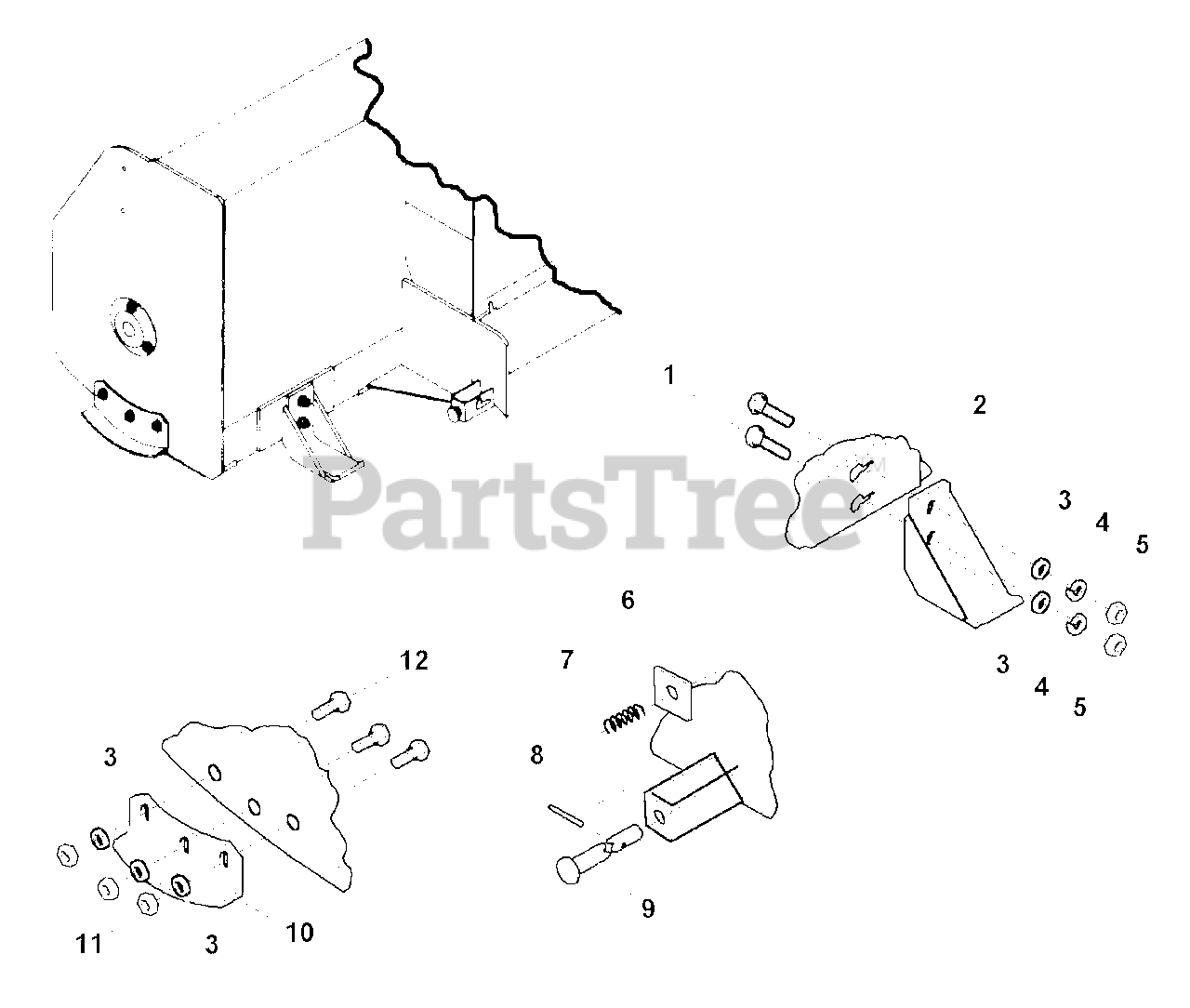

1692942 - Simplicity 47" Snow Thrower Attachment Skid Shoe & Hitch Group (985660 Parts Diagram

47" Snow Thrower Attachment

Skid Shoe & Hitch Group (985660 Parts Diagram

  • Title
1

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 1709656A

SKID SHOE, Snowthrower
(Superseded to 1709656AYP)

$97.99

$

Usually ships in 2-12 days

0

3

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1709661A

WASHER, Shot Pin

$

$

Not available

7

Simplicity 1709660SM

SPRING, Shot Pin

$8.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960587SM

PIN, Roll, 1/4 x 1-1/2

$3.49

$

In Stock, only 1 left!

0

9

$23.99

$

Usually ships in 2-12 days

0

10

$75.99

$

Usually ships in 2-12 days

0

11

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
