1692938 - Simplicity Wide Body Collector Cart Wide Body Cart Collector - Cart Assembly Parts Diagram

Wide Body Collector Cart

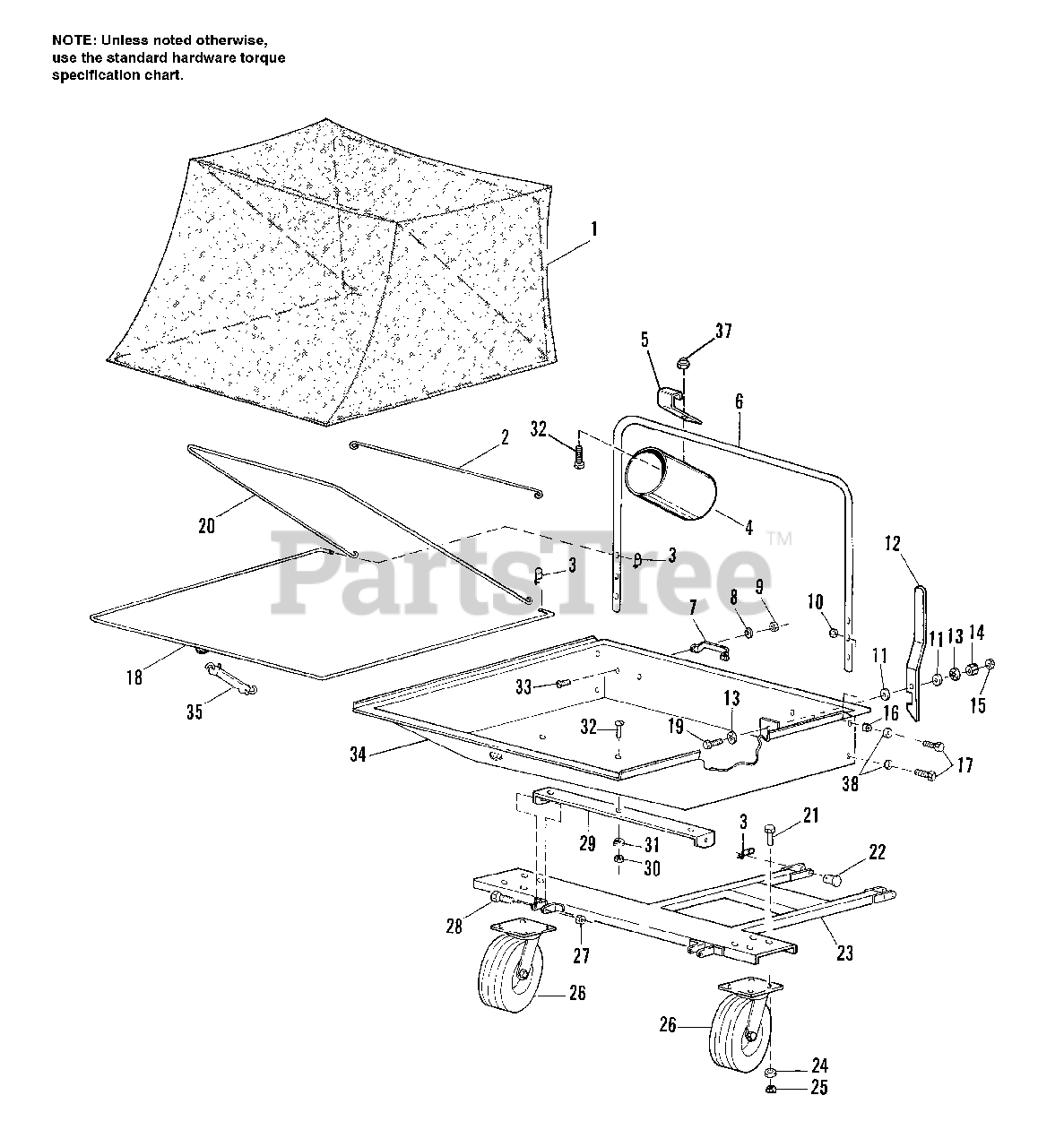

Wide Body Cart Collector - Cart Assembly Parts Diagram

  • Title

1

Simplicity 1726311SM

COVER

$

$

Not available

2

Simplicity 1700763SM

ROD, Straight

$23.99

$

Usually ships in 2-12 days

0

3

Simplicity 2176012SM

CLIP, Hairpin Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1726312SM

SLEEVE, Plastic Connecting

$119.99

$

Usually ships in 2-12 days

0

5

Simplicity 1708099SM

CLAMP, Sleeve

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 1700758SM

TUBE, Support

$213.99

$

Usually ships in 2-12 days

0

7

Simplicity 1700768SM

HANDLE, Lift

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

11

Simplicity 1919326SM

WASHER, 5/16

Note: (Use on model 1691526 only)

$4.49

$

In Stock, Qty 6

0

12

Simplicity 1700765SM

HANDLE, Latch

$53.99

$

Usually ships in 2-12 days

0

13

Simplicity 2177649SM

WASHER, Spring, 5/16

$9.49

$

In Stock, Qty 5

0

14

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 1700267SM

SPACER, Plastic, 5/16

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 1921677SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1700762SM

ROD, Frame

$105.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921977SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

20

Simplicity 1700761SM

ROD, Support

$74.99

$

Usually ships in 2-12 days

0

21

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

22

Simplicity 2102004SM

PIN, 1/2 x 1-1/4

$9.49

$

In Stock, only 2 left!

0

23

Simplicity 1700769SM

FRAME

$421.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1930645SM

NUT, Hex Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Simplicity 1676892SM

WHEEL, Swivel, 410/350-4

$307.99

$

Usually ships in 2-12 days

0

27

Simplicity 1922134SM

NUT, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

28

Simplicity 1921176SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1700767

"U" BRACKET

$

$

Not available

30

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1918249SM

BOLT, Slotted Truss Hd, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1921958SM

CAPSCREW, Hex Hd, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1700757SM

BOX

$655.99

$

Usually ships in 2-12 days

0

35

Simplicity 1700266SM

STRAP, Rubber, 6"

$

$

Not available

?36

Simplicity 1708120SM

DECAL, Max. Cap.

$6.49

$

Usually ships in 2-12 days

0

37

Simplicity 1920397SM

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0
