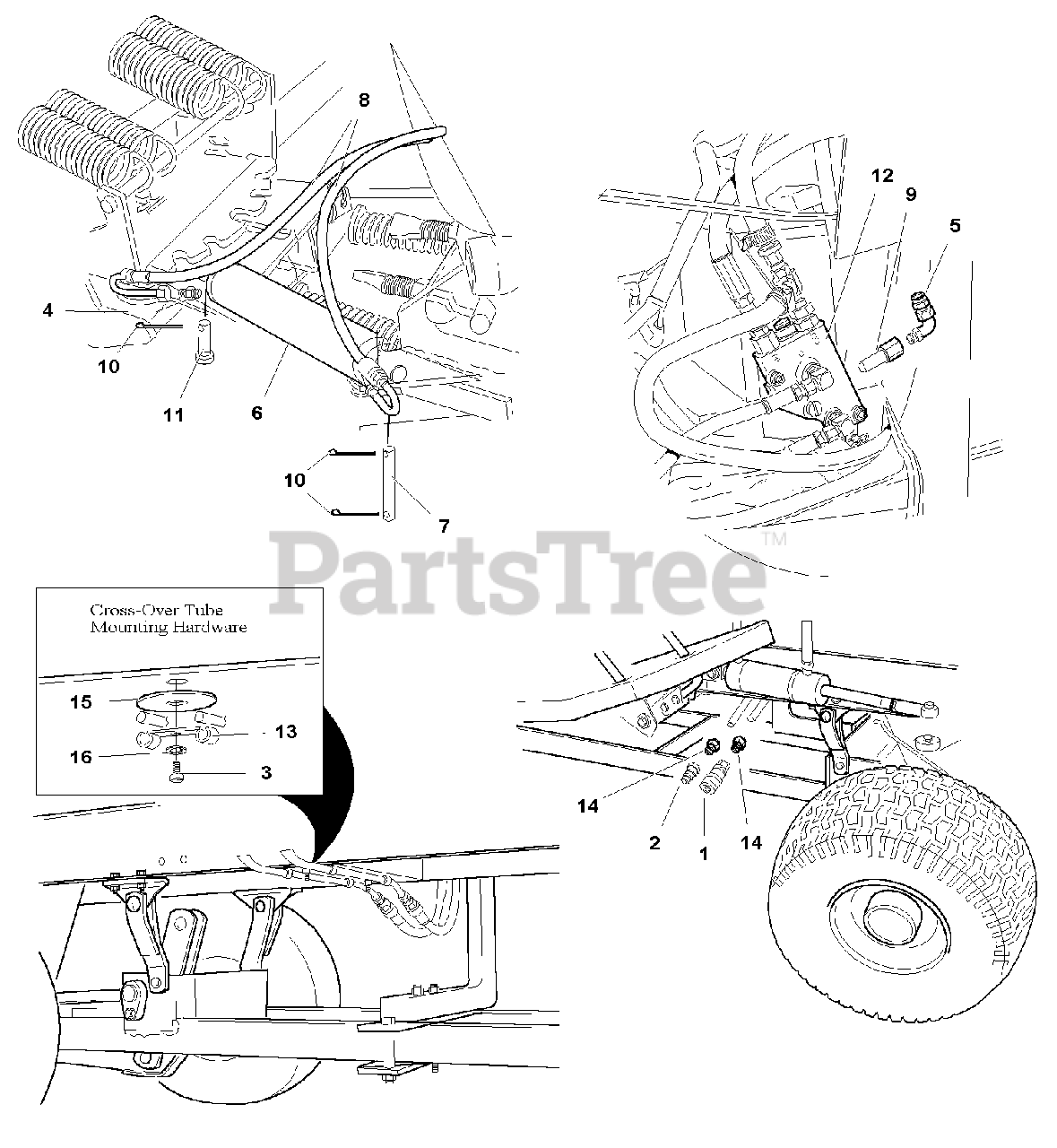

1692925 - Simplicity 60" Hydraulic Angling Dozer Blade Hydraulic Angling Components Group Parts Diagram

60" Hydraulic Angling Dozer Blade

Hydraulic Angling Components Group Parts Diagram

  • Title

1

Simplicity 2173358SM

QUICK CONNECTOR, Female Nose Piece Assembly

$74.99

$

In Stock, only 1 left!

0

2

Simplicity 2173359SM

QUICK CONNECTOR, Male Nose Piece Assembly

$43.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2819171SM

FITTING, Cylinder, Male

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 2822523SM

FITTING, Elbow

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 1677214SM

CYLINDER, Angling

$

$

Not available

7

Simplicity 1700394SM

PIN, Cylinder, 5/8

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 1718590SM

HOSE, Hydraulic, 1/2" x 28"

$

$

Not available

9

Simplicity 1717647SM

FITTING, Pressure Beyond Port

$71.99

$

Usually ships in 2-12 days

0

10

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

11

Simplicity 1960277SM

PIN, Yoke

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 1722971SM

CONTROL VALVE, Single Spool, Power Beyond

$354.99

$

Usually ships in 2-12 days

0

13

Simplicity 1718420SM

CLAMP, Metal Cross Over Tube Retaining

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1718436SM

FITTING, Tube, Male

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1920283SM

WASHER, 5/16

$4.99

$

In Stock, Qty 5

0

16

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
