1692925 - Simplicity 60" Hydraulic Angling Dozer Blade Hitch Group Parts Diagram

60" Hydraulic Angling Dozer Blade

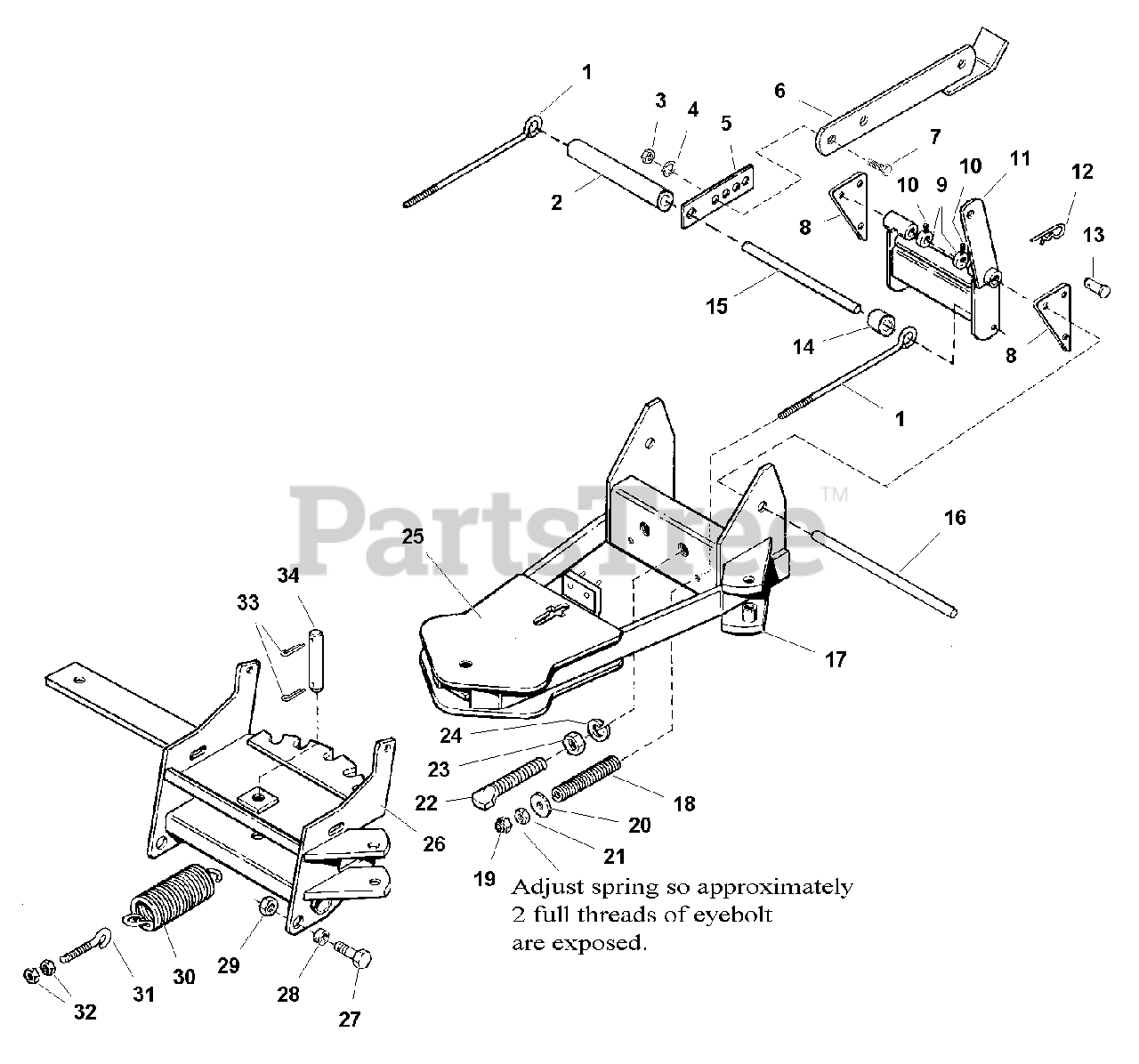

Hitch Group Parts Diagram

  • Title

1

Simplicity 1679055SM

EYEBOLT, 3/8-16

$8.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716492SM

SPACER

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

4

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1716926SM

BAR, Lift, Front
(Superseded to 1716926AYP)

$67.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716920A

LIFT BAR ASSEMBLY
(Superseded to 1716920ASM)

$216.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921525SM

CAPSCREW, Hex Head, 1/2-13 x 1-3/4

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716357SM

ANCHOR, Front
(Superseded to 1716357ASM)

$18.99

$

Usually ships in 2-12 days

0

9

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

$

$

Not available

10

Simplicity 1928721SM

SETSCREW, Square Head, Cup Point, 5/16-18 x 1/2, GR8

$4.99

$

In Stock, only 3 left!

0

11

Simplicity 1675502SM

PIVOT ASSEMBLY, Hitch

$

$

Not available

12

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1960038SM

PIN, Clevis, 5/8 x 2-1/4

$

$

Not available

14

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1716460SM

SHAFT

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1708999SM

SHAFT, Inner

$38.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717557SM

HITCH ASSEMBLY
(Superseded to 1717557ASM)

$598.99

$

Usually ships in 2-12 days

0

18

Simplicity 1675524SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

20

Simplicity 1960071SM

WASHER, 3/8

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 1676959SM

STUD, 3/4-10

$25.99

$

Usually ships in 2-12 days

0

23

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1919332SM

WASHER, Lock, 3/4

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 1717557SM

HITCH ASSEMBLY
(Superseded to 1717557ASM)

$598.99

$

Usually ships in 2-12 days

0

26

Simplicity 1717544SM

FRAME ASSEMBLY

$

$

Not available

27

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1725601SM

SPACER

$19.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922134SM

NUT, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

30

Simplicity 2101126SM

SPRING, Extension

$46.99

$

In Stock, only 1 left!

0

31

Simplicity 2107121SM

EYEBOLT, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

32

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1919314SM

PIN, Cotter 3/16 x 1-1/4

$3.49

$

In Stock, Qty 7

0

34

Simplicity 2174066SM

PIN, Pivot

$44.99

$

Usually ships in 2-12 days

0
