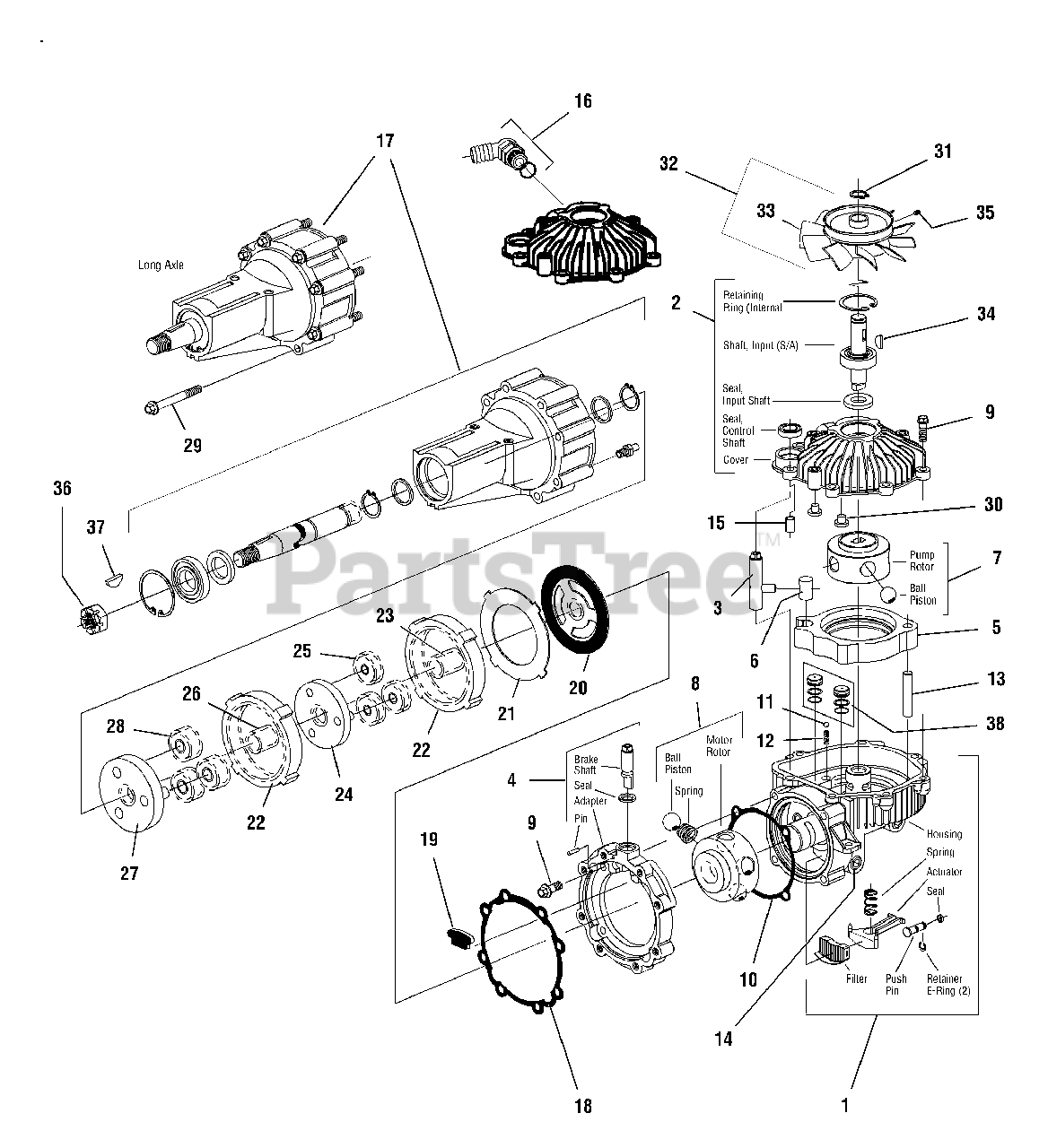

1692906 - Simplicity Zero-Turn Mower, 16hp Transaxle SERVICE PARTS (Eaton 778-010) Parts Diagram

Zero-Turn Mower, 16hp

Transaxle SERVICE PARTS (Eaton 778-010) Parts Diagram

  • Title

1

Simplicity 1716014SM

HOUSING ASSEMBLY,

Note: (Includes Housing, Filter, Actuator, Spring, E-Ring Retainer, Actuator Pin, & Seal)

$854.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716015SM

COVER ASSEMBLY, Input

Note: (Includes Retaining Ring, Shaft, Input Shaft Seal, & Control Shaft Seal)

$276.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716016SM

SHAFT, Control

$35.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716017

ADAPTER/BRAKE ASSEMBLY

Note: (Includes Dowel Pin, Brake Shaft, Adapter, & Seal)

$

$

Not available

5

Simplicity 1716039SM

CAM RING

$225.99

$

Usually ships in 2-12 days

0

6

Simplicity 1702251SM

INSERT

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1716045SM

ROTOR/BALL, Pump

$

$

Not available

8

Simplicity 1716046SM

ROTOR/BALL/SPRING, Motor

$

$

Not available

9

Simplicity 1702268SM

SCREW, Self Tap

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 1716047SM

GASKET

$

$

Not available

11

Simplicity 1702251SM

BALL (Grade 200)

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716049SM

SPRING

$

$

Not available

13

Simplicity 1716050SM

DOWEL

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716051SM

PLUG, Socket Pipe

Note: (These parts may have been replaced with ZT Drive System Update Kit 1686752. See pages "See Drive System Update Kit - 1686752" illustration and parts list)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1716054SM

BUSHING, Dowel

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1669954SM

BARB FITTING (Includes O-Ring)

Note: (These parts may have been replaced with ZT Drive System Update Kit 1686752. See pages "See Drive System Update Kit - 1686752" illustration and parts list)

$27.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716056SM

AXLE HOUSING ASSEMBLY, Tapered

Note: (Includes Axle Shaft, Internal Retaining Ring, Housing, Radial Lip Seal, Ball Bearing, External Retaining Ring, Thrust Washer, & Magnet)

$296.99

$

Usually ships in 2-12 days

0

18

Simplicity 1716057SM

GASKET, Axle Housing

$

$

Not available

19

Simplicity 1708135SM

PAD, Friction

$29.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708136SM

PLATE, Reaction

$26.99

$

Usually ships in 2-12 days

0

21

Simplicity 1708137SM

PLATE, Backup

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 1708139SM

GEAR, Ring 54T

$23.99

$

Usually ships in 2-12 days

0

23

Simplicity 1708138SM

GEAR, First, 18 Teeth

$19.99

$

Usually ships in 2-12 days

0

24

Simplicity 1716058SM

18T PRIMARY CARRIER

$

$

Not available

25

Simplicity 1708140SM

GEAR, First, 18 Teeth

$27.99

$

Usually ships in 2-12 days

0

26

Simplicity 1708142SM

18T SUN GEAR, Second

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 1708144SM

SECONDARY CARRIER

$100.99

$

Usually ships in 2-12 days

0

28

Simplicity 1708143SM

GEAR, Second, 18 Teeth

$23.99

$

Usually ships in 2-12 days

0

29

Simplicity 1708133SM

SCREW, Hex Flange, 1/4-20

$

$

Not available

30

Simplicity 1702258SM

BUTTON

$

$

Not available

31

Simplicity 2827731SM

RING, Retaining (External)

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 1716059SM

FAN & PULLEY ASSEMBLY (Includes Fan, Ref 33 below).

Note: (These parts may have been replaced with ZT Drive System Update Kit 1686752. "See Drive System Update Kit - 1686752" illustration and parts list)

$336.99

$

Usually ships in 2-12 days

0

33

Simplicity 1719482SM

FAN

$

$

Not available

34

Simplicity 2830672SM

KEY, Woodruff (Input Shaft)

$5.49

$

Usually ships in 2-12 days

0

35

Simplicity 1960617SM

SCREW, Hex Socket Set, 1/4-20

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1716060SM

NUT, Slotted Hex (Tapered Shaft)

$16.99

$

In Stock, only 2 left!

0

37

Simplicity 2805126SM

KEY, Woodruff (Tapered Shaft)

$4.99

$

Usually ships in 2-12 days

0

38

PISTON

$

$

Not available

?39

Simplicity 1719442SM

SEAL KIT, Complete

Note: (Not Shown -Includes Ref Nos 10, 18, and additional Seals & Gaskets)

$

$

Not available

Simplicity 1686752SM

ZT Drive System Update Kit

$275.99

$

Usually ships in 2-12 days

0
