1692871 - Simplicity Legacy Garden Tractor, 20hp Engine Group - Liquid Cooled Models Parts Diagram

Legacy Garden Tractor, 20hp

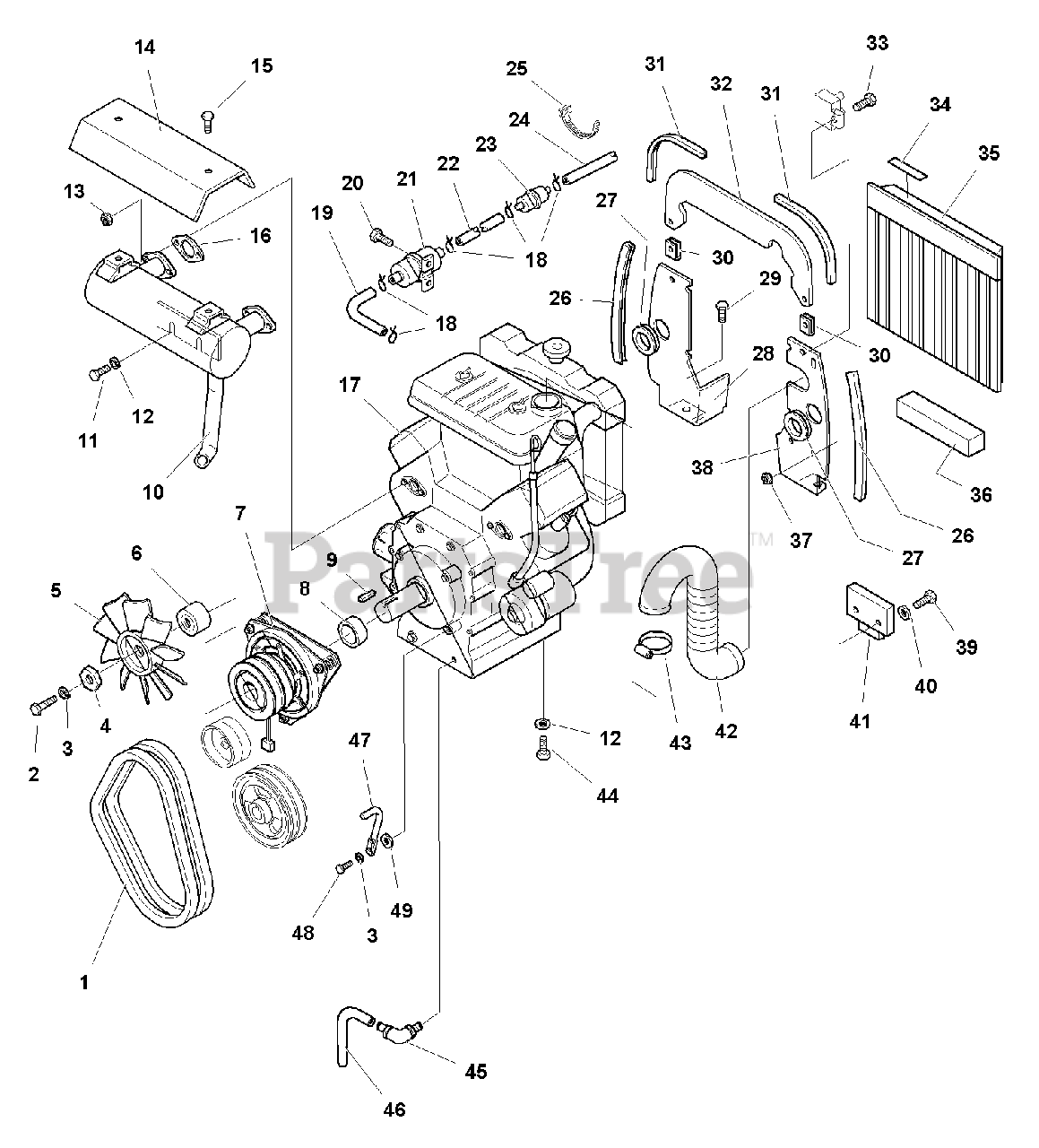

Engine Group - Liquid Cooled Models Parts Diagram

  • Title

1

Simplicity 1716995SM

BELT, P.T.O. (Matched Set of 2 Belts)

$54.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960582SM

CAPSCREW, Hex Head, M10-1.5 x 80mm

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1708264SM

WASHER, Hex, 7/16

$8.99

$

In Stock, Qty 5

0

5

Simplicity 1717070SM

FAN, Electric Clutch

$

$

Not available

6

Simplicity 1717525SM

SPACER, Clutch Fan

$26.99

$

Usually ships in 2-12 days

0

7

Simplicity 1686881SM

ELECTRIC CLUTCH

$535.99

$

Usually ships in 2-12 days

0

8

Simplicity 1717526SM

SPACER, Clutch

$51.99

$

Usually ships in 2-12 days

0

9

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

10

Snapper 1716918SM

MUFFLER

$307.99

$

Usually ships in 2-12 days

0

11

Simplicity 1950018SM

CAPSCREW, Hex Head, M8 - 1.25 x 20mm

$2.99

$

Usually ships in 2-12 days

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1960525SM

NUT, Hex Flange Lock, M6

$2.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708873ASM

HEAT SHIELD

$28.99

$

Usually ships in 2-12 days

0

15

Simplicity 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

16

GASKET, Exhaust Manifold

$

$

Not available

17

ENGINE, 20HP Kawasaki

$

$

Not available

18

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1718678SM

HOSE, Fuel, 60-1/2 Lg (cut to length of 21-3/4)

$

$

Not available

20

Simplicity 1929000SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

21

FUEL PUMP

$

$

Not available

22

Simplicity 1718678SM

HOSE, Fuel, 60-1/2 Lg (cut to length of 51)

$

$

Not available

23

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 1718678SM

HOSE, Fuel, 60-1/2 Lg (cut to length of 12)

$

$

Not available

25

Simplicity 1701011SM

TIE

$5.49

$

In Stock, only 2 left!

0

26

Simplicity 1717496SM

EDGING, Side 12.5

$19.99

$

Usually ships in 2-12 days

0

27

Simplicity 1704862SM

GROMMET

$6.49

$

Usually ships in 2-12 days

0

28

Simplicity 1717494SM

SHIELD, RH

$13.99

$

Usually ships in 2-12 days

0

29

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1960368SM

NUT, PAL, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1717519SM

EDGING, Top 9

$48.99

$

Usually ships in 2-12 days

0

32

Simplicity 1717495SM

SHIELD, Upper

$8.49

$

Usually ships in 2-12 days

0

33

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

34

Simplicity 1717596SM

DECAL, Radiator

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 1717501SM

SCREEN ASSEMBLY

$

$

Not available

36

Simplicity 1717534SM

SEAL, Radiator

$27.99

$

Usually ships in 2-12 days

0

37

Simplicity 1930641SM

NUT, Whizlock,1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1717493SM

SHIELD, LH

$

$

Not available

39

Simplicity 1921960SM

CAPSCREW, Hex Head, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

40

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

VOLTAGE REGULATOR

$

$

Not available

42

Simplicity 1717489SM

HOSE, Air Inlet

$10.99

$

Usually ships in 2-12 days

0

43

HOSE CLAMP

$

$

Not available

44

Simplicity 1960347SM

CAPSCREW, Hex Head, 8mm x 25
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1715649SM

VALVE, Oil Drain

$51.99

$

Usually ships in 2-12 days

0

46

Simplicity 1716321SM

HOSE ASSEMBLY, Return

$34.99

$

Usually ships in 2-12 days

0

47

Simplicity 1717527SM

ROD, Anti Rotation

$

$

Not available

48

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

49

Simplicity 1650506SM

SPACER

$17.99

$

Usually ships in 2-12 days

0
