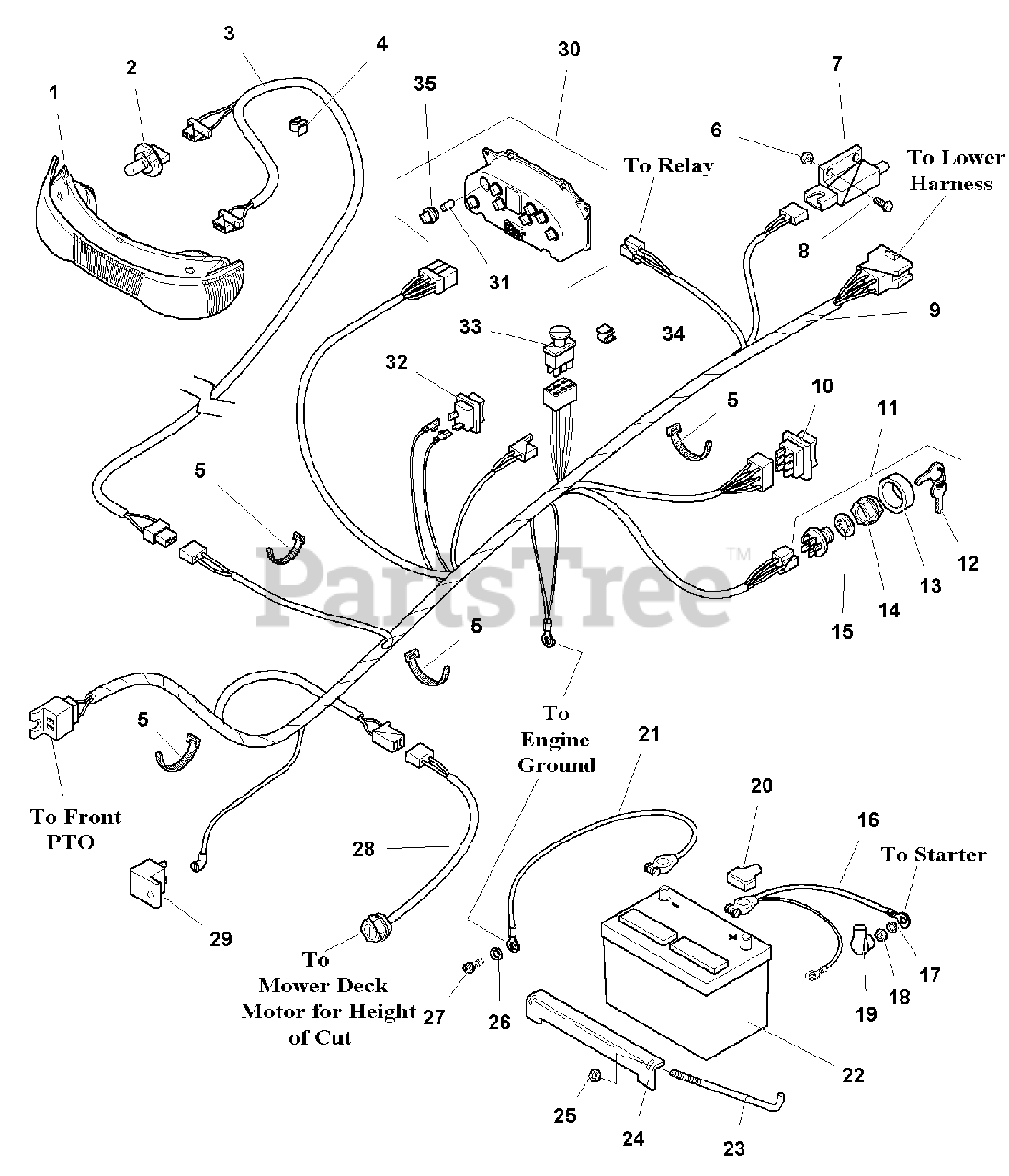

1692871 - Simplicity Legacy Garden Tractor, 20hp Electrical Group - Main Harness - Liquid Cooled Models Parts Diagram

Legacy Garden Tractor, 20hp

Electrical Group - Main Harness - Liquid Cooled Models Parts Diagram

  • Title

1

Simplicity 1715923SM

BEZEL, Headlight

$164.99

$

In Stock, only 1 left!

0

2

Simplicity 1717649SM

BULB, Headlight, Halogen

$60.99

$

In Stock, only 2 left!

0

3

Simplicity 1716198SM

HARNESS, Headlight

$

$

Not available

4

Simplicity 2830222

CLIP

$

$

Not available

5

Simplicity 1701011SM

TIE

$5.49

$

In Stock, only 2 left!

0

6

Simplicity 1960591SM

NUT, KEPS Lock, #10-24

$3.49

$

In Stock, Qty 8

0

7

Simplicity 1701521SM

SWITCH, Interlock (NO/NO), Brake Pedal
(Superseded to 5022438SM)

$20.99

$

In Stock, Qty 6

0

8

Simplicity 1933737SM

CAPSCREW, #10-24 x 5/8

$3.49

$

In Stock, only 2 left!

0

9

Simplicity 1716200SM

HARNESS, Main

$

$

Not available

10

Simplicity 1716329SM

SWITCH, Mower Height Adjust

$47.99

$

In Stock, Qty 19

0

11

Simplicity 1686734SM

ASSEMBLY, Switch & Key (Includes Ref. Nos. 12 -15)

$32.99

$

In Stock, Qty 20+

0

12

Simplicity 1717163SM

KEYS (Set of 2)

$8.99

$

In Stock, Qty 20+

0

13

Simplicity 1717550SM

COVER, Key Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

14

Simplicity 1717549SM

NUT, Hex Flange, 5/8
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 1717001SM

CABLE, Battery to Starter

$

$

Not available

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2860433SM

NUT, Hex Jam, M8-1.25, Yellow

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1713535SM

COVER, Starter Terminal

$5.99

$

In Stock, only 1 left!

0

20

Simplicity 1713534SM

COVER, Positive Battery Terminal

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1716333SM

CABLE, Battery to Ground

$42.99

$

Usually ships in 2-12 days

0

22

Simplicity 1686714SM

BATTERY (500 CCA)

$

$

Not available

23

Simplicity 1716945SM

ROD, Battery Hold Down

$

$

Not available

24

Simplicity 1718596ASM

BRACKET, Battery

$36.99

$

Usually ships in 2-12 days

0

25

Simplicity 1920397SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 2820427SM

LOCKWASHER, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 2822586SM

CAPSCREW, 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

28

Simplicity 1716987SM

HARNESS, Power Outlet

$91.99

$

Usually ships in 2-12 days

0

29

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

30

Simplicity 1716976SM

PANEL, Instrument (Includes Bulbs & Bulb Holders)

$

$

Not available

31

Simplicity 1717634SM

BULB, Instrument Panel

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 1716951SM

SWITCH, Headlights

$21.99

$

In Stock, Qty 6

0

33

Simplicity 1716332SM

SWITCH, Front P.T.O.
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

34

Simplicity 2172434SM

CLIP

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1722061SM

HOLDER, Bulb

$

$

Not available
