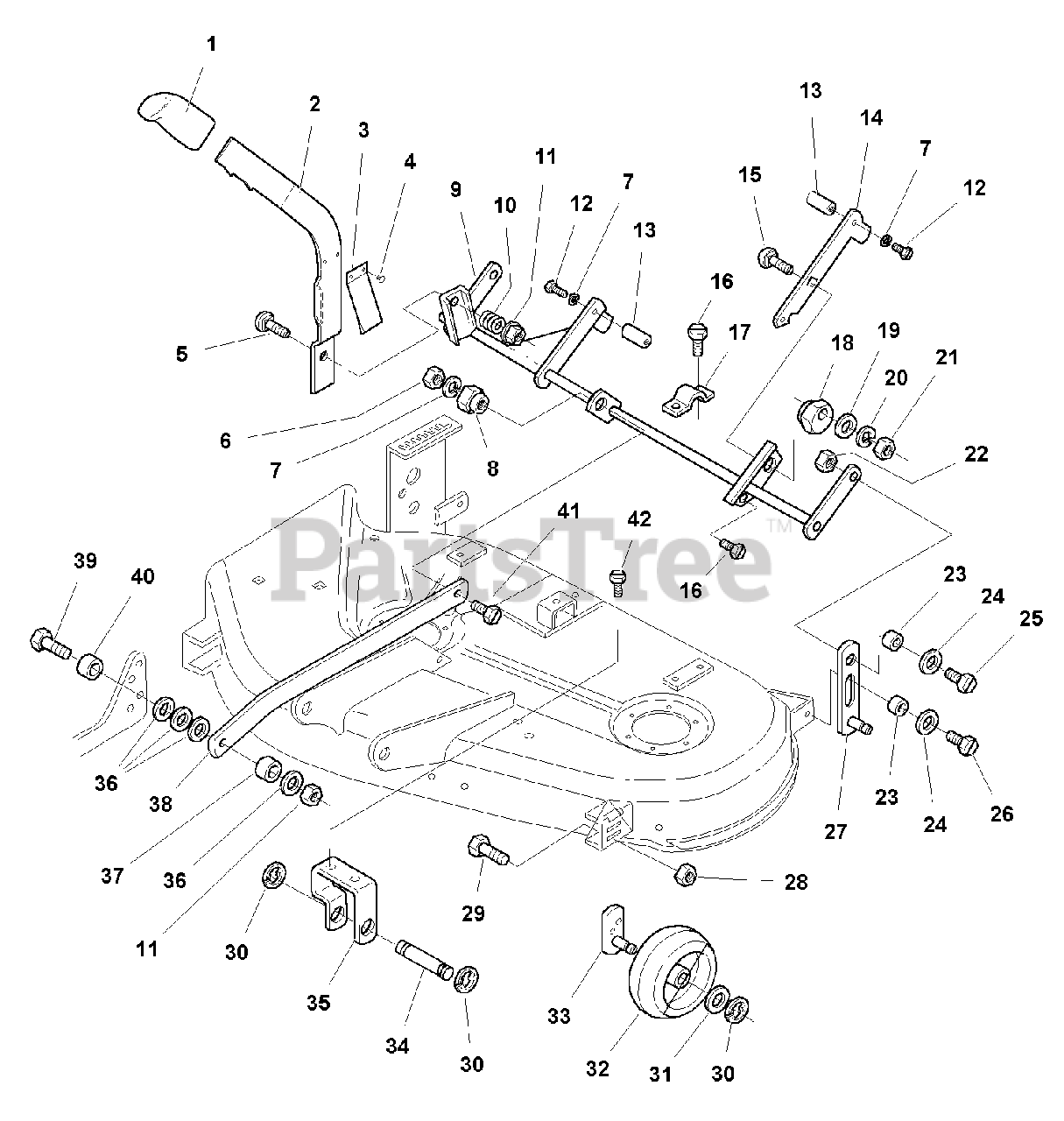

1692861 - Simplicity 38" Zero-Turn Mower, 14hp 38" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

38" Zero-Turn Mower, 14hp

38" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Snapper 1714876SM

GRIP

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1717658ASM

ARM, Height Adjust (Includes Ref. Nos. 3 & 4)

$113.99

$

Usually ships in 2-12 days

0

3

Snapper 1723504SM

SPRING

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 7

0

6

Simplicity 1916950SM

NUT, Hex, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 17

0

9

Simplicity 1716030SM

ROCKER ARM ASSEMBLY

$

$

Not available

10

Simplicity 1714263SM

SPRING

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 1930645SM

NUT, Flange Lock, 3/8
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Simplicity 1716010SM

SUPPORT, Mower

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717670SM

ARM ASSEMBLY, Rear Adjusting
(Superseded to 1717670ASM)

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

16

Simplicity 1960594SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 7/8

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 1714879SM

ECCENTRIC

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1924874SM

WASHER
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1923362SM

NUT, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 1 left!

0

24

Simplicity 1960044SM

WASHER

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

26

Simplicity 1960373SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1714877ASM

ARM ASSEMBLY

$80.99

$

Usually ships in 2-12 days

0

28

Simplicity 1930642SM

NUT, Flanged 2-Way Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

29

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

30

Simplicity 2158399SM

E-RING, 1/2
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1714760SM

WHEEL, Gauge

$6.49

$

In Stock, Qty 20+

0

33

Simplicity 1716020ASM

ARM ASSEMBLY, Fixed

$32.99

$

Usually ships in 2-12 days

0

34

Simplicity 1714882SM

SHAFT, Gauge Wheel

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 1714881SM

BRACKET, Gauge Wheel

$9.49

$

Usually ships in 2-12 days

0

36

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1716023SM

ARM, Pitch

$11.99

$

Usually ships in 2-12 days

0

39

Simplicity 1923701SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1715024SM

SPACER

$8.49

$

In Stock, only 1 left!

0

41

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

42

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
